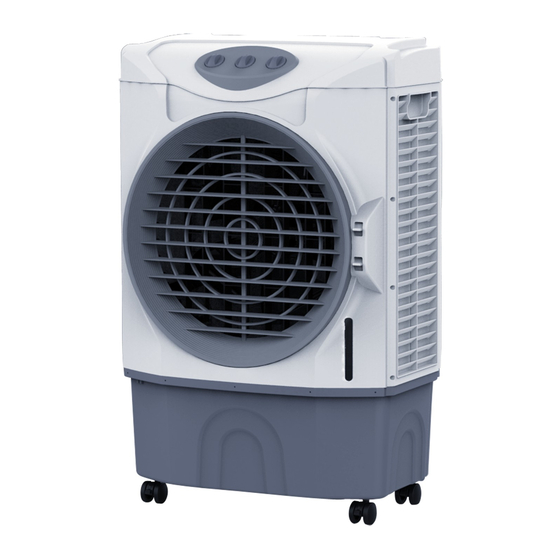

- Page 1 USER MANUAL Thank you for choosing ElectriQ Please read this user manual before using this innovative Air Cooler and keep it safe for future reference. Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals Page 1 of 10...
-
Page 2: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ……………………………….. 2 FEATURES AND OPERATION ……………….………..3 PARTS LIST …………………………………………………. 4. INSTALLATION …………………………………………………. 4 CONTROL PANEL AND SETTINGS …..…………………. 6 MAINTENANCE ……………………………………………… 7 TROUBLE SHOOTING …………………………………. …. 8 APPENDIX AND TECHNICAL DATA ……………………. Page 2 of 10... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! Carefully read the instructions before operating the unit • This appliance is for indoor use only. Any outdoor use must be supervised and avoiding water • spraying or ingress. Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. •... -
Page 4: Features And Operation
FEATURES Air Cooler, humidifier and air cleaner great in well ventilated large rooms and commercial spaces Very powerful air throw, perfect for industrial spot cooling Ideal for large areas, warehouses, dining rooms, exhibition rooms, patios, terraces, restaurants, temporary outdoor events, marquees and more Alternative spot cooling solution for rooms and spaces which cannot be sealed or traditionally air conditioned 3 fan speeds and oscillation setting for improved air flow: low, medium, high speed for best balance... -
Page 5: Parts List
6. Castors 13. Back honeycomb panel 7. Horizontal louvers 14. Power cord and plug 8. Water level indicator 15. Rear grill removal screws Arctic-Plus 1. Control panel 8. Water level indicator 2. Handle 9. Water tank 3. Left honeycomb panel 10. -
Page 6: Installation
Note: If you want to remove the water tank, please pull out after unit has been powered-off for 2 minutes. CONTROL PANEL AND SETTINGS ElectrIQ Arctic Control Panel Cooler ON / OFF: Turn the knob to the ON position to turn the unit on and start the cooling •... -
Page 7: Maintenance
MAINTENANCE Cleaning ATTENTION: Please shut off the unit and unplug from the mains before cleaning or performing any maintenance. Cleaning the surface Clean the plastic housing with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 8: Troubleshooting
Troubleshooting Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm. Issue Possible Reason Solution No power 1. Power cord is unconnected 1. Connect the power cord 2. Honeycomb filter support is not 2. -
Page 9: Appendix And Technical Data
Please contact the local council for details of your local household waste recycling centres. TECHNICAL DATA: Evaporative Air Cooler Arctic Arctic-Plus Water Tank 48 Litres 60 Litres Rated Input 140 Watt 220Watt... - Page 10 ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Is the unit plugged into the mains? 2.
