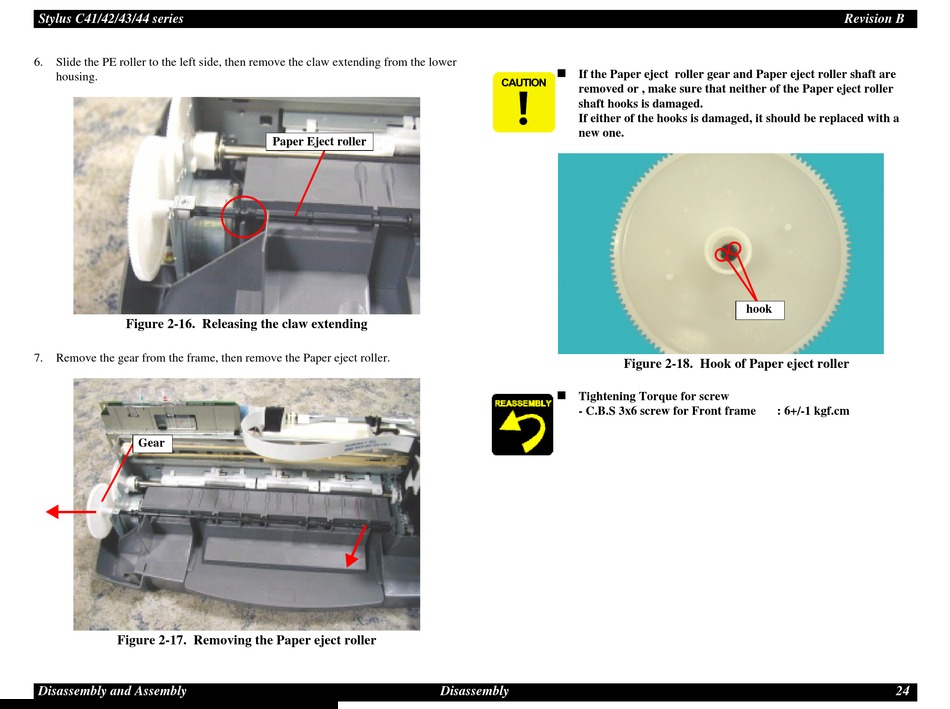

Stylus C41/42/43/44 series
6.
Slide the PE roller to the left side, then remove the claw extending from the lower
housing.
Figure 2-16. Releasing the claw extending
7.
Remove the gear from the frame, then remove the Paper eject roller.
Gear
Figure 2-17. Removing the Paper eject roller
Disassembly and Assembly
Paper Eject roller
Disassembly
T
If the Paper eject roller gear and Paper eject roller shaft are
C A U T I O N
removed or , make sure that neither of the Paper eject roller
shaft hooks is damaged.
If either of the hooks is damaged, it should be replaced with a
new one.
Figure 2-18. Hook of Paper eject roller
T
Tightening Torque for screw
- C.B.S 3x6 screw for Front frame
Revision B
hook
: 6+/-1 kgf.cm
24
