CONTACT TEMPERATURE MEASUREMENTS

1. Set the function switch to the black Type K ºF

or ºC position.

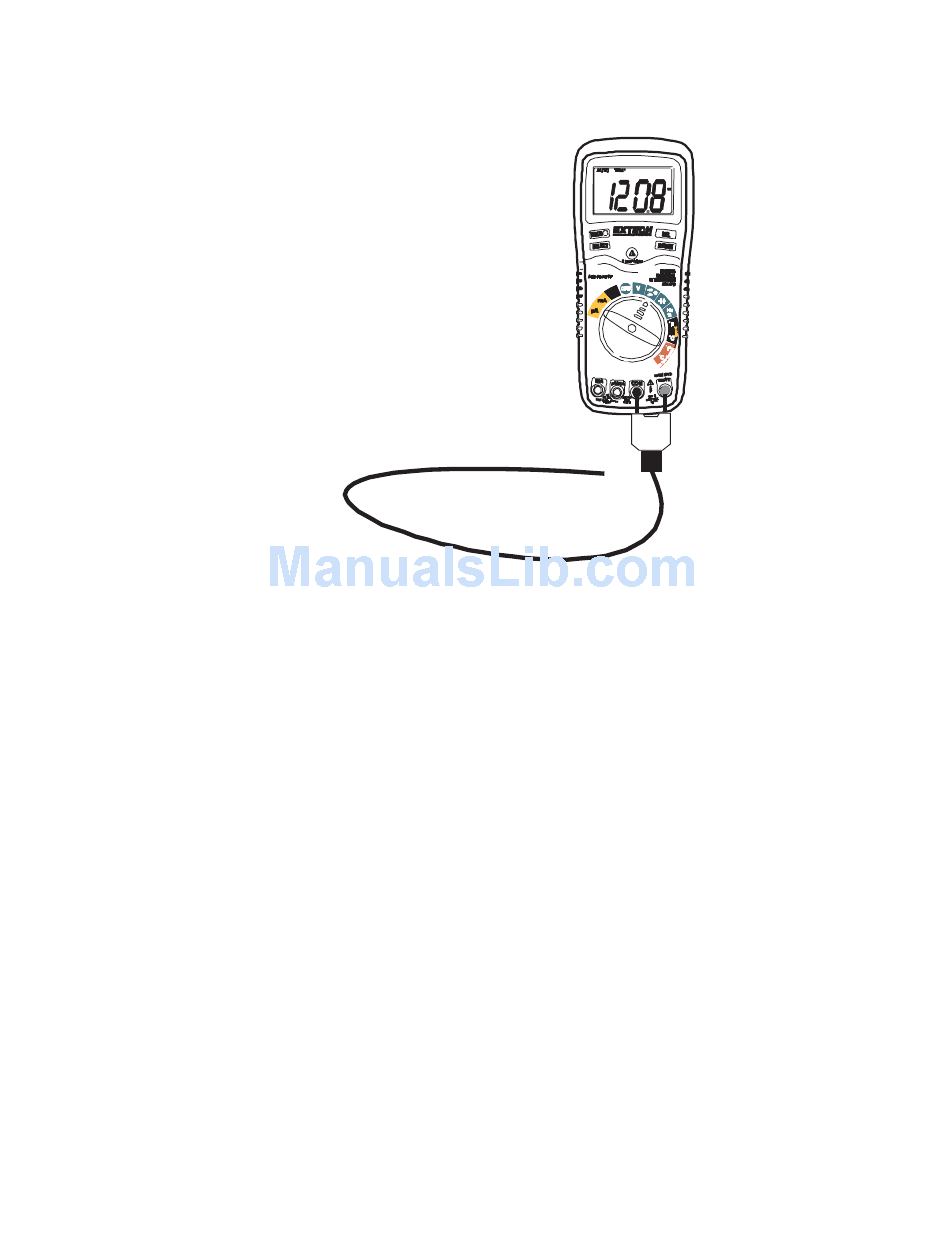

2. Insert the Temperature Probe into the input

jacks, making sure to observe the correct

polarity.

3. Touch the Temperature Probe head to the

part whose temperature you wish to measure.

Keep the probe touching the part under test

until the reading stabilizes (about 30 seconds).

4. Read the temperature in the display.

Note: The temperature probe is fitted with a type

K mini connector. A mini connector to banana

connector adaptor is supplied

for connection to

the input banana

jacks.
