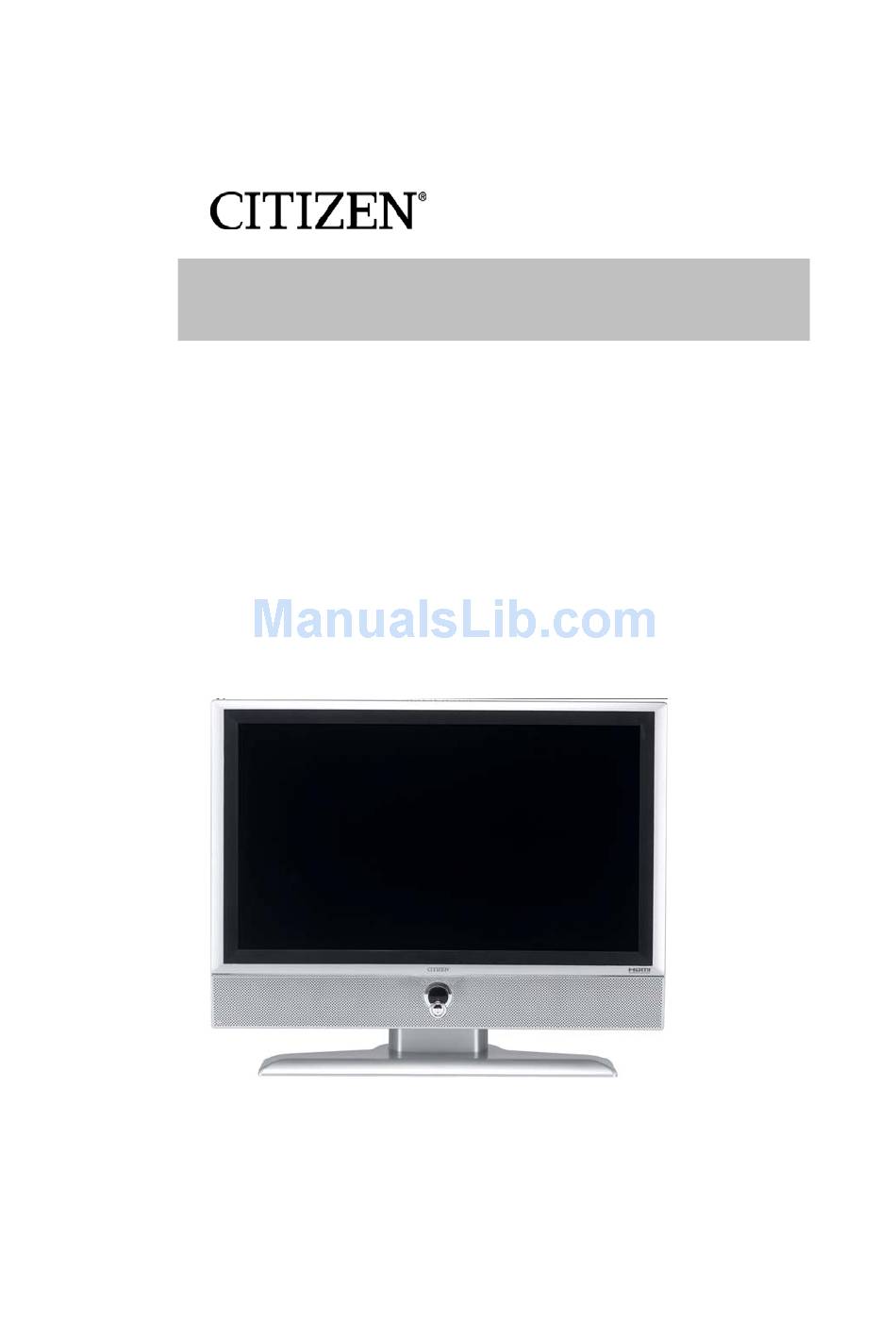

- Page 1 C32604HD 32 Inch LCD Television • High Resolution 1366 x 768 • "U-VM" Detection & Recovery • Di²-E Technology • HDMI (High-Definition Multimedia Interface) USER MANUAL www.citizen-electronics.ca...
-
Page 2: Safety Instructions
Explanation of WARNING Symbols Dangerous Voltage: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of dangerous voltage within the inside of the product that may be of sufficient level to constitute a risk of electric shock. - Page 3 17) Do not expose your LCD TV to dripping or splashing, and do not place objects filled with liquids on it. 18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the back panel of the unit. 19) This product is only to perform the useful function of entertainment and visual display tasks are excluded.
-
Page 4: Table Of Contents
ADVANCED OPERATION—OSD MENU/ REMOTE CONTROL........11 Picture Menu ......................11 Sound Menu ......................11 Setup Menu ......................12 TV-Channel Menu..................... 15 PC Menu........................16 TECHNICAL SPECIFICATION ..................17 SAFETY PRECAUTIONS ....................18 CARE AND MAINTENANCE ................... 19 TROUBLESHOOTING..................... 19 CITIZEN WARRANTY ..................... 20... -
Page 5: Accessories
ACCESSORIES Thank you for purchasing this LCD-TV. This LCD-TV package comes with: LCD TV User’s Guide book Remote control Battery AAA x 2 Power Cord HDMI Cable RCA A/V Cable... -
Page 6: Front Panel Buttons
FRONT PANEL BUTTONS Volume Down (decrease volume) Volume Up (increase volume) On Screen Display Menu On/Off Scroll Down (Channel down) Scroll Up (Channel Up) Enter Power ON/OFF Remote Control Receiver Power LED Indicator... -
Page 7: Back Panel Buttons
BACK PANEL BUTTONS D E F G H I J Power Input (AC Input) HDMI Input Terminal (19 pin) VGA (15 pin) Signal Input from Computer YPbPr / HD Component Video Input S-Video Input Composite Video input Audio Input for VGA (PC Sound Card) Audio Input for YPbPr or HD Component (left/ right) Audio Input for AV or S-Video (left/right) Audio Output (left/right) -
Page 8: Remote Control
REMOTE CONTROL... - Page 9 Remote control button function as follows: Power ON/OFF POWER MTS (Multi-Channel TV Sound) select Display the current information INFO Select situation mode for sound SOUND Set TV Sleep timer SLEEP Freeze picture FREEZE Select channel numbers below 100 0~9 NUMBER Select channel numbers 100 and above Adjust volume up or down + VOL -...
-
Page 10: Installation
INSTALLATION Connecting RF antenna or Cable TV Wire Make sure the power is OFF before installing your LCD TV. Connect the LCD TV to a TV antenna wire or cable/satellite box with 75-ohm coaxial cable. Preset the TV channels into memory with AUTO SCAN function (see page 14) when using an antenna or cable TV system without a cable connecter box. - Page 11 2) With S-Video cable: S-Video Cable (not supplied) VCD or DVD Player Audio in Cable (not supplied) 3) With YPbPr cable: YPbPr Cable (not supplied) VCD or DVD Player Audio in Cable (not supplied) 4) With HDMI cable: VCD or DVD Player (DVD Player should have an HDMI Output terminal)
-
Page 12: Connecting To A Computer
Connecting to a computer Connect the VGA cable from the VGA output of your computer to the VGA terminal input of your LCD TV. Also, connect the Audio In cable (green) from the audio output of your computer to the audio input terminal (green) of your LCD TV. -
Page 13: Basic Operation
BASIC OPERATION To operate your LCD TV, you may use the TV remote control or upper panel buttons to select the input source, change channels, or adjust volume. Turning on the LCD TV Before using the LCD TV: 1. Ensure all external equipment is properly connected. 2. -
Page 14: Using Osd Menu
Aspect Ratio Select Repeatedly press the WIDE key to select the image sizes between Full, Zoom1, Zoom2, Normal, or Panorama. Freeze Picture Press the FREEZE key to freeze the picture. However, the sound still continues. Using the OSD Menu You are able to use the On Screen Display (OSD) menus to adjust various settings by using your remote control or menu buttons on the top of the LCD TV. -
Page 15: Advanced Operation-Osd Menu/ Remote Control
ADVANCED OPERATION—OSD MENU / REMOTE CONTROL Picture Menu — Adjusting picture quality and status This is active in TV / AV / S-VIDEO / YPbPr / HDMI mode. When the input source is TV: When the input source is other mode: Contrast: To adjust the video contrast. -
Page 16: Setup Menu
Sound Mode: To select the sound mode between User, Standard, Movie, and Music. Bass: To adjust the bass. (This is only available when “User” is selected in the sound mode) Treble: To adjust the treble. (This is only available when “User” is selected in the sound mode) Balance: To adjust left and right audio balance. - Page 17 Input: Use ◄► to select the input source between TV, AV, SVIDEO, YPbPr, PC, and HDMI. Language: To select the OSD language. (English, French or Spanish) OSD Time-Out: To setup the display time on the OSD. (OFF, 15, 30, 45, and 60 seconds) Sleep: Press ◄►...
- Page 18 TV-G, TV-PG, TV-14, TV-MA. Use the ENTER button to block or unblock the ratings, and use MENU to exit. All children Parental guidance suggested TV-Y TV-PG Directed to older children: this Parents strongly cautioned: this TV-Y7 TV-14 program is designed for children program contains some material that age 7 and above is unsuitable for children under 14...
-
Page 19: Tv-Channel Menu
Movie-Rating: To adjust the movie blocking level in the US. You can select between NONE, G, PG, PG-13, R, NC-17, X. Use the ◄► buttons to select your desired rating. General audience Restricted Parental guidance suggested No one 17 and under limited NC-17 Parents strongly cautioned Adult audience only... -
Page 20: Pc Menu
PC Menu —Adjusting for PC This is only active in PC and HDMI (PC connected) mode. When the input source is PC: When the input source is HDMI (PC connected): Auto Adjust: Use ◄► to auto adjust the picture’s horizontal position, vertical position, fine tune, and H-Size. -
Page 21: Technical Specification
TECHNICAL SPECIFICATION Type 31.51” TFT Active Matrix 0.51075(H) x 0.51075(V) mm pixel pitch Color Filter RGB vertical stripe Glass surface Anti-Glare RGB analog (0.7/ 1.0 Vp-p, 75 ohms) Separate Sync, Input signal fh: 30-80 kHz, fv: 50-75 Hz TV system Antenna / NTSC Video 1 composite RCA, 1 S-Video, 1 YPbPr component, 1 HDMI... -
Page 22: Safety Precautions
SAFETY PRECAUTIONS This LCD TV is manufactured and tested to insure the user’s safety. Improper use or installation may result in danger to the user or damage to the television. Carefully go over the following WARNINGS before installation, and keep this guide handy. WARNINGS This LCD TV should be operated only at the correct power sources indicated on the label on the rear end of the LCD TV. -
Page 23: Care And Maintenance
CARE AND MAINTENANCE Care Avoid exposing your LCD TV directly to sunlight or other sources of heat. Place your LCD TV away from the sun to reduce glare. Put your LCD TV in a well ventilated area. Do not place anything heavy on top of your LCD TV. Make certain your LCD TV is installed in a clean and moisture-free area. -
Page 24: Citizen Warranty
CITIZEN product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred.
