EPSON Stylus CX3100/3200

4.3.4 CCD Module Removal

1. Remove the scanner unit. (Refer to
2. Remove the hinge. (See "Hinge Removal" on page
3. Remove the upper housing. (See "Upper Housing Removal" on page
4. Disconnect the FFC from the lower housing.
5. Disengage the timing belt from the retaining portion of the CCD module.

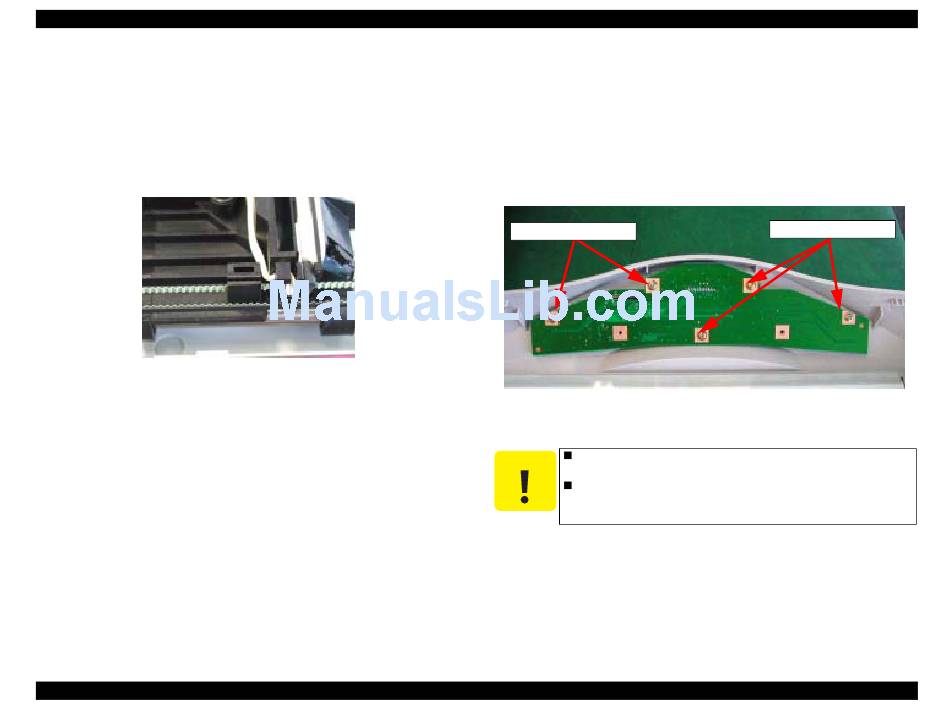

Figure 4-15. Timing Belt Retaining Portion
6. Remove the guide shaft from the lower housing.
7. Remove the guide shaft from the CCD module.
Disassembly and Assembly
"Scanner Unit Removal" on page 38)
40)
41)

4.3.5 Panel Circuit Board Removal

1. Remove the scanner unit. (Refer to
2. Remove the hinge. (See
3. Remove the upper housing. (See
4. Remove the five screws (CCP-Tite 3x6 F/Zb) securing the panel circuit board.
NOTE: Screw tightening torque: TBD
CCP-Tite 3x8F/Zn
Figure 4-16. Screws securing the Panel Circuit Board
C A U T I O N
Scanner Unit Disassembly
"Scanner Unit Removal" on page
"Hinge Removal" on page 40)
"Upper Housing Removal" on page
When installing the panel circuit board, take care that no dust
enters between the LCD panel and the transparent cover.
Do not touch the switch contacts on the panel circuit board
with bare hand; otherwise, contact error can occur.
Revision A
38)
41)
CCP-Tite 3x8F/Zn
43
