EPSON Stylus CX3100/3200

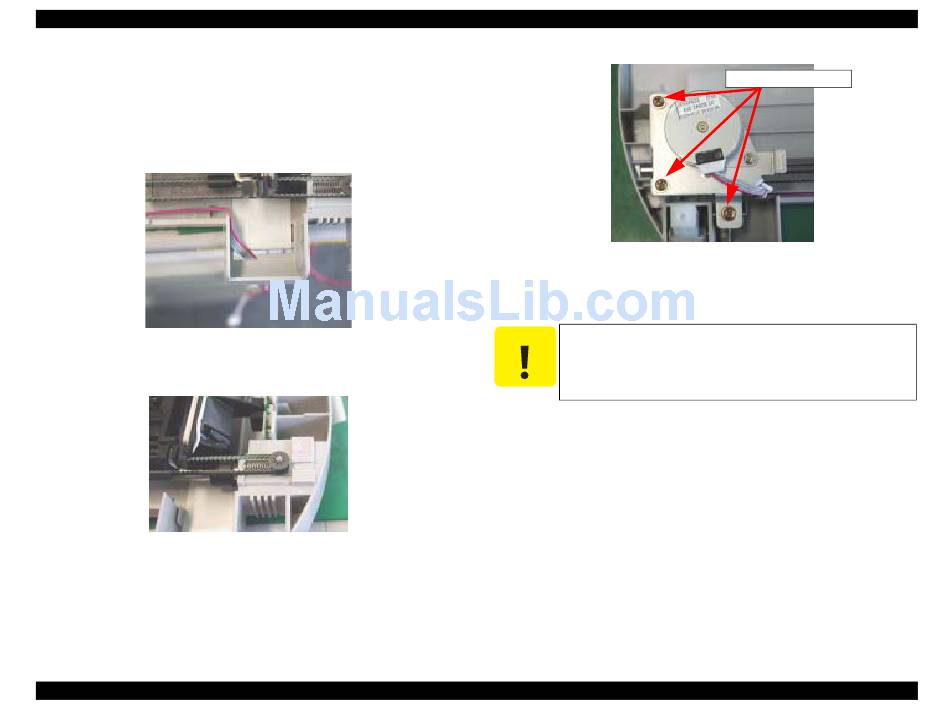

4.3.3 Motor Unit Removal

1. Remove the scanner unit. (Refer to
2. Remove the hinge. (See "Hinge Removal" on page
3. Remove the upper housing. (See "Upper Housing Removal" on page
4. Disconnect the motor harness from the lower housing.
Figure 4-12. Motor Harness
5. Loosen the timing belt by pushing the driven pulley and remove the timing belt.
Figure 4-13. Driven Pulley for Timing Belt
6. Remove the three screws (CCP-Tite 3x8 F/Zb) securing the motor bracket to the lower
housing.
NOTE: Screw tightening torque: TBD
Disassembly and Assembly
"Scanner Unit Removal" on page 38)
40)
41)
7. Remove the motor unit.
Lead the harness of the motor along the groove in the lower
C A U T I O N
housing without floating.
Scanner Unit Disassembly
CCP-Tite 3x8F/Zn
Figure 4-14. Screws securing the Motor Unit
Revision A
42
