Page 1: User Manual

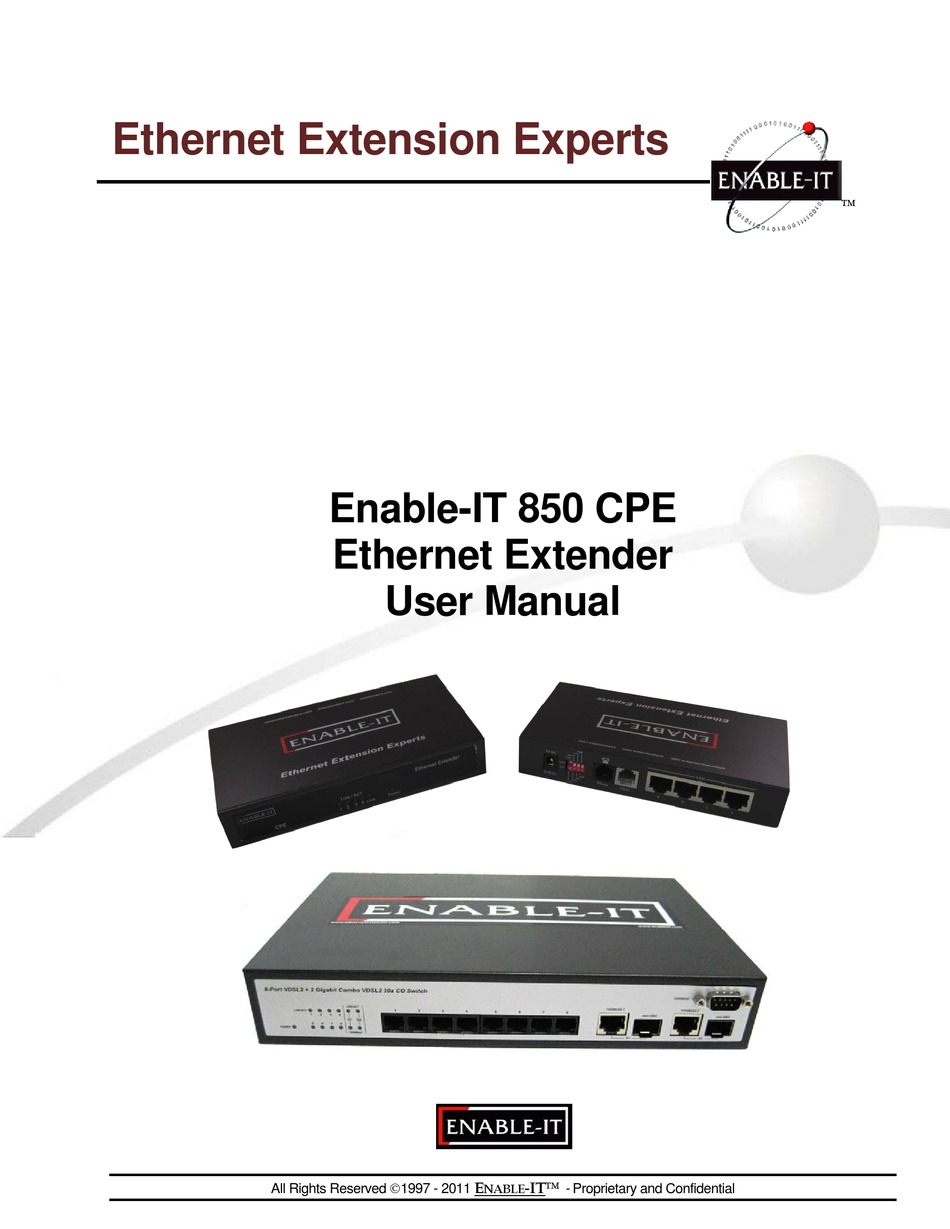

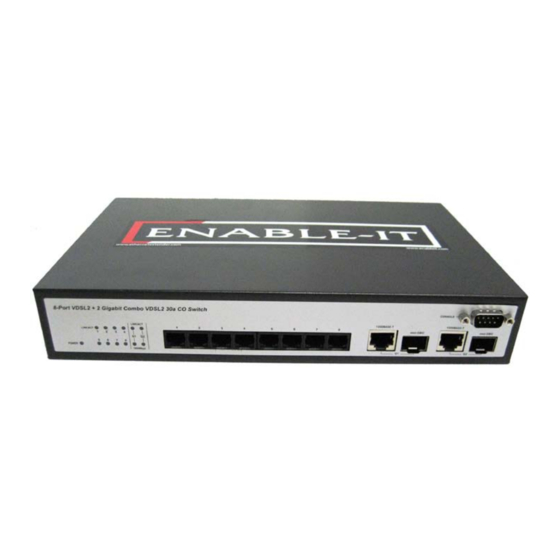

Ethernet Extension Experts Enable-IT 850 CPE Ethernet Extender User Manual -IT All Rights Reserved 1997 - 2011 NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
CONTENTS BOUT UIDE -IT 850 CPE E NTRODUCING NABLE THERNET XTENDER About the 850 CPE Ethernet Extender Key Benefits Summary of Features Typical Use Applications -IT 850 CPE E NSTALLING THE NABLE THERNET XTENDER Site Plan – Installation Design Considerations... -
Page 4: About This Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 850 CPE Ethernet Extender Kit. This guide is intended for use by technicians who are responsible for installing and setting up network equipment. Consequently, it is assumed that the installer has a basic working knowledge of LANs (Local Area Networks) and voice telecom wiring. -
Page 5: Introducing
The 850 CPE Extended Ethernet Unit offers the Lowest Cost Solution in a simple design for rapid install using existing 1 pair Telco wiring. - Page 6 Key Benefits The following list identifies the 850 CPE Extended Ethernet Unit key benefits. • Dramatic cost reduction over any competing technology and includes a (4) Port 10/100 LAN switch on each end. • Broadband technology that delivers in-building Ethernet access over 1 pair of existing Category 2 up to Category 5e wiring up to 8,000’, whether spare or...
-
Page 7: Typical Use Applications
Internet service does not affect POTS services. Carriers and Access Providers can came and go, but the 850 CPE Extended Ethernet Unit technologies continue to provide lasting value such as the other utilities like Water, gas and electricity. -
Page 8: Site Plan - Installation Design Considerations
XTENDED THERNET The Enable-IT 850 CPE Extended Ethernet Units have a distance restriction of 8,000ft or 2,440m over 1-pair of Category 2 up to Category 5e / CAT6 wiring from device extension to device extension. Therefore quick, simple site surveys and installation planning are highly recommended. -
Page 9: Building The 850 Cpe Interlink Wiring
LEDs will start flickering slowly and then fast as the units talk to eachother. After a few seconds you should see a solid Green Interlink Sync LED on each 850 CPE unit to confirm a link is established. The 8950 DSLAM will take about 30 seconds to startup then link will be established with the 850 CPE. -
Page 10: Attaching Cabling And Devices
8950 DSLAM, and power is applied to both the DSLAM and CPE units. 3) You can easily isolate any issue by performing an out of the box test confirm either the 850 CPE or your wiring. It is possible an outside interference has been introduced into your wiring. -
Page 11: Online Technical Services
Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product. - Page 12 Enable-IT; (ii) modification (including but not limited to opening the Product housing) or repair by any party in any manner other than as approved by Enable-IT in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or physical conditions, negligence or accidents;...
-
Page 13: Contact Us
Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any...
