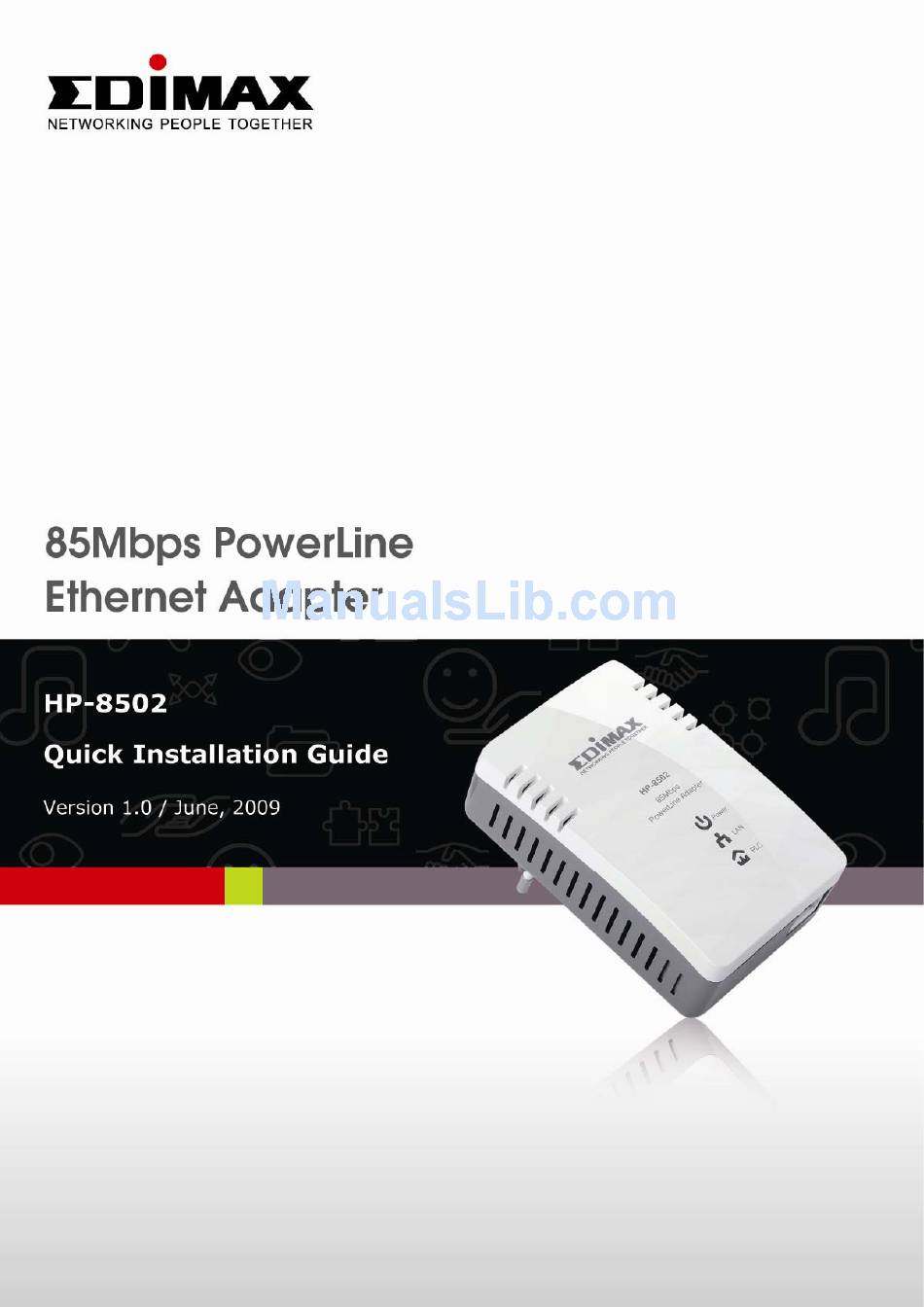

- Page 2 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,...
- Page 3 Č ý : Českého průvodce rychlou instalací naleznete na přiloženém CD Č ý s ovladači : Auf der beiliegend Treiber CD finden Sie deutsche Anleitung zur Schnellinstallation. ñ l : Incluido en el CD el G.R.I. en Español. ñ ç : Veuillez trouver l’français G.I.R ci-joint dans le CD ç...
-

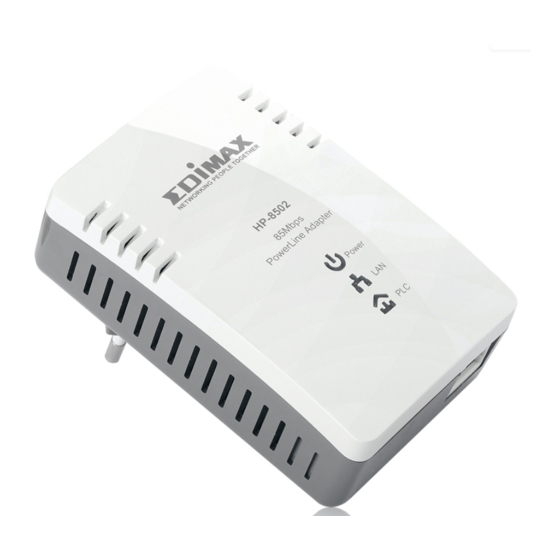

Page 4: Product Introduction
Note：CD-ROM with the management Utility could help you to manager all of the HomePlug devices in the LAN. The Utility is not necessary when you use the internet via HP-8502. If you need to know the function of Utility , you can study the manual in the CD-ROM. -
Page 5: Led Definitions
The LAN cable is connected to the HomePlug. No network connection. Blinking Network traffic transferring or receiving HP-8502 detects another powerline device. HP-8502 doesn’t detect another powerline device. Network traffic is transmitting via the power port of Blinking the device. -
Page 6: Hardware Installation Procedure
4. Hardware Installation Procedure 1. Unpack the package and verify that all the items listed in the previous section are provided. 2. Connect the HomePlug product to the device which you want to add to a powerline network through the Ethernet cable. 3. -
Page 7: Software Installation Procedure
The Utility could help you to manager all of the HomePlug devices in the LAN. The Utility is not necessary when you use the internet via HP-8502. If you need to know the function of Utility , you can study the manual in the CD-ROM. - Page 8 6. PowerPacket Utility Click “Start” and select “All Programs\ Edimax PowerLine Utility” in your computer, you will find the HomePlug utility. Please refer to the following sections for the descriptions of how to use the utility. 6.1 Main The Main screen provides the lists of all HomePlug devices logically connected to the computer.
- Page 9 connect to the device. Once connected, the utility will automatically and periodically scan the power line for any other HomePlug devices. Lower Panel The lower panel displays all the HomePlug remote devices that are discovered on the current logical network. Above the top of the table, you can see the total number of remote devices connected to the same network, the network type (Public or Private) and the scanning status.
- Page 10 Quality: the quality of the connection is shown here. Rate (Mbps): shows the current data rate for the HomePlug device. MAC Address: the device’s MAC address is shown here. Add Button: is used to add a remote device to the existing network by entering the password of the device.
- Page 11 Scan Button: is used to perform an immediate search for the HomePlug devices connected to the Powerline network. By default, for every few seconds, the utility will automatically scan the network and update the display screen. If you want to know the detail setting of the Utility , please study user’s manual in the CD-ROM .
