HP-6002AC
Quick Installation Guide
03-2014 / v1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the HP-6002AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edimax HP-6002AC

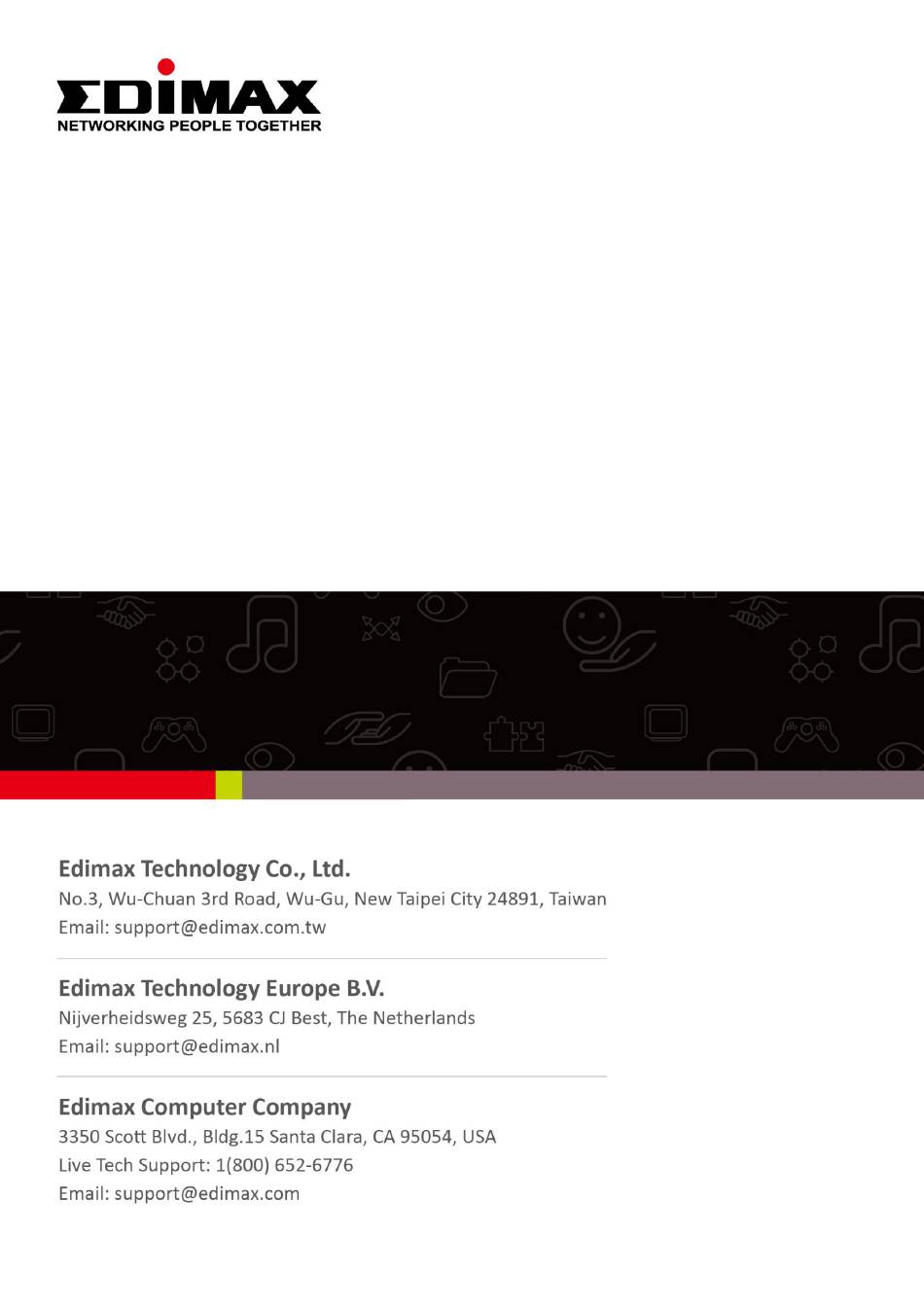

  • Page 1 HP-6002AC Quick Installation Guide 03-2014 / v1.0...
  • Page 2 Č š a : Českého průvodce rychlou instalací naleznete na přiloženém CD s ovladači š : Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD ñ l : Incluido en el CD el G.R.I. en Español. ñ ç : Veuillez trouver l’français G.I.R ci-joint dans le CD ç...
  • Page 3: Product Introduction

    Package Contents Before you start using this product, please check if anything is missing from the packaging, and contact your dealer to claim the missing item(s): HP-6002AC  Powerline adapter x 1  Quick installation guide x 1  CD with setup wizard, user manual & multi-language QIG x 1 ...
  • Page 4 About Your Product Status Description Green LAN port connected Blinking LAN activity (transferring data) LAN port not connected The green indicator turns on and the green indicator blinks slowly when the device is detecting a powerline link. Green The green indicator turns on and the yellow indicator blinks quickly to indicate data is being transferred over the powerline link.

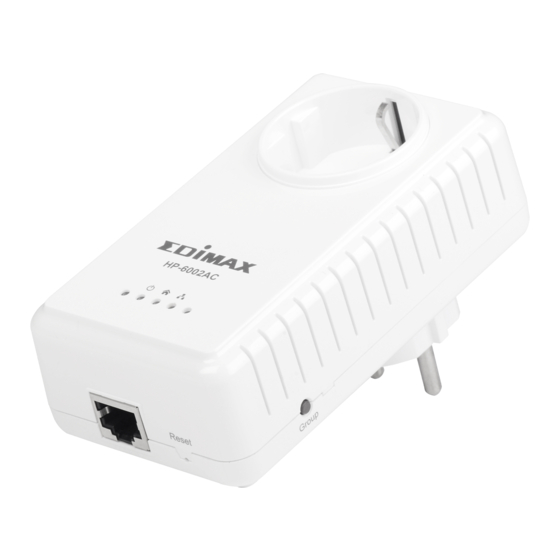

  • Page 5 Interface Description The integrated electrical socket enables additional Integrated terminal devices or multiple socket to be connected to Power Socket the adapter, just as a normal wall socket would. This is a Gigabit Ethernet port for connecting to a Ethernet Port computer or other devices with a network port.
  • Page 6: Getting Started

    The power socket of the adapter features a filter function which is able to improve the data transmission in the network. 3. Please note that AV200 (Edimax HP-200x series), AV500 (Edimax HP-500x series) and AV600 (Edimax HP-600x series) powerline adapters are able to communicate directly with one another.
  • Page 7 Creating a Powerline Network 1. Connect a powerline adapter to your router via Ethernet cable, and then plug it into a power socket. 2. Connect another powerline adapter to your computer, and then plug it into a power socket. Note: You can also connect the adapter to a printer, set top box, gaming console, TV or other device with a network port, to add the device into the powerline network.
  • Page 8 Creating an Encrypted Powerline Network with Two Adapters Once both adapters have been successfully connected, press the “Group” button of each adapter for less than 3 seconds within 2 minutes. The adapters will automatically generate a random password to encrypt the powerline network.
  • Page 9 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
  • Page 10: Eu Declaration Of Conformity

    EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2009/125/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2004/108/EC, 2009/125/EC Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2004/108/EC, 2009/125/EC.
  • Page 11: Declaration Of Conformity

    Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European EMC directive (2004/108/EC). Equipment: AV600 Gigabit Powerline Adapter with Integrated Power Socket Model No.: HP-6002AC...
