  • Page 1 HP-5102 Quick Installation Guide 01-2013 / v1.0...

  • Page 2: Product Introduction

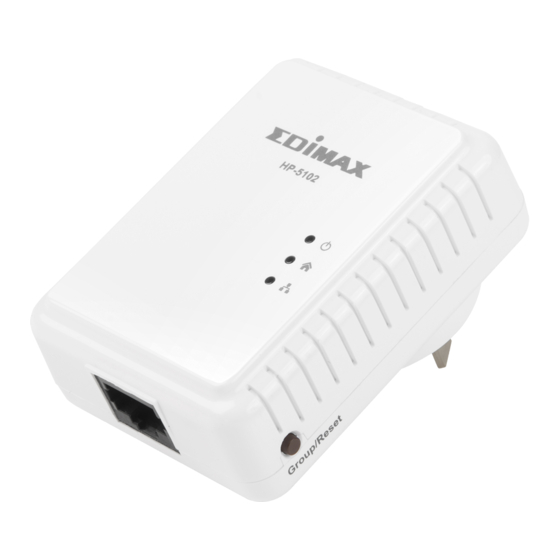

    PRODUCT INTRODUCTION Thanks for purchasing the 500M Nano PowerLine Adapter. This adapter enables you to set up a home network quickly and easily via your existing household electrical wiring, without the need for complex configuration or additional cabling. Please follow the steps in this guide to set up the network. Package Contents Before you start using this product, please check if anything is missing from the packaging, and contact your dealer to claim the missing item(s):...

  • Page 3: About Your Product

    About Your Product Status Description Green LAN port connected Blinking LAN activity (transferring data) LAN port not connected The green indicator turns on and the red indicator blinks slowly when the device is detecting a powerline link. Green/Red The green indicator turns on and the red indicator blinks quickly to indicate data is being transferred over the powerline link.
  • Page 4 Interface Description This is a Fast Ethernet port for connecting to a Ethernet Port computer or other devices with a network port. Creates an encrypted powerline network group automatically (press the button for less than 3 seconds). Leaves an encrypted powerline network group Group/Reset (press the button for 5~8 seconds).

  • Page 5: Getting Started

    1. Always plug the powerline adapter directly into a power socket. Never plug it into a multiple socket or uninterruptible power supply (UPS). 2. Please note that 200Mbps (Edimax HP-200x series) and 500Mbps (Edimax HP-500x series) powerline adapters are able to communicate directly with one another.
  • Page 6 Creating a Powerline Network 1. Connect a powerline adapter to your router via Ethernet cable, and then plug it into a power socket. 2. Connect another powerline adapter to your computer, and then plug it into a power socket. Note: You can also connect the adapter to a printer, set top box, gaming console, TV or other device with a network port, to add the device into the powerline network.
  • Page 7 Creating an Encrypted Powerline Network with Two Adapters Once both adapters have been successfully connected, press the “Group/Reset” button of each adapter for less than 3 seconds within 2 minutes. The adapters will automatically generate a random password to encrypt the powerline network. Note: ...
  • Page 8 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.

  • Page 9: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 10: Eu Declaration Of Conformity

    EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2009/125/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2004/108/EC, 2009/125/EC Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2004/108/EC, 2009/125/EC.

  • Page 11: Declaration Of Conformity

    Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European EMC directive (2004/108/EC). Equipment: 500Mbps Nano PowerLine Adapter Model No.: HP-5102 The following European standards for essential requirements have been followed:...
