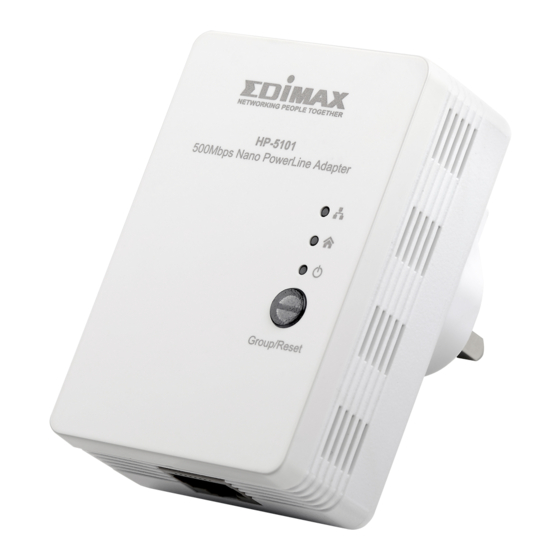

Edimax HP-5101 User Manual

Edimax HP-5101 User Manual

Powerline adapters
Hide thumbs Also See for HP-5101:

Advertisement

Quick Links


HP-5101
User Manual
08-2012 / v1.1



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP-5101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Edimax HP-5101

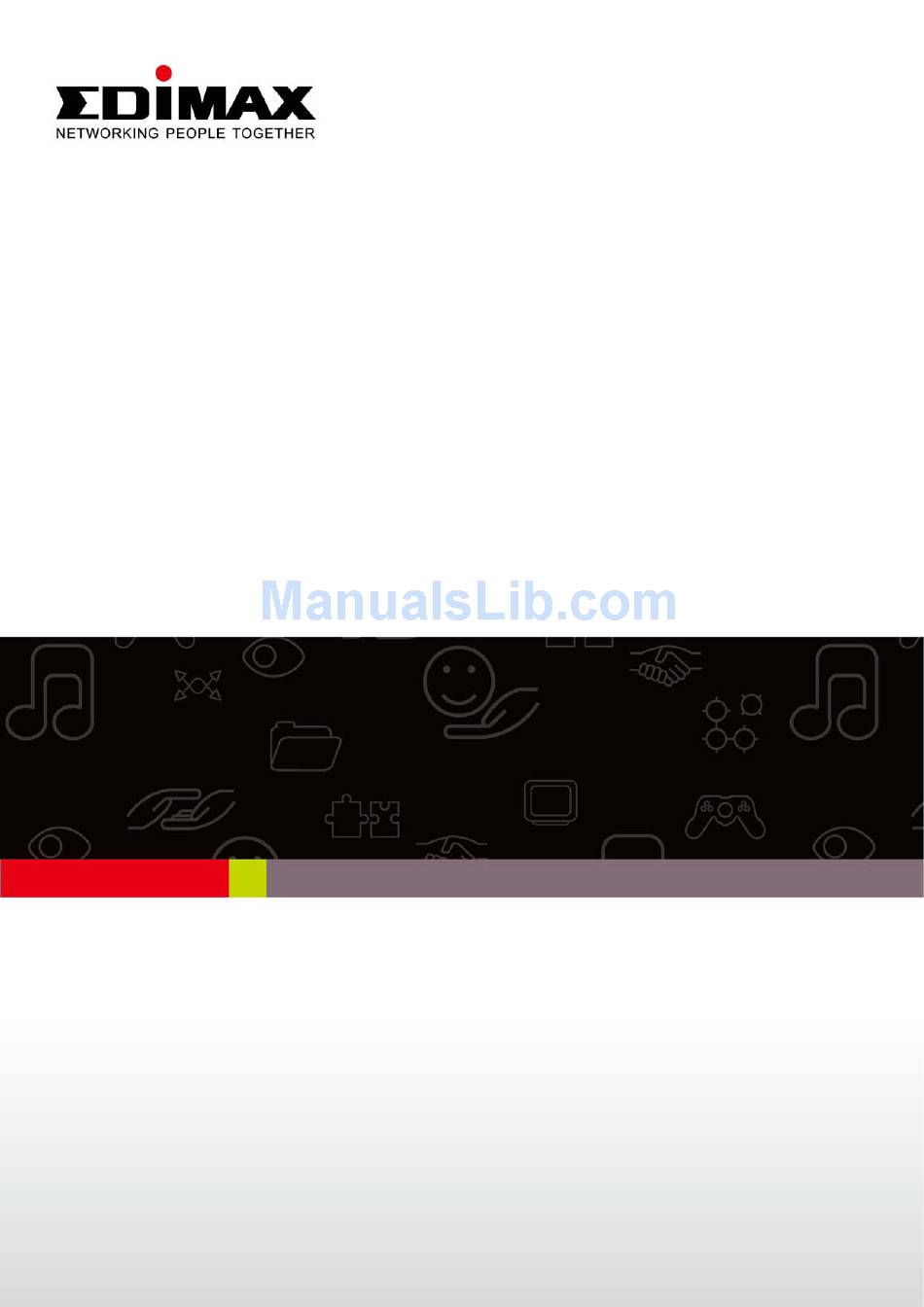

  • Page 1   HP-5101 User Manual 08-2012 / v1.1   0   ...
  • Page 2     COPYRIGHT    Copyright © Edimax Technology Co., Ltd. all rights reserved. No part of this  publication may be reproduced, transmitted, transcribed, stored in a retrieval  system, or translated into any language or computer language, in any form or by  any means, electronic, mechanical, magnetic, optical, chemical, manual or  otherwise, without the prior written permission from Edimax Technology Co.,  Ltd.  Edimax Technology Co., Ltd. makes no representations or warranties, either  expressed or implied, with respect to the contents hereof and specifically  disclaims any warranties, merchantability, or fitness for any particular purpose.  Any software described in this manual is sold or licensed as is. Should the  programs prove defective following their purchase, the buyer (and not this  company, its distributor, or its dealer) assumes the entire cost of all necessary  servicing, repair, and any incidental or consequential damages resulting from  any defect in the software. Edimax Technology Co., Ltd. reserves the right to  revise this publication and to make changes from time to time in the contents  hereof without the obligation to notify any person of such revision or changes.  The product you have purchased and the setup screen may appear slightly  different from those shown in this QIG. For more information about this product,  please refer to the user manual on the CD‐ROM. The software and specifications  are subject to change without notice. Please visit our website www.edimax.com  for updates. All brand and product names mentioned in this manual are  trademarks and/or registered trademarks of their respective holders.      Edimax Technology Co., Ltd.  Add: No. 3, Wu‐Chuan 3rd Rd., Wu‐Ku Industrial Park, New Taipei City, Taiwan  Tel: +886‐2‐77396888    Email: sales@edimax.com.tw ...
  • Page 3: Table Of Contents

    Contents  Chapter 1: Introduction .............................  1   1.1 Product Features  ..........................  1   1.2 Application ............................  1   1.3 Compatibility  ............................  2   1.4 System Requirements ..........................  2   Chapter 2: About the Product  ..........................  3   2.1 LED Definitions  .............................  3   2.2 Interface  ...............................  4   Chapter 3: Getting Started  ..........................  5   3.1 Hardware Installation .......................... ...
  • Page 4: Chapter 1: Introduction

    Chapter 1: Introduction    1.1 Product Features    Easy plug‐n‐play setup and 128‐bit AES security  Max. powerline speed up to 500Mbps  Backward compatible with 200Mbps powerline adapters  Features energy saving mode to reduce power consumption  Powerline transmission range up to 300 meters      1.2 Application    High‐definition (HD) and standard‐definition (SD) video distribution  Broadband Internet sharing  Internet Protocol Television (IPTV) and Voice over Internet Protocol (VoIP)  applications        1   ...
  • Page 5: Compatibility

    1.3 Compatibility    200Mbps (Edimax HP‐200x series) and 500Mbps (Edimax HP‐500x series) powerline  adapters are able to communicate directly with one another. 200Mbps and 500Mbps  powerline adapters can be used on the same household electric wiring as 14Mbps &  85Mbps powerline adapters (Edimax HP‐85XX series) without interfering, but are not able  to communicate directly with 14Mbps and 85Mbps powerline adapters.      1.4 System Requirements    Computer with Ethernet port running Windows XP/Vista/7, Linux, MAC OS X and  any other operating system.  Any connected devices must feature a network port.  Utility software supports Windows XP/Vista/7.    2   ...
  • Page 6: Chapter 2: About The Product

    Chapter 2: About the Product    2.1 LED Definitions        LED  Status  Description Green  LAN port connected   Blinking  LAN activity (transferring data) LAN  Off  LAN port not connected The green indicator turns on and the red indicator  blinks slowly when the device is detecting a  powerline link.  Green/Red    The green indicator turns on and the red indicator  PLC  blinks quickly to indicate data is being transferred  over the powerline link. Off  No other PLC device detected Green  Powered on   PWR  Off  Powered off   Note: The device will enter standby mode, and all LEDs will extinguish, after  5 seconds without any data transfer, including when the Ethernet cable is    disconnected. The Power LED will flash once every 15 seconds. ...
  • Page 7: Interface

    2.2 Interface        Interface  Description  Ethernet Port  This is a Fast Ethernet port for connecting to a computer or  other devices with a network port. Group/Reset  Creates an encrypted powerline network group automatically  (press the button for less than 3 seconds). Leaves an encrypted powerline network group  (press the button for 5~8 seconds). Restores the powerline adapter to factory defaults (press the  button for 10~15 seconds).   4   ...
  • Page 8: Chapter 3: Getting Started

    Chapter 3: Getting Started    3.1 Hardware Installation    Always plug the powerline adapter directly into a power socket. Never plug it into a  multiple socket or uninterruptible power supply (UPS).      5   ...
  • Page 9: Creating A Powerline Network

    3.2 Creating a Powerline Network    1. Connect a powerline adapter to your router via Ethernet cable, and then plug it into a  power socket.        2. Connect another powerline adapter to your computer, and then plug it into a power  socket.    Note: You can also connect the adapter to a printer, set top box, gaming console, TV or  other device with a network port, to add the device into the powerline network.        3. Make sure that the PLC and LAN LEDs light up on both PLC adapters.    4. The computer and the router will be connected to the powerline network automatically.  6   ...
  • Page 10: Creating An Encrypted Powerline Network With Two Adapters

    3.3 Creating an Encrypted Powerline Network with Two Adapters    Once both adapters have been successfully connected, press the “Group/Reset” button  of each adapter for less than 3 seconds within 2 minutes. The adapters will  automatically generate a random password to encrypt the powerline network.        Note:  To add additional adapters into the encrypted powerline network or to remove  an adapter from the powerline network, please refer to the Chapter 6 in the  manual  If the powerline adapter in your network does not feature a “Group/Reset” or  an “Encrypt” button, you can use the utility software as an alternative. For  more details please refer to Chapter 5 in the manual. 7   ...
  • Page 11: Chapter 4: Utility Software Installation

    Chapter 4: Utility Software Installation    You can manage all the connected powerline adapters with the utility software. Only install  the utility software when you need to add other powerline adapters without “Group” or  “Encrypt” button.    Step 1  Before installing the utility software, make sure that no other powerline utility is  installed on your computer. If any other utility software is installed, uninstall it and  reboot the computer.    Step 2  Insert the CD into your CD‐ROM drive. When the following “Autorun Wizard”  appears, select your model.  Note: If autoplay is installed on your computer, the “Autorun Wizard” will start  automatically. Otherwise, please go to Autorun folder in the CD and execute the  “AutoRun.exe” program.        8   ...
  • Page 12 Step 3  Then click “Setup Utility”.        Step 4  If you have not installed WinPcap version 4.1.2 (or higher) on your computer  before, please click “OK” to install the utility. The wizard will guide you through the  setup process.            9   ...
  • Page 13           10   ...
  • Page 14       Step 5  When the “Edimax PowerLine Utility” setup wizard appears, click “Next” to        continue.      11   ...
  • Page 15 Step 6  In the “License Agreement” screen, please select “I Agree” and then click “Next” to      continue.        Step 7  Select where you want to install the utility software, and then click “Next”.      12   ...
  • Page 16 Step 8  If you confirm to install the utility, click “Next”.        Step 9  After the installation is complete, click “Close”.        Step 10  An icon will appear on your desktop. Double click the icon to open the utility  software.      13   ...
  • Page 17: Chapter 5: Using The Utility Software

    Chapter 5: Using the Utility Software    5.1 Main Tab    The “Main” tab provides a list of local or remote powerline adapters in the network.  You could manage the remote powerline adapters (those on your circuit, but not directly  connected to your computer) here.        Upper Panel ‐ Local Device(s) on your computer    The upper panel displays local powerline adapters connected to the computer’s  network port. In situations where there are more than one local device being connected,  such as a USB or an Ethernet adapter, the user can select the local device by clicking on it  and then click the “Connect” button. The status area above the button indicates that your  PC is connected to which device. Once connected to the local device, the utility will  automatically scan the power line periodically for any other powerline devices. If no local  powerline devices are discovered, the status area above the connect button will indicate  with a message “HOMEPLUG ADAPTERS NOT DETECTED’.    14   ...
  • Page 18 If you want to upgrade firmware of the adapter directly connected to your computer,  please click “Upgrade firmware” button. The dialog box will be shown as below, please click  “Browser” button to choose the PIB and firmware files you wish to update and then click  “OK” button.    Note: Please be sure you have selected the correct model firmware, or the device may be  damaged.            Lower Panel ‐ Powerline Devices detected    The lower panel displays remote powerline adapters in the network. The following are  descriptions of every setup items:    Item  Descriptions  Device Name  This column shows the default device name, for example:  “Device 2”, “Device 3”. If you want to change the name,  please click “Rename” button to edit the name.  Password (DEK Password)  This column by default is blank. In order to manage the  powerline adapters, you have to enter the password (DEK  password) of the adapter. The DEK password is printed on  the label located in back of the powerline adapter. After  you have entered the correct password, this column will  show the password.    To set the password of the adapter, first select the adapter  by clicking on its name and then click “Enter Password”  button. A dialog box will appear as below. Please type the  password and click “OK” button.  15   ...
  • Page 19   Quality  The status of the connection quality will be shown here.  Rate (Mbps)  Shows the current data rate of the powerline adapter.  MAC Address  The adapter’s MAC address will be shown here.  Rename  Select an adapter and click “Rename” to rename the  adapter.  Enter Password  Select an adapter and click “Enter Password” to set the  password for the adapter.  Add  This button is used to add a remote powerline adapter  which is not the existing network. Click this button and the  following dialog box will appear. Please enter both device  name and the password and click “OK” button.   Scan  Click “Scan” and the utility software will perform an  immediate scan of other powerline adapters. By default,  the utility automatically scans every few seconds.    16   ...
  • Page 20: Privacy Tab

    5.2 Privacy Tab    In the “Privacy” tab, you can create a private network by changing the default network  name.          The following are descriptions of every setup items:    Item  Descriptions  Private Network Name  Almost all of the powerline adapters shipped with the same  network name “HomePlugAV”. With the same network  name, all the powerline adapters can be connected  directly.      If you want to create private network, please enter the new  network name and then click “Set Local Device Only” or  “Set All Devices” button.  Use Default (Public  Click this button and the in the “Private Network Name”  Network)  column will be shown the default name “HomePlugAV”.  Set Local Device Only  This button is used to change the network name of the  local device only. Once you have changed the network  name of the local adapter only, the adapters seen on the  “Main” tab prior to this will be no longer present in the  network.  Set All Devices  This button is used to change the network name of all  17   ...
  • Page 21 adapters that appear in the “Main” tab. If the network  name is modified to anything other than the default, the  network type in the “Main” tab will be changed to  “Private”.    18   ...
  • Page 22: Diagnostics Tab

    5.3 Diagnostics Tab        The “Diagnostics” tab displays the system information and history of all remote  devices.    The upper panel displays technical data concerning the software and hardware on the  host computer and the lower panel displays the history of all remote devices.  19   ...
  • Page 23: About Tab

    5.4 About Tab      The “About” tab contains some basic information about the software.    In “Preferences” panel, you can enable or disable the “AutoScan” function. When the  function is enabled, the utility will auto scan the powerline adapters in the network and  show the adapters in the “Main” tab. If you have disabled this function, please click “Scan”  button in the “Main” tab to scan the adapters manually.        20   ...
  • Page 24: Chapter 6: Powerline Network Management With Group Button

    Chapter 6: Powerline Network Management with Group Button    This section demonstrates how to add or remove devices from a powerline network  with the “Group/Reset” button.    6.1 Forming a HomePlug AV Logical Network    When two devices with different group keys are connected to the same powerline and  you want them to form a logical network, follow the following procedures:    Step 1  Press and hold the “Group/Reset” button on adapter A for less than 3 seconds. The  Power LED will start to blink.    Step 2  Within 120 seconds after the Power LED starts blinking on adapter A, press the  “Group/Reset” button on adapter B for less than 3 seconds.    Step 3  Wait for the connection to be established.        21   ...
  • Page 25: Joining A Network

    6.2 Joining a Network    If you want to add a new powerline adapter to an existing network, follow the  following procedures:    Step 1  Press the “Group/Reset” button on an adapter in the existing network (adapter A  or B) for less than 3 seconds. The Power LED will start to blink.    Step 2  Within 120 seconds after the Power LED starts blinking on adapter A or B, press  the “Group/Reset” button on the new adapter (adapter C) for at least 3 seconds.    Step 3  Wait for the connection to be established.        22   ...
  • Page 26: Leaving A Network & Joining Another Network

    6.3 Leaving a Network & Joining another Network    If you want to remove a powerline adapter from an existing network and add it to  another network, follow the following procedures:    Step 1  Press the “Group/Reset” button on the adapter to be removed (adapter B) for 5~8  seconds.    Step 2  Wait for adapter B to be disconnected with adapter A & C.    Step 3  Press the “Group/Reset” button on an adapter in another network (adapter D) for  less than 3 seconds. The Power LED will start to blink.    Step 4  Within 120 seconds after the Power LED starts blinking on adapter D, press the  “Group/Reset” button on adapter B for at least 3 seconds.    Step 5  Wait for the connection to be established.        23   ...
  • Page 27: Chapter 7: Troubleshooting

    Chapter 7: Troubleshooting    If your powerline adapters have difficulty communicating with each other, try the  following procedures:    • Try power cycling the unit by unplugging it from the electric outlet for 10 seconds and  plugging it in again.  • Hold the “Group/Reset” button down for 10~15 seconds on each unit you are trying to  connect. The units will reset and attempt to establish a connection using factory default  settings.  • Try plugging the powerline adapter into an adjacent electric outlet.  • This powerline adapter should not be used on GFI protected electric outlets, as some  outlets will filter out the powerline signal.  • This powerline adapter should not be used in areas with excessive heat.  • Certain florescent or incandescent lights are noise sources that can degrade  performance.  • If your building has more than one circuit breaker box, your powerline adapters may not  be able to establish a connection across different circuit breaker boxes. In such cases, try  establishing a connection across different circuit breaker boxes by linking two powerline  adapters together with an Ethernet cable.  24   ...
  • Page 28 Federal Communication Commission Interference Statement    This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation  is  subject  to  the  following  two  conditions:  (1)  This  device  may  not  cause  harmful  interference,  and  (2)  this  device  must  accept  any  interference  received,  including  interference that may cause undesired operation.  25   ...
  • Page 29 EU Declaration of Conformity    English:  This equipment is in compliance with the essential requirements and other relevant provisions of  Directive 2004/108/EC, 2009/125/EC.  Français:  Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive  2004/108/EC, 2009/125/EC  Čeština:  Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic  2004/108/EC, 2009/125/EC.  Polski:  Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi  Dyrektywą UE 2004/108/EC, 2009/125/EC.  Română:    Acest echipament este în conformitate cu cerințele esențiale şi alte prevederi relevante ale  Directivei 2004/108/EC, 2009/125/EC.  Русский:  Это оборудование соответствует основным требованиям и положениям Директивы  2004/108/EC, 2009/125/EC.  Magyar:  Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek  (2004/108/EC, 2009/125/EC)  Türkçe:    Bu cihaz 2004/108/EC, 2009/125/EC direktifleri zorunlu istekler ve diğer hükümlerle ile  uyumludur.  Українська:  Обладнання відповідає вимогам і умовам директиви 2004/108/EC, 2009/125/EC.  Slovenčina:   Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc 2004/108/EC,  2009/125/EC.  Deutsch:  Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 2004/108/EC, 2009/125/EC.  Español:  El presente equipo cumple los requisitos esenciales de la Directiva 2004/108/EC, 2009/125/EC.  Italiano:    Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili della  Direttiva 2004/108/EC, 2009/125/EC. ...
  • Page 30         27   ...
