A Huffy Company
Please refer to modular category #350 when arranging product for modular display.
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY,
PROPERTY DAMAGE AND WILL VOID WARRANTY.
This unit is intended for display purposes only and
should not be used for play.
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Check entire box and inside all
packing material for parts. Before beginning assembly, read the
instructions and identify parts in this document. Proper and
complete assembly, use and supervision is essential for proper
operation and to reduce the risk of accident or injury. A high
probability of serious injury exists if this system is not installed,
maintained, and operated properly.
• During assembly, if using a ladder use extreme caution. Two
people are recommended for this operation.
• If technical assistance is required, contact Huffy Sports' Sample
and Display Technician.
• Serious injury could occur if teeth/face come in contact with
backboard, net or rim.
• Display recommended for 3" (7.6 cm) or 3-1/2" (9 cm) Round or 4"
(10 cm) Square poles only.
• All instructions and warnings MUST accompany any display item
that is sold.
Most injuries are caused by misuse and/or not following
Use caution when installing this unit.
IMPORTANT!
We appreciate your purchasing one of our many fine products. We are sure that you will be very satisfied with your selection. Although
great care and effort have been taken, problems may occur. To ensure prompt and correct handling of any problems, or to answer any
questions, please contact the Sample and Display Technician at 414-820-3440.

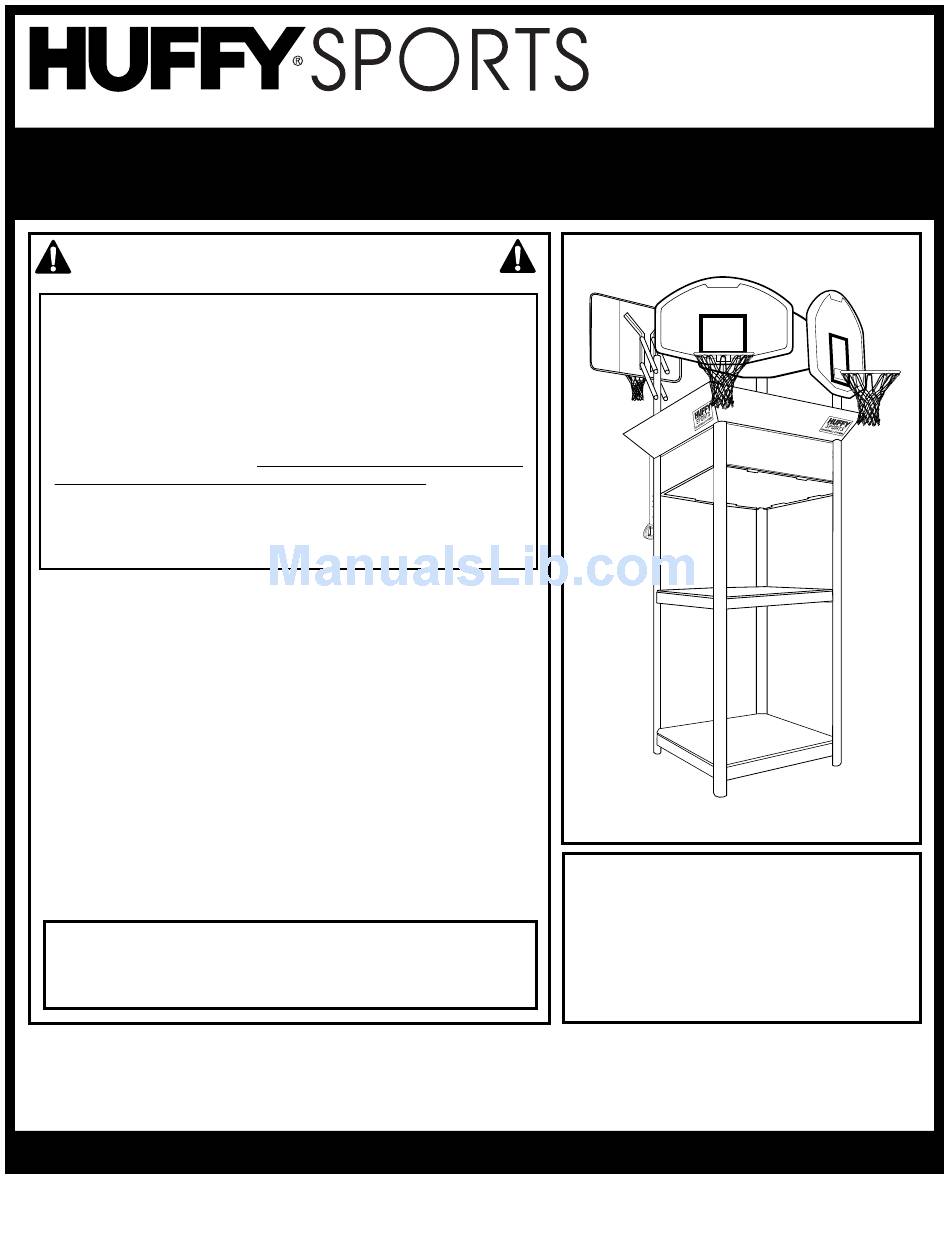

Model 89025
instructions.
Internet Address: http://www.huffysports.com
N53 W24700 South Corporate Circle
REQUIRED TOOLS AND
• 2 People
• Wrenches: (Two each) 7/16", 1/2", 9/16", and 3/4"
or Pliers
• Phillips Screwdriver
• 2 Step Ladders, 8 ft. (2.4 m)
1
Customer Service
Sussex, WI 53089
U.S.A.
MATERIALS:
06/03
P/N 211543B
Advertisement
Related Manuals for Huffy 89025
Summary of Contents for Huffy 89025
- Page 1 • During assembly, if using a ladder use extreme caution. Two people are recommended for this operation. • If technical assistance is required, contact Huffy Sports’ Sample and Display Technician. • Serious injury could occur if teeth/face come in contact with backboard, net or rim.
- Page 2 Install display boards in the marked locations. Each mounting location consists of a mounting pole stub with the following dimensions: Height = 8”, O.D. = 3 3/8”, I.D. = 3 1/8” (arrows indicate direction the board is facing). Display boards will be mounted as follows: Corner Location 1: Corner Location 2:73603 Corner Location 3:...
- Page 3 RIM ASSEMBLY - Corner Locations 1 and 2 Assemble rims as shown below. 06/03 P/N 211543B...
- Page 4 Install net clips. clips, or when all net clips are not present could result in bodily harm. Be sure to follow directions carefully. P/N 211543B 06/03 WARNING: Use of this product without proper installation of net Insert one “arm” of clip into ram as shown. Twist “body” of clip slightly so that second “arm”...
- Page 5 NET INSTALLATION SIDE VIEW NETCLIP Insert net into bottom of clip as shown. SIDE VIEW Twist net until it snaps into position. Net must be centered through clip. NETCLIP 06/03 P/N 211543B...
- Page 6 At corner locations 1, 2, and 3 install the display pole (11) to the mounting pole stub. If required, secure the display pole (11), slide the display wedge (12) into position as shown. Tighten the set screw (13) to lock the display pole (11) in place.
- Page 7 ELEVATOR ASSEMBLY - Corner Locations 1 and 3 Install pole mount bracket (49) with carriage bolts (16) as shown. Tighten flange nuts (8) completely. Attach covers (54) onto pole mount bracket (49) with carriage bolt (31) and nut (8) as shown. IMPORTANT! Loop end of pin lanyard (57) over carriage bolt (31) during this assembly.
- Page 8 44” STEEL FRAME ACRYLIC BACKBOARD ASSEMBLY - Corner Location 1 Attach backboard support brackets (37) to the backboard frame using bolts (24), spacers (38), and nuts (17) as shown Attach lower elevator tubes (29) to backboard support brackets (37) using spacers (59), bolt (20), and nut (42) as shown.
- Page 9 Attach upper elevator tubes (21) to backboard support brackets (37) using spacers (59), bolt (27), and nut (42) as shown. Attach backboard assembly to pole section (11). Install pole cap (43). NOTE: Two people are recommended for this step. Use caution; elevator assembly is heavy.
- Page 10 Insert handle assembly through pole mount assembly as shown. Lock pole assembly in place at the 10’ (3.05m) mark with pin (55). 44” FAN MOLDED PLASTIC BOARD ASSEMBLY - Corner Location 3 Assemble backboard brackets (23) using spacers (15) bolts (18, 24) and nuts (19, 17) as shown.
- Page 11 Attach lower elevator tubes (29) to backboard brackets (23) using spacers (59) bolt (27) and nut (42) as shown. Bend top of backboard brackets (23) outward to match up with holes on backboard and secure using nuts (8) and bolts as shown. Attach rim to backboard using using bolts and nuts (8) as shown.
- Page 12 Attach upper elevator tubes (21) to backboard brackets (23) using spacers (22) bolt (27) and nut (42) as shown. Attach backboard assembly to pole section (11). Then install pole cap (43). NOTE: Two people are recommended for this step. Use caution; elevator assembly is heavy.
-
Page 13: Height Adjustment
Insert handle assembly through pole mount assembly as shown. Lock pole assembly in place at the 10’ (3.05m) mark with pin (55). To Set Backboard Height: A. While holding handle, remove pin (55). B. Move elevator up or down to desired height. C. - Page 14 44” FAN MOLDED PLASTIC BOARD ELEVATOR ASSEMBLY - Corner Location 2 Attach elevator bracket (36) and reinforcement bracket (41) to pole section (11) using bolts (16) and nuts (8) as shown. Assemble backboard brackets (23) using spacers (15) bolts (18, 24) and nuts (19, 17) as shown.
- Page 15 Attach lower elevator tubes (29) to backboard brackets (23) using spacers (60) bolt (27) and nut (42) as shown. Bend top of backboard brackets (23) outward to match up with holes on backboard and secure using nuts (8) and bolts as shown. Attach rim to backboard using using bolts and nuts (8) as shown. REFER TO INSTRUCTIONS INCLUDED WITH RIM...
- Page 16 Attach upper elevator tubes (21) to backboard brackets (23) using spacers (56) bolt (20) and nut (42) as shown. Attach backboard assembly to top pole section (11). Then install pole cap (43). NOTE: Two people are recommended for this step. Use caution;...
- Page 17 Fig. A Insert locking pin (28) into bracket on adjustment tube (6). Insert cross pin (5) through hole in bracket and locking pin (28) as shown in figure A. Fit left handle (31) onto adjustment tube (6) so the bottom of adjustment tube (6) sits on the two small ribs of the handle as shown in figure B.
- Page 18 Insert spring (53) into back of locking pin (28) as shown. Spring (53) should rest between two small ribs at the back of the plastic handle as shown in Figure C. Insert top of trigger (50) into bracket on the adjustment tube (6) as shown. The plastic post of the handle pieces should go through the hole in bottom of trigger (50) and hold it into place as shown.
- Page 19 Finish handle assembly by attaching right handle using screws as shown. Insert lower adjustment rod (62) into bottom of adjustment tube (6), pull trigger to allow lower adjustment rod to move about mid-way into adjustment tube (6), release the trigger so the lower adjustment rod (62) locks into position midway inside the adjustment tube (6).
- Page 20 40” FAN BACKBOARD ASSEMBLY - Corner Location 4. Assemble 40” fan backboard as shown below with a standard rim as shown. WARNING TWO PERSON MINIMUM REQUIRED FOR THIS PROCEDURE. NOT FOLLOWING RECOMMENDATION MAY RESULT IN BODILY INJURY. P/N 211543B 06/03...
- Page 21 PARTS LIST - See Hardware Identifier Item Qty. Part No. Description 900033 Back Bracket 203796 T-Bolt, 3/8-16 x 5 200318 Bracket 203472 Spring 200215 Cross Pin 900006 Adjustment Tube - Upper 203113 Bolt, Hex-Flange 5/16-18 x 2.5 203100 Nut, Hex-Flange 5/16-18 whiz Lock 201219 Clip, Smart Clips 204290...
- Page 22 HARDWARE IDENTIFIER (BOLTS & SCREWS) Item #18 (2) Item #16 (4) Item #24 (2) Item #39 (4)* Item #25 (4) Item #20 (2) Item #7 (16) Item #27 (13) Item #63 (1) Item #2 (2) HARDWARE IDENTIFIER (SPRINGS & WASHERS) Item #30 (8) Item #4 (2) Item #33 (24)
