Bluetooth Headset User Guide
HCB32

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCS32 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCS32

Summary of Contents for Huey Chiao HCS32

  • Page 1 Bluetooth Headset User Guide HCB32...
  • Page 3 Index . Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 0. Ending calls . Voice Dialing 2. Redialing 3. Mute 4. Transferring calls 5. Maintaining calls 6. Ending Call  and answering Call 2 7. Triple Phone Conversation 8. Adjusting the Volume 9. Safety Instruction 20. Specifications 2. Excluding Problems 22. Storage of the Headset 23. Q & A 24. Declaration of Conformity 25. Company Website...
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset HCB32. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. HCB32 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB8/ HCB2), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc. Before using it, please confirm your mobile phone complies with Bluetooth V./ V.2 and supports the Bluetooth Headset or Handsfree Profile. 2. Package List Please inspect the product you purchased. Refer to the below package list to make sure there is no shortage or defect inside. The complete package includes the following items: ► HCB32 Bluetooth Headset ...  ► User Guide .

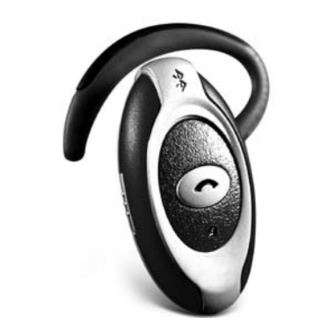

  • Page 5 3. Product Introduction Function (Answering/ Ending/ On/ Off) Button 3 LED (Indicator) Light Receiver (Speaker) Microphone Power Interface adapter (charging) Ear Hook Decrease Volume key (-)  Increase Volume key (+) 2 Note: ● For first time use, make sure to fully recharge the Headset bat- tery. 4. Charging the Headset HCB32 comes with a Lithium Polymer battery built-in.
  • Page 6 . Plug the travel charger into the power socket. 2. Plug the end of the travel charger into the power interface adapter of the Headset. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red. Note: Charging time is around 90~20 minutes. ● For first time use, make sure to fully recharge the Headset up to 4 hours. After a long time of not using it (around one month), while recharging, it takes a while for the indicator to turn red. ● While charging, please do not use the Headset. ● Please use the original charger to recharge the Headset. ● When the indicator flashes the red light, it means the battery is low, please recharge the Headset right away. ● Please recharge the Headset within the temperature range of -10 ℃ (+14℉) +45℃ (+113℉). Plug charger here 5. Power On/ Off . Press and hold the function button for 2~3 seconds, the power...
  • Page 7 will turn on after the indicator flashes the blue light 3 times. 2. To turn the power off, press and hold the function button for 2~3 seconds until you see the red indicator flash 3 times. Note: ● While turning the Headset on, you will hear the “Du Du” sound from the receiver. The blue indicator light will flash 5 times, then 2 times, and after repeating this for 5 times, the indicator will flash the blue light every 3 seconds to come into a standby mode. ● While the Headset is turned on, it will automatically search for the paired device. Under “ON” mode and within the effective range of 10 meters from the Headset, the indicator will flash the blue light to indicate that it entered the connecting mode. ● When turning the headset off, you will hear one “Bi” sound fol- lowed by two “Du” sounds, then the indicator will shut off after flashing the red light for a few times. 6. Pairing the Headset (or any Bluetooth Device) You must pair the Headset with your Bluetooth phone or any Bluetooth device before you use the Headset for the first time.
  • Page 8 start the Bluetooth new device searching function. Please follow the instructions of your mobile phone to proceed the operation. 4. When your mobile phone is in the stage of searching a new Bluetooth device, it will find HCB32. 5. Please choose and confirm HCB32. 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm HCB32 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call. Note: ● If the pairing is not successful, the Headset will return to the standby mode, please repeat the pairing process to try the pair- ing again.
  • Page 9 ● Even though the following situations happen, the paired devices remain pairing. - The power for one of the devices is off. - The service for one of the devices is off. - One of the devices is re-switched on. 7. Wearing the Headset According to your preference, adjust the headset on your left or right ear. 8. Answering the calls . While there is a call coming, wait until you hear the ringing from your Headset receiver to press the function button to answer the call.
  • Page 10 2. If the mobile phone is ringing first, wait until the Headset is ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second. 4. If the mobile phone is ringing and your Headset is off, turn on your Headset first, then press the function button to answer the call. 5. If your mobile phone has the function of automatically re- ceiving calls and you already set it up, while the call is com- ing, your Headset can receive the call automatically without pressing the function button. Note: ● For some mobile phones, the ringing sound of the Headset may be the same as the ringing sound of the mobile phone, such as Nokia… ● For some mobile phones, the ringing sound of the Headset is not the same as the ringing sound of the mobile phone, such as Motorola… 9. Refusing calls Wait to hear the ringing from your receiver, then press and hold the function button for 2~3 seconds until you hear the “Du”...
  • Page 11 . When the conversation is over, press the function button to end calls. 2. Wait until the other end hangs up the phone to end calls. 11. Voice dialing . If your mobile phone supports the voice dialing function, you can use this function with your Headset too. 2. Under the standby or connecting mode, press the function button of the Headset and follow the mobile phone instruc- tions to proceed with the voice dialing. Note: ● The activation of the voice dialing function will depend on the design of your mobile phone. ● The working range of the Bluetooth Headset is 5 meters indoors and 5~0 meters outdoors. 12. Redialing . If your mobile phone supports the redialing function, you can use this function with your Headset too. 2. Under the standby or connecting mode, press the decrease volume key (-) of the Headset for 2~3 seconds until you hear the “Du” sound to redial the last call.

  • Page 12: Maintaining Calls

    crease (+) volume key at the same time until you hear the “Du” sound, then the other end will not hear you. 2. Under the mute mode, you will hear the intermittent “Du” sound. 3. Press either the increase (+) or decrease (-) volume button to end the mute function. 14. Transferring calls . When you are answering the call with the Headset, press the increase (+) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be transferred to your mobile phone. 2. When you are answering the call with the mobile phone, press the function button of the mobile phone to transfer the call to your Headset. For some mobile phones, the phone LCD will show the transferring sign, some will not. Note: ● To activate this function, your mobile phone must support the Handsfree mode. For more details, please check the manual of your mobile phone. 15. Maintaining calls . When you are answering the call with the Headset, press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be maintained. If there is an...
  • Page 13 interrupting call coming, the Headset will answer it automati- cally. 2. Press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound to end the maintaining call function. Also do this to renew the call. Note: ● To activate this function, please make sure the assigned tele- communications agent provides this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function. 16. Ending Call 1 and answering Call 2 While you are answering Call  from your Headset, and having the interrupting call, you will hear the notifying “Du Du” sound. Press and hold the decrease (-) volume button for 4~5 seconds until you hear one “Du” sound followed by the music, Call 1 will be ended and the interrupting call (Call 2) will be answered automatically.
  • Page 14 17. Triple phone conversation . While you are answering Call  from your Headset and hav- ing the interrupting call, you will hear the notifying “Du Du” sound. Press the decrease (-) volume key for 2~3 seconds until you hear the “Du” sound, Call 1 will be maintained and the interrupting call (Call 2) will be answered automatically. 2. To proceed the triple phone conversation while you are an- swering the interrupting call (Call 2), press the increase (+) volume key for 2~3 seconds until you hear the “Du” sound, the maintained Call  will be renewed, then the three ends can talk together. 3. To end the triple phone conversation, press the function but- ton, then Call  and Call 2 will be hanged up together. Note: ● To activate this function, you must make sure the assigned tele- communications agent supports this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function.
  • Page 15 ● If Call 1 is maintained and Call 2 is on line, quickly press the function button to end Call 2 and renew Call . 18. Adjusting the Volume During a call, you may adjust the Headset’s volume. . To increase the volume, press the increase (+) volume key. 2. To decrease the volume, press the decrease (-) volume key. Note: ● You will hear the “Du Du” sound while adjusting the volume up to the loudest or lowest. 19. Safety instruction . Read the Headset manual carefully and use the headset cor- rectly by following the instructions. 2. Keep the Headset away from children, avoid children from swallowing it accidentally. 3. Do not use the cleaning liquid or spray to clean the Headset. 4. Do not clean the Headset while charging it. 5. Do not disassemble the Headset. If you encounter a problem, contact the retailer shop. ● Urgent handling...

  • Page 16: Specification

    -If you enconter a problem, turn the Headset off first. -If the inside components breakdown, please contact the repairing center to ask for immediate support and service. 20. Specification Product Model No. Standard Convention/ Signal Output Frequency Band Talk/ Standby Time Supporting Profile Connection Data Encryption Power Capacity Power Supply Operation Temperature Facility Saving Temperature Operation Moisture Weight Size Safety Regulation HCB32 Bluetooth V.2, Class II 2.4GHz ~ 2.4835GHz, ISM Band Up to 9 hours / Up to 300 hours Headset & Handsfree Peer to Peer 28 bits encrypted Rechargeable Li-Polymer 5V DC, 00~240V AC adapter -0 ~ 55 ℃ -20 ~ 60 ℃ 0% ~ 90% (non-concrete status) 5 g (battery included) 50x29.5x3 mm CE, FCC, BQB...

  • Page 17: Excluding Problems

    21. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes. It is suggested to fully re- charge the Headset if you use it for the first time. 3. Does not show the recharging sign: When the battery is com- pletely exhausted or the Headset has not been used for a long time, when charging, the red indicator light will be lit after a few minutes. 4. You hear no sound coming from the Headset: - Make sure the Headset has been paired with the other Blue- tooth device. - Make sure the Headset is on. - Make sure the distance between the Headset and the paired Bluetooth device is within 0 meters. - Make sure your mobile phone has a good signal.
  • Page 18 termination of the warranty. - Do not disassemble the Headset, it may damage the Headset accidentally or cause the warranty invalidation. - Put the Headset away from places full of dust. - Use clean and soft fabric to clean the Headset’s surface. - Put the Headset into your pocket while not using it. - Be aware not to let Children play with the Headset, avoiding accidents from happening or damaging the product. - Avoid storing the Headset in high or extra low temperature. [Travel charger] - The travel charger is designed for indoor use, please do not use it outdoors. - Connect the travel charger with the correct power supply. - Avoid pulling the cable to take the travel charger off the sock- et, it may damage the travel charger. [Battery] - New battery: for first time use, please fully recharge the battery for 4 hours. - Only authorized and qualified personnel can do battery chang- ing. - Under the normal usage, the rechargeable battery can be used for the long time. - The battery must be recharged within temperatures of -0 ℃ to 45℃. - Using the Headset under room temperature enables the bat- tery to achieve its maximum capacity.
  • Page 19 - Under a chilly environment, it may cause the battery’s capac- ity to decrease. - Recharge the Headset at least once every two months, either you use it or not. 23. Q & A Q : Why does the fully-charged Headset under the “On” mode not work with the Bluetooth mobile phone? A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can HCB32 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the mobile phone? A : Since HCB32 is certificated by BQB, compliable with Blue- tooth V.2, Class II, the longest working distance is 0 me- ters. But, this working distance may be shortened by the interference existed in the surroundings and due to the insuf- ficient Bluetooth function of the mobile phone. Q : Why does my Bluetooth mobile phone find many Bluetooth devices while searching for the new Bluetooth device? A : Most of the mobile phones are allowed to find more than...
  • Page 20 one Bluetooth device within the working range. When the searching is finished, your mobile phone’s LCD will show HCB32 or some Unknown Devices. Please select and con- firm HCB32. Q : Why my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mo- bile phone can find the Headset. Please follow the instruc- tions of your Headset manual to proceed the pairing process. Q : Shall we pair the Headset every time while using it? A : No. The paired devices remain paired regardless of turning the power off, reopening the devices or changing the battery. Q : Why is the voice from the Headset not clear? A : It may be the following two reasons: () Your location has a bad signal, please move to a location with a better signal. (2) The working range between the Headset and the mobile phone has been exceeded. Please make sure the Headset and mobile phone are within the working range of 0 meters and there is no obvious interference between. Q : What can I do if the voice from the Headset is not clear? A : Make sure your mobile phone is in a location with a better signal and increase the volume of the mobile phone or the...

  • Page 21: Declaration Of Conformity

    Headset. Q : Why is the Headset suddenly not working? A : () The Headset might be out of power. When the battery is low, the Headset flashes the red indicator light, please re- charge it soon. (2) The Bluetooth function of your mobile phone gets crashes. It happens occasionally, please turn the Bluetooth function of the mobile phone off, and renew it or turn off your Bluetooth mobile phone and turn it on again. Q : Why could the voice dialing function of the Headset not be switched on? A : () Please re-record the voice tag. (2) Some mobile phones do not support the voice dialing function. Please refer to the manual of your mobile phone. 24. Declaration of Conformity FCC (FCC ID: RL9-HCB08): HCB32 is FCC certificated as this device complies with part 5 of the FCC rules. It is built with new housing, extended from HCB08.
  • Page 22 Voltage Directive 73/23/EEC and the European EMC Direc- tive 89/336/EEC. BQB Qualification: HCB32 Bluetooth Headset, a BQB Qualified Bluetooth prod- uct is listed as qualified End Product in accordance to section 6.2.4 of the PRD. 25. Company Website Please visit our company website to know more product de- tails. www.huey-chiao.com www.hcb8.com...
  • Page 23 ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
