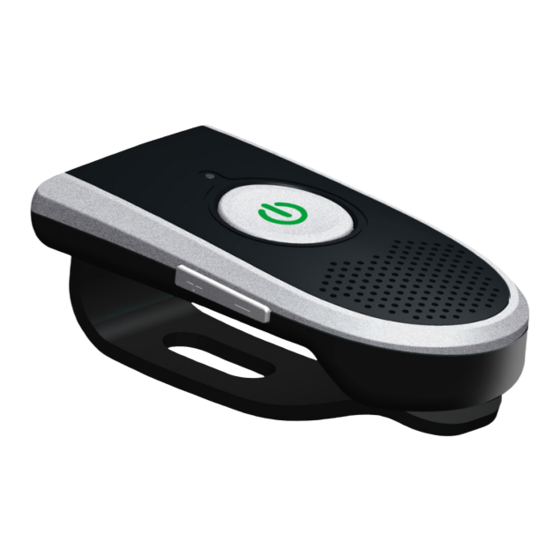

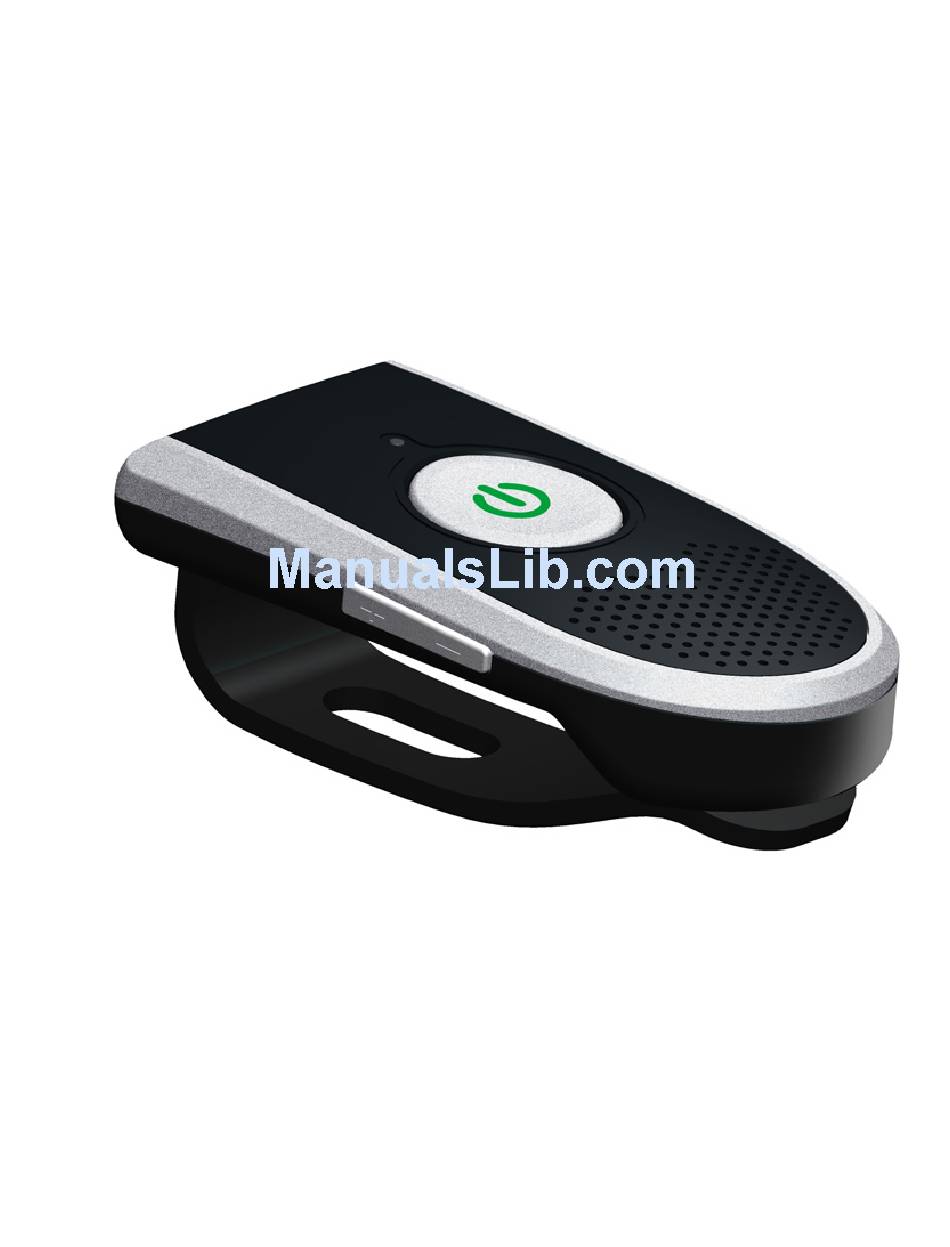

- Page 1 Bluetooth Headset User Guide HCC03...
-
Page 3: Table Of Contents
Index . Notice before using 2. Package List 3. Product Introduction 4. Charging HCC03 5. Power On/ Off 6. Pairing HCC03 (or any Bluetooth Device) 7. Settling HCC03 8. Answering calls 9. Refusing calls 0. Ending calls . Voice Dialing 2. Redialing 3. Transferring calls 4. Maintaining calls 5. Holding Call and answering Call 2 6. Triple Phone Conversation 7. Adjusting the Volume 8. Safety Instruction 19. Specifications 20. Excluding Problems 2. Storage of HCC03 22. Q & A 23. Declaration of Conformity... -
Page 4: Package List
Headset or Handsfree Profile. 2. Package List Please inspect the product you purchased. Refer to the below package list to make sure there is no shortage or defect inside. The complete package includes the following items: ► HCC03 Bluetooth Carkit .... ► User Guide ........ ► Warranty Card ........ ► Car Charger (INPUT: AC100-240V, 50/ 60Hz, OUTPUT: DC5.V, 300mA) ...... If you find any shortage, please contact the retailer shop where you purchased this product. -
Page 5: Product Introduction
3. Product Introduction Function (Answering/ Ending/ On/ Off) Button 3 LED (Indicator) Light Receiver (Speaker) Microphone Power Interface adapter (charging) Decrease Volume key (-) Increase Volume key (+) 2 Indicator light Speaker Note: ● For first time use, make sure to fully recharge HCC03 battery. - Page 6 4. Charging HCC03 HCC03 comes with a Lithium Polymer battery built-in. . Plug the car charger into the car lighter. 2. Plug the end of the car charger into the power interface adapt- er of HCC03. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red. Note: Charging time is around 90~20 minutes. ● For first time use, make sure to fully recharge HCC03 up to 4 hours. After a long time of not using it (around one month), while recharging, it takes a while for the indicator to turn red. ● While charging, please do not use HCC03. ● Please use the original charger to recharge HCC03. ● When the indicator flashes the red light, it means the battery is low, please recharge HCC03 right away. Plug in charger here ● Please recharge HCC03 within the temperature range of -10 ℃ (+14℉) +45℃ (+113℉).
-
Page 7: Power On/ Off
5. Power On/ Off . Press and hold the function button for 2~3 seconds, the power will turn on after the indicator flashes the blue light 3 times. 2. To turn the power off, press and hold the function button for 2~3 seconds until you see the red indicator flash 3 times. Note: ● While turning HCC03 on, you will hear the “Du Du” sound from the receiver. The blue indicator light will flash 5 times, then 2 times, and after repeating this for 5 times, the indicator will flash the blue light every 3 seconds to come into a standby mode. ● While HCC03 is turned on, it will automatically search for the paired device. Under “ON” mode and within the effective range of 10 meters from HCC03, the indicator will flash the blue light to indicate that it entered the connecting mode. ● When turning HCC03 off, you will hear one “Bi” sound fol- lowed by two “Du” sounds, then the indicator will shut off after... - Page 8 Bluetooth new device searching function. Please follow the instructions of your mobile phone to proceed the operation. 4. When your mobile phone is in the stage of searching a new Bluetooth device, it will find HCC03. 5. Please choose and confirm HCC03. 6. Key in HCC03 Password “0000” and press YES. If the pair- ing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm HCC03 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. HCC03 is in the standby mode, you can start to receive and make call. Note: ● If the pairing is not successful, HCC03 will return to the standby mode, please repeat the pairing process to try the pairing again. ● While pairing, it is better to keep the distance between the mo- bile phone and Headset around 0 cm to m and make sure no metal objects are between.
- Page 9 7. Settling HCC03 Please clipping HCC03 above the speaker vertically to keep HCC03 at the best working position 8. Answering the calls 1. While there is a call coming, wait until you hear the ringing from HCC03 receiver to press the function button to answer the call. 2. If the mobile phone is ringing first, wait until HCC03 is ring- ing, then press the function button.
- Page 10 3. While answering the calls, the blue indicator light flashes 4 times each second. 4. If the mobile phone is ringing and HCC03 is off, turn on HCC03 first, then press the function button to answer the call. 5. If your mobile phone has the function of automatically re- ceiving calls and you already set it up, while the call is com- ing, HCC03 can receive the call automatically without press- ing the function button.
- Page 11 12. Redialing . If your mobile phone supports the redialing function, you can use this function with HCC03 too. 2. Under the standby or connecting mode, press the function button of HCC03 for 2~3 seconds until you hear the “Du” sound to redial the last call. 13. Transferring calls 1. When you are answering the call with HCC03, press the in- crease (+) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be transferred to your mobile...
-
Page 12: Answering Calls
Note: ● To activate this function, your mobile phone must support the Handsfree mode. For more details, please check the manual of your mobile phone. 14. Maintaining calls 1. When you are answering the call with HCC03, press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be maintained. If there is an in- terrupting call coming, HCC03 will answer it automatically. 2. Press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound to end the maintaining call function. Also do this to renew the call. Note: ● To activate this function, please make sure the assigned tele- communications agent provides this service. -
Page 13: Triple Phone Conversation
While you are answering Call 1 from HCC03, and having the interrupting call, you will hear the notifying “Du Du” sound. Press and hold the decrease (-) volume button for 2~3 seconds until you hear one “Du” sound followed by the music, Call 1 will be Hold and the interrupting call (Call 2) will be answered automatically. Note: ● To activate this function, please make sure the assigned tele- communications agent provides this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function. 16. Triple phone conversation 1. While you are answering Call 1 from HCC03 and having the interrupting call, you will hear the notifying “Du Du” sound. Press the decrease (-) volume key for 2~3 seconds until you hear the “Du” sound, Call 1 will be maintained and the inter- rupting call (Call 2) will be answered automatically. -
Page 14: Adjusting The Volume
Note: ● To activate this function, you must make sure the assigned tele- communications agent supports this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function. ● When the triple phone conversation is on board, it can not return to the mode of having only Call or Call 2. ● When the triple phone conversation has not been activated, you can press the decrease (-) volume key for 2~3 seconds to easily transfer the calls between Call and Call 2. ● If Call 1 is maintained and Call 2 is on line, quickly press the function button to end Call 2 and renew Call . 17. Adjusting the Volume During a call, you may adjust the volume of HCC03. . To increase the volume, press the increase (+) volume key. 2. To decrease the volume, press the decrease (-) volume key. Note: ● You will hear the “Du Du” sound while adjusting the volume up to the loudest or lowest. 18. Safety instruction... -
Page 15: Specifications
. Read the manual of HCC03 carefully and use HCC03 cor- rectly by following the instructions. 2. Do not use the cleaning liquid or spray to clean HCC03. 3. Do not disassemble HCC03. If you encounter a problem, contact the retailer shop. ● Urgent handling -If you enconter a problem, turn off HCC03 first. -If the inside components breakdown, please contact the repairing center to ask for immediate support and service. 19. Specification Product Model No. HCC03 Standard Convention/ Signal Output Bluetooth V2.0 + EDR, Class II Frequency Band 2.4GHz ~ 2.4835GHz, ISM Band Talk/ Standby Time Up to 5 hours / Up to 250 hours Supporting Profile Headset & Handsfree Connection Peer to Peer Data Encryption 28 bits encrypted Power Capacity Rechargeable Li-Polymer... -
Page 16: Excluding Problems
Power Supply 5V DC, 00~240V AC adapter Operation Temperature -0 ~ 55 ℃ Facility Saving Temperature -20 ~ 60 ℃ Operation Moisture 0% ~ 90% (non-concrete status) Weight 42 g (battery included) Size 89x50x8 mm Safety Regulation CE, FCC 20. Excluding Problems . You hear no sound coming from HCC03: - Make sure HCC03 has been paired with the other Bluetooth device. - Make sure HCC03 is on. - Make sure the distance between HCC03 and the paired Blue- tooth device is within 0 meters. - Make sure your mobile phone has a good signal. - Some Bluetooth mobile phones support only one Headset, if you pair it with more than one Headset, it may cause the other Headsets being cut off. 21. Storage of HCC03 - Do not disassemble HCC03, it may damage HCC03 acciden- tally or cause the warranty invalidation. - Page 17 - Put HCC03 away from places full of dust. - Use clean and soft fabric to clean the surface HCC03. - Be aware not to let Children play with HCC03, avoiding ac- cidents from happening or damaging the product. - Avoid storing HCC03 in high or extra low temperature. 22. Q & A Q : Why does HCC03 under the “On” mode not work with the Bluetooth mobile phone? A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and HCC03. Q : Can HCC03 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between HCC03 and the mo- bile phone? A : Since HCC03 is certificated by BQB, compliable with Blue- tooth V2.0 + EDR, Class II, the longest working distance is...
- Page 18 Bluetooth device within the working range. When the searching is finished, your mobile phone’s LCD will show HCC03 or some Unknown Devices. Please select and con- firm HCC03. Q : Why my mobile phone could not find HCC03? A : Only while HCC03 is under the pairing mode, your mobile phone can find HCC03. Please follow the instructions of HCC03 manual to proceed the pairing process. Q : Shall we pair HCC03 every time while using it? A : No. The paired devices remain paired regardless of turning the power off, or reopening the devices.
-
Page 19: Declaration Of Conformity
Q : Why is HCC03 suddenly not working? A : () HCC03 might suffer a bad connection get. (2) The Bluetooth function of your mobile phone gets crashed or hanged. It happens occasionally, please turn the Blue- tooth function of the mobile phone off, and renew it or turn off your Bluetooth mobile phone and turn it on again. Q : Why could the voice dialing function of HCC03 not be switched on? A : () Please re-record the voice tag. (2) Some mobile phones do not support the voice dialing func- tion. Please refer to the manual of your mobile phone. 23. Declaration of Conformity FCC: HCC03 is FCC certificated as this device complies with part 5 of the FCC rules. European CE: HCC03 has been manufactured in accordance with the Euro- pean R& TTE directive. It complies with the European Low Voltage Directive 73/23/EEC and the European EMC Direc- tive 89/336/EEC. - Page 20 BQB Qualification: HCC03 Bluetooth Headset, a BQB Qualified Bluetooth prod- uct is listed as qualified End Product in accordance to section 6.2.4 of the PRD. Federal Communications Commission (FCC) Statement 5.2 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 5.05(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 5 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio...
- Page 21 -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: ) this device may not cause interference and 2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure lim- its set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or trans- mitter.
