Huey Chiao HCB10 User Manual

Huey chiao int'l. co. ltd. bluetooth headset user guide
Hide thumbs

Advertisement

Quick Links

Download this manual

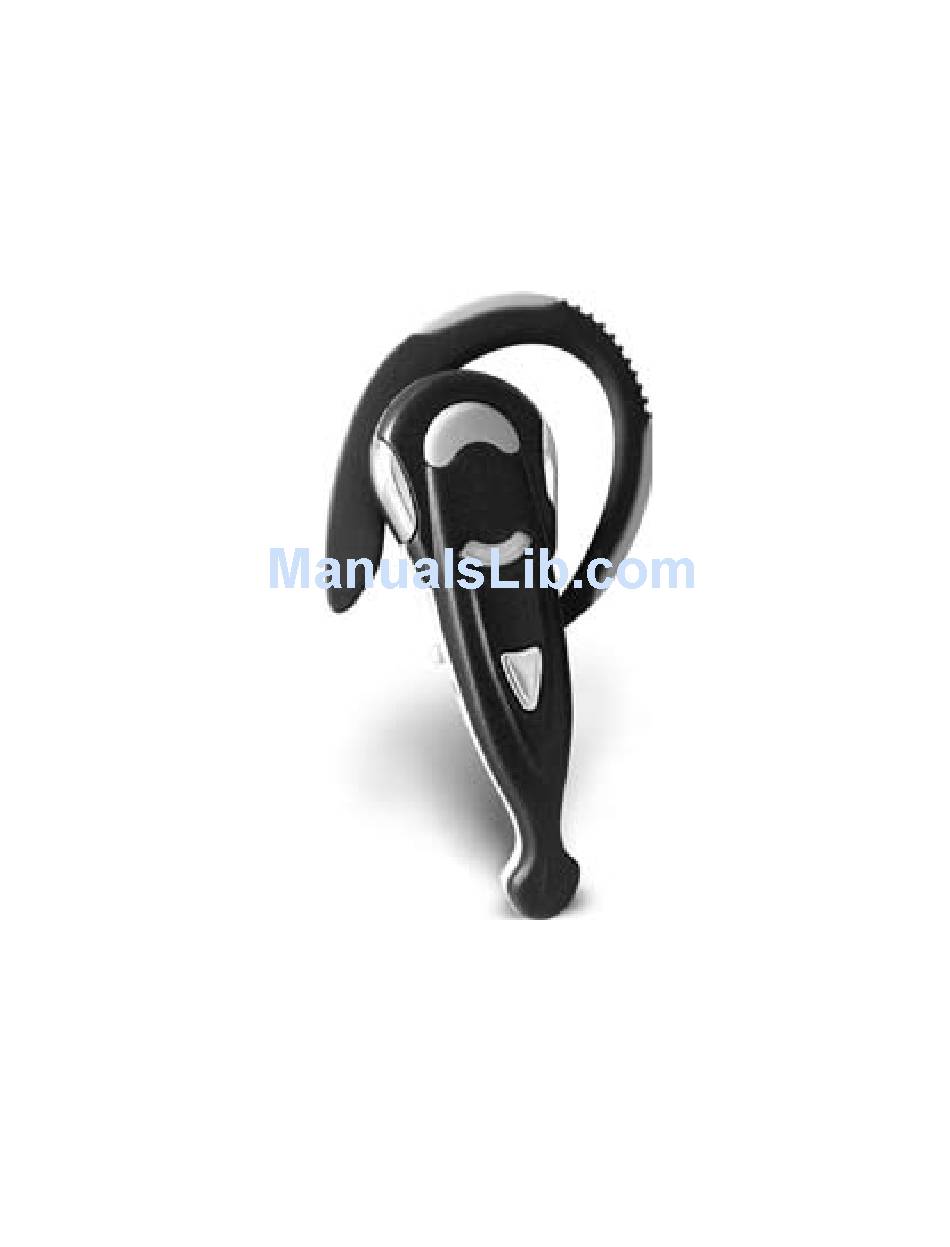

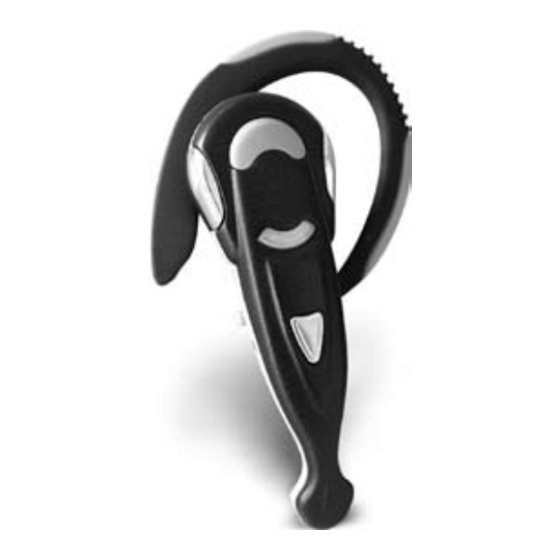

Bluetooth Headset User Guide
HCB10 has a feature of even weight, wearing
it on both sides of your ear comfortably, almost
without feeling it.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCB10 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCB10

Summary of Contents for Huey Chiao HCB10

  • Page 1 Bluetooth Headset User Guide HCB10 has a feature of even weight, wearing it on both sides of your ear comfortably, almost without feeling it.
  • Page 3 Index 1. Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 10. Ending calls 11.
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset HCB10. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. HCB10 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB18/ HCB21), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc.
  • Page 5 Note: ● For first time use, make sure to fully recharge the Headset bat- tery. 4. Charging the Headset HCB10 comes with a Lithium Polymer battery built-in. 1. Plug the travel charger into the power socket. 2. Plug the end of the travel charger into the power interface adapter of the Headset.
  • Page 6 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red. Note: Charging time is around 90~120 minutes. ● For first time use, make sure to fully recharge the Headset up to 4 hours. After a long time of not using it (around one month), while recharging, it takes a while for the indicator to turn red. ● While charging, please do not use the Headset.
  • Page 7 4. When your mobile phone is in the stage of searching a new Bluetooth device, it will find HCB10. 5. Please choose and confirm HCB10. 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm HCB10 again to start the connection.
  • Page 8 (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call. Note: ● If the pairing is not successful, the Headset will return to the standby mode, please repeat the pairing process to try the pair- ing again.
  • Page 9 8. Answering the calls 1. While there is a call coming, wait until you hear the ringing from your Headset receiver to press the function button to answer the call. 2. If the mobile phone is ringing first, wait until the Headset is ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second.
  • Page 10 4. If the mobile phone is ringing and your Headset is off, turn on your Headset first, then press the function button to answer the call. 5. If your mobile phone has the function of automatically re- ceiving calls and you already set it up, while the call is com- ing, your Headset can receive the call automatically without pressing the function button.
  • Page 11 11. Voice dialing 1. If your mobile phone supports the voice dialing function, you can use this function with your Headset too. 2. Under the standby or connecting mode, press the function button of the Headset and follow the mobile phone instruc- tions to proceed with the voice dialing.

  • Page 12: Maintaining Calls

    3. Press either the increase (+) or decrease (-) volume button to end the mute function. 14. Transferring calls 1. When you are answering the call with the Headset, press the increase (+) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be transferred to your mobile phone.
  • Page 13 Also do this to renew the call. Note: ● To activate this function, please make sure the assigned tele- communications agent provides this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function. 16. Ending Call 1 and answering Call 2 While you are answering Call 1 from your Headset, and having the interrupting call, you will hear the notifying “Du Du” sound.
  • Page 14 sound. Press the decrease (-) volume key for 2~3 seconds until you hear the “Du” sound, Call 1 will be maintained and the interrupting call (Call 2) will be answered automatically. 2. To proceed the triple phone conversation while you are an- swering the interrupting call (Call 2), press the increase (+) volume key for 2~3 seconds until you hear the “Du” sound, the maintained Call 1 will be renewed, then the three ends can talk together.
  • Page 15 During a call, you may adjust the Headset’s volume. 1. To increase the volume, press the increase (+) volume key. 2. To decrease the volume, press the decrease (-) volume key. Note: ● You will hear the “Du Du” sound while adjusting the volume up to the loudest or lowest. 19. Safety instruction 1.

  • Page 16: Specification

    Operation Temperature Facility Saving Temperature Operation Moisture Weight Size Safety Regulation 21. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, HCB10 Bluetooth V1.2, Class II 2.4GHz ~ 2.4835GHz, ISM Band Up to 9 hours / Up to 300 hours Headset & Handsfree Peer to Peer 128 bits encrypted Rechargeable Li-Polymer 5V DC, 100~240V AC adapter -10 ~ 55 ℃...
  • Page 17 please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes. It is suggested to fully re- charge the Headset if you use it for the first time.
  • Page 18 - Put the Headset away from places full of dust. - Use clean and soft fabric to clean the Headset’s surface. - Put the Headset into your pocket while not using it. - Be aware not to let Children play with the Headset, avoiding accidents from happening or damaging the product.
  • Page 19 A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can HCB10 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the...
  • Page 20 Q : Why my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mo- bile phone can find the Headset. Please follow the instruc- tions of your Headset manual to proceed the pairing process. Q : Shall we pair the Headset every time while using it? A : No. The paired devices remain paired regardless of turning the power off, reopening the devices or changing the battery.
  • Page 21 15 of the FCC rules. It is built with new housing, extended from HCB08. European CE 0678: HCB10 has been manufactured in accordance with the Euro- pean R& TTE directive. It complies with the European Low Voltage Directive 73/23/EEC and the European EMC Direc-...
  • Page 22 BQB Qualification: HCB10 Bluetooth Headset, a BQB Qualified Bluetooth prod- uct is listed as qualified End Product in accordance to section 6.2.4 of the PRD. 25. Company Website Please visit our company website to know more product de- tails. www.huey-chiao.com www.hcb8.com...
  • Page 23 ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
