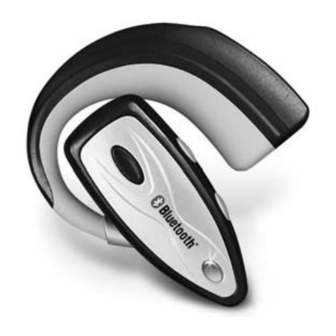

Huey Chiao HCB02 User Manual

Huey chiao int'l. co. ltd. bluetooth headset user guide
Hide thumbs

Advertisement

Quick Links

Download this manual

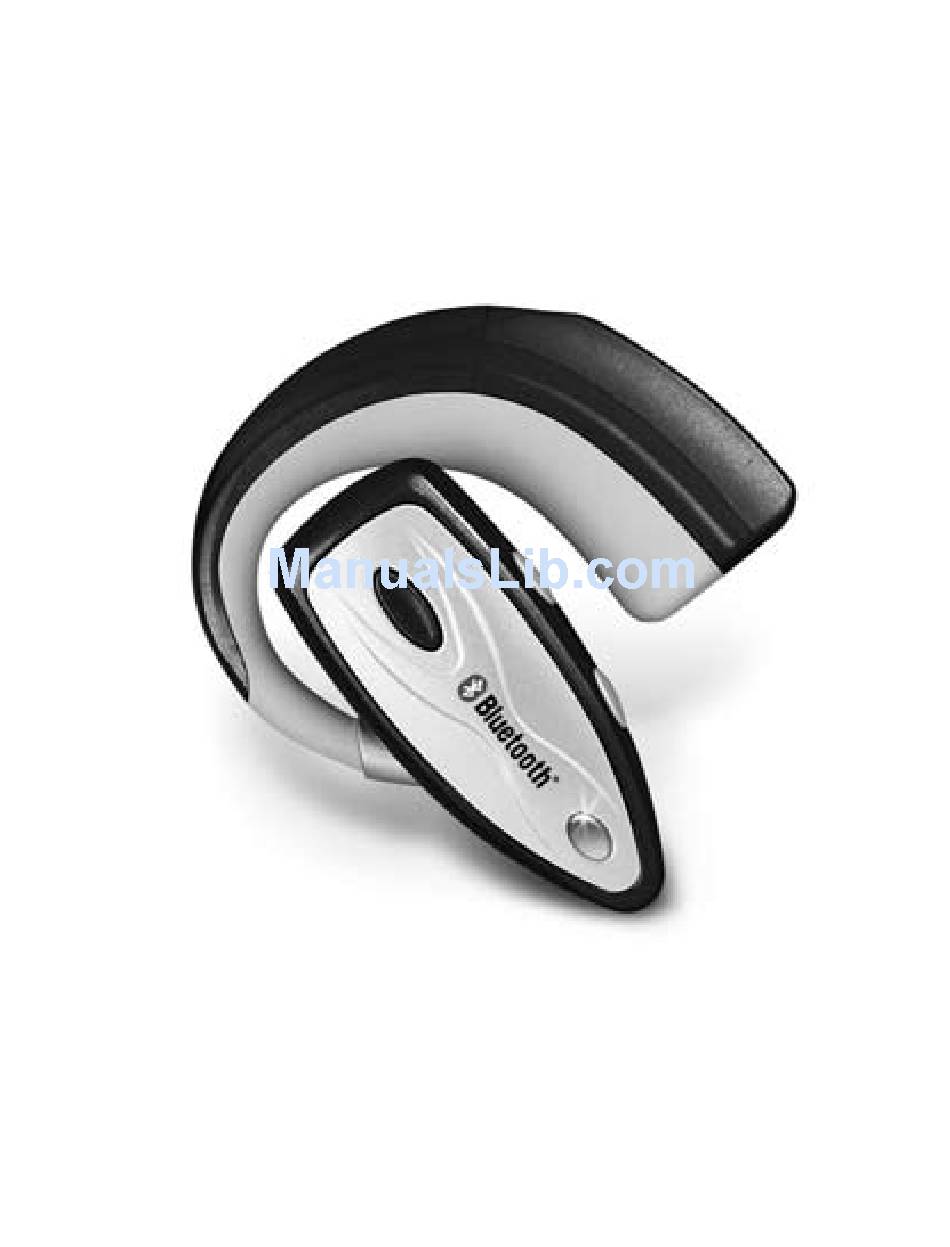

Bluetooth Headset User Guide
HCB02 has a feature of even weight, wearing
it on both sides of your ear comfortably, almost
without feeling it.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCB02 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCB02

Summary of Contents for Huey Chiao HCB02

  • Page 1 Bluetooth Headset User Guide HCB02 has a feature of even weight, wearing it on both sides of your ear comfortably, almost without feeling it.
  • Page 3 Index . Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 0. Ending calls .
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset HCB02. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. HCB02 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB8/ HCB2), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc.

  • Page 5: Product Introduction

    Decrease Volume key (-)  Increase Volume key (+) 2 Jack alimentacion Delante Note: ● For first time use, make sure to fully recharge the Headset bat- tery. 4. Charging the Headset HCB02 comes with a Lithium Polymer battery built-in. Boton 2 Boton 1 Volumen Boton 3 Indicador luminoso Gancho Altavoz Detras...
  • Page 6 . Plug the travel charger into the power socket. 2. Plug the end of the travel charger into the power interface adapter of the Headset. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red. Note: Charging time is around 90~20 minutes. ● For first time use, make sure to fully recharge the Headset up to 4 hours.
  • Page 7 5. Power On/ Off . Press and hold the function button for 2~3 seconds, the power will turn on after the indicator flashes the blue light 3 times. 2. To turn the power off, press and hold the function button for 2~3 seconds until you see the red indicator flash 3 times. Note: ● While turning the Headset on, you will hear the “Du Du” sound from the receiver. The blue indicator light will flash 5 times, then 2 times, and after repeating this for 5 times, the indicator will flash the blue light every 3 seconds to come into a standby mode.
  • Page 8 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm HCB02 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call.
  • Page 9 more details, please check the manual of your Bluetooth device to proceed the operation. ● Even though the following situations happen, the paired devices remain pairing. - The power for one of the devices is off. - The service for one of the devices is off. - One of the devices is re-switched on. 7.
  • Page 10 8. Answering the calls . While there is a call coming, wait until you hear the ringing from your Headset receiver to press the function button to answer the call. 2. If the mobile phone is ringing first, wait until the Headset is ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second. 4.
  • Page 11 Wait to hear the ringing from your receiver, then press and hold the function button for 2~3 seconds until you hear the “Du” sound to refuse the calls. 10. Ending calls . When the conversation is over, press the function button to end calls.
  • Page 12 volume key (-) of the Headset for 2~3 seconds until you hear the “Du” sound to redial the last call. 13. Mute . During a phone conversation, press the decrease (-) and in- crease (+) volume key at the same time until you hear the “Du” sound, then the other end will not hear you. 2. Under the mute mode, you will hear the intermittent “Du” sound.

  • Page 13: Maintaining Calls

    15. Maintaining calls . When you are answering the call with the Headset, press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be maintained. If there is an interrupting call coming, the Headset will answer it automati- cally. 2. Press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound to end the maintaining call function.
  • Page 14 ● To activate this function, please make sure the assigned tele- communications agent provides this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function. 17. Triple phone conversation . While you are answering Call  from your Headset and hav- ing the interrupting call, you will hear the notifying “Du Du”...
  • Page 15 ● When the triple phone conversation is on board, it can not return to the mode of having only Call  or Call 2. ● When the triple phone conversation has not been activated, you can press the decrease (-) volume key for 2~3 seconds to easily transfer the calls between Call  and Call 2. ● If Call 1 is maintained and Call 2 is on line, quickly press the function button to end Call 2 and renew Call . 18.

  • Page 16: Specification

    Talk/ Standby Time Supporting Profile Connection Data Encryption Power Capacity Power Supply Operation Temperature Facility Saving Temperature HCB02 Bluetooth V.2, Class II 2.4GHz ~ 2.4835GHz, ISM Band Up to 9 hours / Up to 300 hours Headset & Handsfree Peer to Peer 28 bits encrypted Rechargeable Li-Polymer 5V DC, 00~240V AC adapter -0 ~ 55 ℃...

  • Page 17: Excluding Problems

    Operation Moisture Weight Size Safety Regulation 21. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes. It is suggested to fully re- charge the Headset if you use it for the first time.
  • Page 18 you pair it with more than one Headset, it may cause the other Headsets being cut off. 22. Storage of the Headset - Using the non-original accessories, it may debase the product’s function, cause the product damage, electrical conflict and the termination of the warranty. - Do not disassemble the Headset, it may damage the Headset accidentally or cause the warranty invalidation.
  • Page 19 A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can HCB02 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the...
  • Page 20 A : Most of the mobile phones are allowed to find more than one Bluetooth device within the working range. When the searching is finished, your mobile phone’s LCD will show HCB02 or some Unknown Devices. Please select and con- firm HCB02. Q : Why my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mo- bile phone can find the Headset. Please follow the instruc-...
  • Page 21 Q : Why could the voice dialing function of the Headset not be switched on? A : () Please re-record the voice tag. (2) Some mobile phones do not support the voice dialing function. Please refer to the manual of your mobile phone. 24. Declaration of Conformity FCC (FCC ID: RL9-HCB08): HCB02 is FCC certificated as this device complies with part...
  • Page 22 5 of the FCC rules. It is built with new housing, extended from HCB08. European CE 0678: HCB02 has been manufactured in accordance with the Euro- pean R& TTE directive. It complies with the European Low Voltage Directive 73/23/EEC and the European EMC Direc- tive 89/336/EEC.
