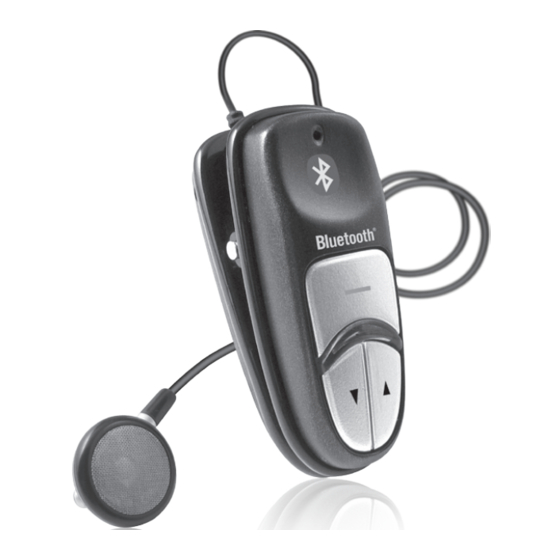

Bluetooth Headset User Guide
HCB42 has a feature of even weight wear it
on both sides of your ear comfortably, almost
without feeling it.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCB42 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCB42

Summary of Contents for Huey Chiao HCB42

  • Page 1 Bluetooth Headset User Guide HCB42 has a feature of even weight wear it on both sides of your ear comfortably, almost without feeling it.
  • Page 3 Index . Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 0. Ending calls .
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset HCB42. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. HCB42 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB8/ HCB2), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc.
  • Page 5 3. Product Introduction Function (Answering/ Ending/ On/ Off) Button 3 LED (Indicator) Light Receiver (Speaker) Microphone Power Interface adapter (charging) Ear Hook Decrease Volume key (-)  Increase Volume key (+) 2 Speaker Note: ● For first time use, make sure to fully recharge the Headset bat- tery. Indicator light...
  • Page 6 4. Charging the Headset HCB42 comes with a Lithium Polymer battery built-in. . Plug the travel charger into the power socket. 2. Plug the end of the travel charger into the power interface adapter of the Headset. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red.
  • Page 7 5. Power On/ Off . Press and hold the function button for 2~3 seconds, the power will turn on after the indicator flashes the blue light 3 times. 2. To turn the power off, press and hold the function button for 2~3 seconds until you see the red indicator flash 3 times. Note: ● While turning the Headset on, you will hear the “Du Du” sound from the receiver. The blue indicator light will flash 5 times, then 2 times, and after repeating this for 5 times, the indicator will flash the blue light every 3 seconds to come into a standby mode.
  • Page 8 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm HCB42 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call.
  • Page 9 the device asks for the Password, please key-in “0000”. For more details, please check the manual of your Bluetooth device to proceed the operation. ● Even though the following situations happen, the paired devices remain pairing. - The power for one of the devices is off. - The service for one of the devices is off. - One of the devices is re-switched on.
  • Page 10 from your Headset receiver to press the function button to answer the call. 2. If the mobile phone is ringing first, wait until the Headset is ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second. 4. If the mobile phone is ringing and your Headset is off, turn on your Headset first, then press the function button to answer the call. 5.
  • Page 11 10. Ending calls . When the conversation is over, press the function button to end calls. 2. Wait until the other end hangs up the phone to end calls. 11. Voice dialing . If your mobile phone supports the voice dialing function, you can use this function with your Headset too.

  • Page 12: Maintaining Calls

    13. Mute . During a phone conversation, press the decrease (-) and in- crease (+) volume key at the same time until you hear the “Du” sound, then the other end will not hear you. 2. Under the mute mode, you will hear the intermittent “Du” sound. 3. Press either the increase (+) or decrease (-) volume button to end the mute function.
  • Page 13 decrease (-) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be maintained. If there is an interrupting call coming, the Headset will answer it automati- cally. 2. Press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound to end the maintaining call function. Also do this to renew the call.
  • Page 14 mobile phones manual to make sure your phone program sup- ports this function. 17. Triple phone conversation . While you are answering Call  from your Headset and hav- ing the interrupting call, you will hear the notifying “Du Du” sound. Press the decrease (-) volume key for 2~3 seconds until you hear the “Du” sound, Call 1 will be maintained and the interrupting call (Call 2) will be answered automatically.
  • Page 15 can press the decrease (-) volume key for 2~3 seconds to easily transfer the calls between Call  and Call 2. ● If Call 1 is maintained and Call 2 is on line, quickly press the function button to end Call 2 and renew Call . 18. Adjusting the Volume During a call, you may adjust the Headset’s volume. .

  • Page 16: Specification

    Data Encryption Power Capacity Power Supply Operation Temperature Facility Saving Temperature Operation Moisture Weight HCB42 Bluetooth V.2, Class II 2.4GHz ~ 2.4835GHz, ISM Band Up to 9 hours / Up to 300 hours Headset & Handsfree Peer to Peer 28 bits encrypted Rechargeable Li-Polymer 5V DC, 00~240V AC adapter -0 ~ 55 ℃...
  • Page 17 Size Safety Regulation 21. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes. It is suggested to fully re- charge the Headset if you use it for the first time.
  • Page 18 22. Storage of the Headset - Using the non-original accessories, it may debase the product’s function, cause the product damage, electrical conflict and the termination of the warranty. - Do not disassemble the Headset, it may damage the Headset accidentally or cause the warranty invalidation. - Put the Headset away from places full of dust. - Use clean and soft fabric to clean the Headset’s surface.
  • Page 19 A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can HCB42 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the...
  • Page 20 A : Most of the mobile phones are allowed to find more than one Bluetooth device within the working range. When the searching is finished, your mobile phone’s LCD will show HCB42 or some Unknown Devices. Please select and con- firm HCB42. Q : Why my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mo- bile phone can find the Headset. Please follow the instruc-...

  • Page 21: Declaration Of Conformity

    (2) Some mobile phones do not support the voice dialing func- tion. Please refer to the manual of your mobile phone. 24. Declaration of Conformity FCC (FCC ID: RL9-HCB08): HCB42 is FCC certificated as this device complies with part 5 of the FCC rules. It is built with new housing, extended from HCB08.
  • Page 22 European CE 0678: HCB42 has been manufactured in accordance with the Euro- pean R& TTE directive. It complies with the European Low Voltage Directive 73/23/EEC and the European EMC Direc- tive 89/336/EEC. BQB Qualification: HCB42 Bluetooth Headset, a BQB Qualified Bluetooth prod- uct is listed as qualified End Product in accordance to section 6.2.4 of the PRD. 25. Company Website Please visit our company website to know more product de- tails.
