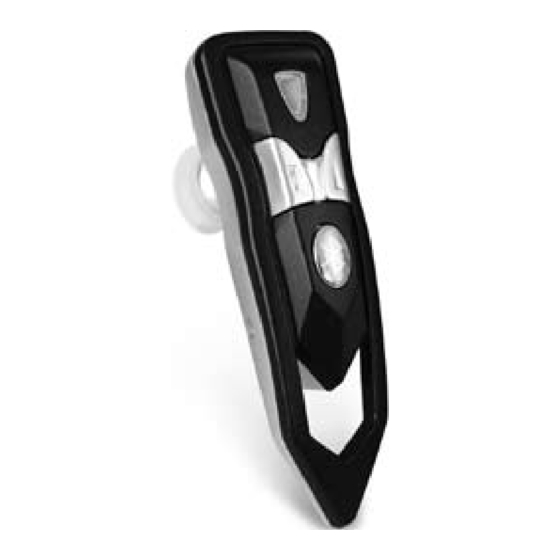

Huey Chiao HCB16 User Manual

Huey chiao int'l. co. ltd. bluetooth headset user guide
Hide thumbs

Advertisement

Quick Links

Download this manual

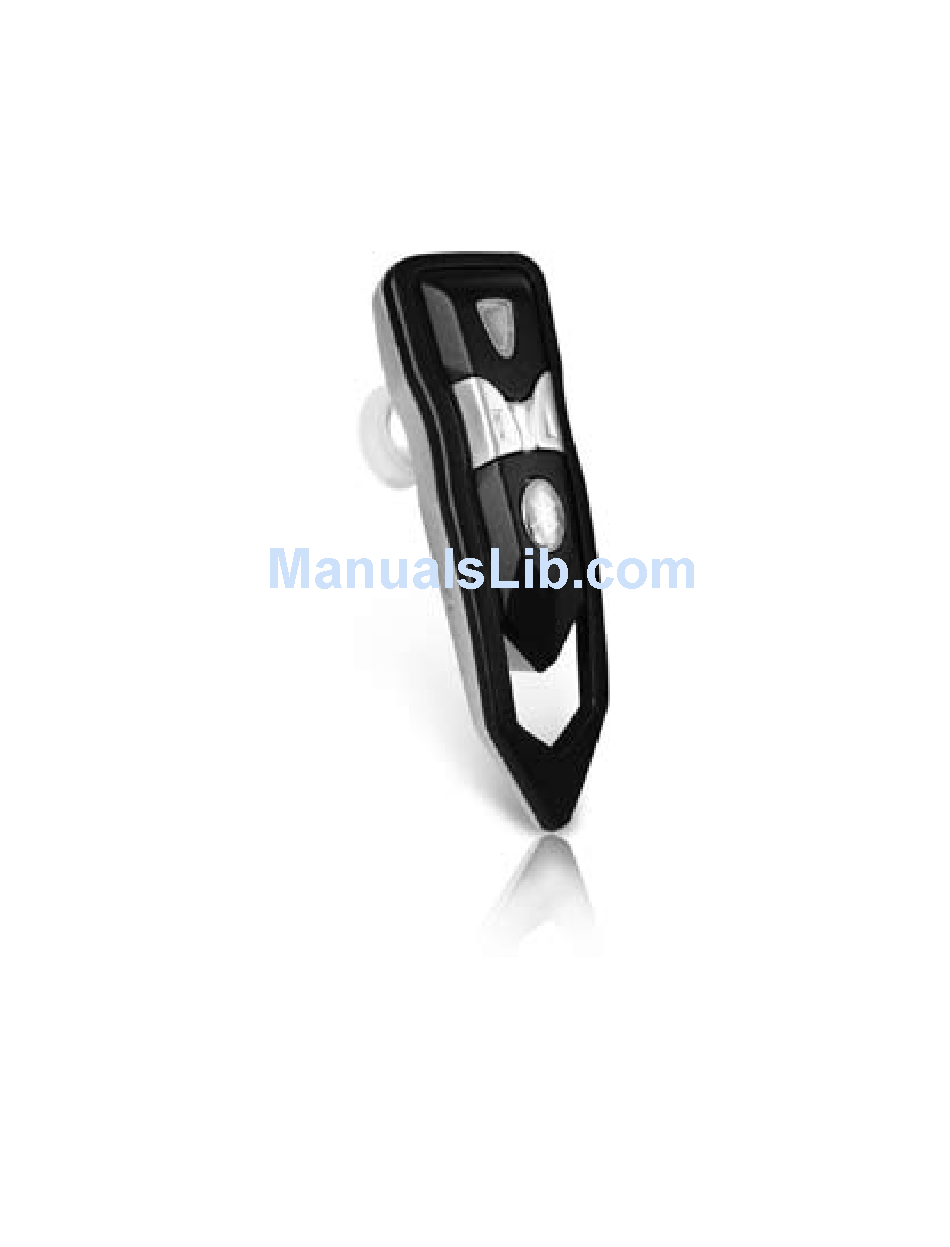

Bluetooth Headset User Guide
HCB16 has a feature of even weight, wearing
it on both sides of your ear comfortably, almost
without feeling it.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCB16 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCB16

Summary of Contents for Huey Chiao HCB16

  • Page 1 Bluetooth Headset User Guide HCB16 has a feature of even weight, wearing it on both sides of your ear comfortably, almost without feeling it.
  • Page 3 Index 1. Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 10. Ending calls 11.
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset HCB16. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. HCB16 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB18/ HCB21), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc.
  • Page 5 Power Interface adapter (charging) Ear Hook Decrease Volume key (-) 1 Increase Volume key (+) 2 Note: ● For first time use, make sure to fully recharge the Headset bat- tery. 4. Charging the Headset HCB16 comes with a Lithium Polymer battery built-in. 1. Plug the travel charger into the power socket.
  • Page 6 2. Plug the end of the travel charger into the power interface adapter of the Headset. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red. Note: Charging time is around 90~120 minutes. ● For first time use, make sure to fully recharge the Headset up to 4 hours. After a long time of not using it (around one month), while recharging, it takes a while for the indicator to turn red.
  • Page 7 3. Ensure your mobile phone has the Bluetooth function and start the Bluetooth new device searching function. Please follow the instructions of your mobile phone to proceed the operation. 4. When your mobile phone is in the stage of searching a new Bluetooth device, it will find HCB16. 5. Please choose and confirm HCB16. 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light...
  • Page 8 For some mobile phones, after pairing you may have to select and confirm HCB16 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call.
  • Page 9 or right ear. 8. Answering the calls 1. While there is a call coming, wait until you hear the ringing from your Headset receiver to press the function button to answer the call. 2. If the mobile phone is ringing first, wait until the Headset is ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second.
  • Page 10 5. If your mobile phone has the function of automatically re- ceiving calls and you already set it up, while the call is com- ing, your Headset can receive the call automatically without pressing the function button. Note: ● For some mobile phones, the ringing sound of the Headset may be the same as the ringing sound of the mobile phone, such as Nokia…...
  • Page 11 2. Under the standby or connecting mode, press the function button of the Headset and follow the mobile phone instruc- tions to proceed with the voice dialing. Note: ● The activation of the voice dialing function will depend on the design of your mobile phone. ● The working range of the Bluetooth Headset is 5 meters indoors and 5~10 meters outdoors. 12. Redialing 1.

  • Page 12: Maintaining Calls

    14. Transferring calls 1. When you are answering the call with the Headset, press the increase (+) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be transferred to your mobile phone. 2. When you are answering the call with the mobile phone, press the function button of the mobile phone to transfer the call to your Headset.
  • Page 13 communications agent provides this service. ● To activate this function, please refer to the instructions of your mobile phones manual to make sure your phone program sup- ports this function. 16. Ending Call 1 and answering Call 2 While you are answering Call 1 from your Headset, and having the interrupting call, you will hear the notifying “Du Du” sound. Press and hold the decrease (-) volume button for 4~5 seconds until you hear one “Du” sound followed by the music, Call 1 will be ended and the interrupting call (Call 2) will be answered automatically.
  • Page 14 2. To proceed the triple phone conversation while you are an- swering the interrupting call (Call 2), press the increase (+) volume key for 2~3 seconds until you hear the “Du” sound, the maintained Call 1 will be renewed, then the three ends can talk together. 3. To end the triple phone conversation, press the function but- ton, then Call 1 and Call 2 will be hanged up together.
  • Page 15 5. Do not disassemble the Headset. If you encounter a problem, contact the retailer shop. ● Urgent handling -If you enconter a problem, turn the Headset off first. -If the inside components breakdown, please contact the repairing center to ask for immediate support and service. 20. Specification Product Model No. HCB16...

  • Page 16: Excluding Problems

    Standard Convention/ Signal Output Frequency Band Talk/ Standby Time Supporting Profile Connection Data Encryption Power Capacity Power Supply Operation Temperature Facility Saving Temperature Operation Moisture Weight Size Safety Regulation 21. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes.
  • Page 17 charge the Headset if you use it for the first time. 3. Does not show the recharging sign: When the battery is com- pletely exhausted or the Headset has not been used for a long time, when charging, the red indicator light will be lit after a few minutes. 4. You hear no sound coming from the Headset: - Make sure the Headset has been paired with the other Blue- tooth device.
  • Page 18 accidents from happening or damaging the product. - Avoid storing the Headset in high or extra low temperature. [Travel charger] - The travel charger is designed for indoor use, please do not use it outdoors. - Connect the travel charger with the correct power supply. - Avoid pulling the cable to take the travel charger off the sock- et, it may damage the travel charger.
  • Page 19 A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can HCB16 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the...
  • Page 20 bile phone can find the Headset. Please follow the instruc- tions of your Headset manual to proceed the pairing process. Q : Shall we pair the Headset every time while using it? A : No. The paired devices remain paired regardless of turning the power off, reopening the devices or changing the battery. Q : Why is the voice from the Headset not clear? A : It may be the following two reasons: (1) Your location has a bad signal, please move to a location with...
  • Page 21 15 of the FCC rules. It is built with new housing, extended from HCB08. European CE 0678: HCB16 has been manufactured in accordance with the Euro- pean R& TTE directive. It complies with the European Low Voltage Directive 73/23/EEC and the European EMC Direc- tive 89/336/EEC.
  • Page 22 25. Company Website Please visit our company website to know more product de- tails. www.huey-chiao.com www.hcb8.com...
  • Page 23 ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
