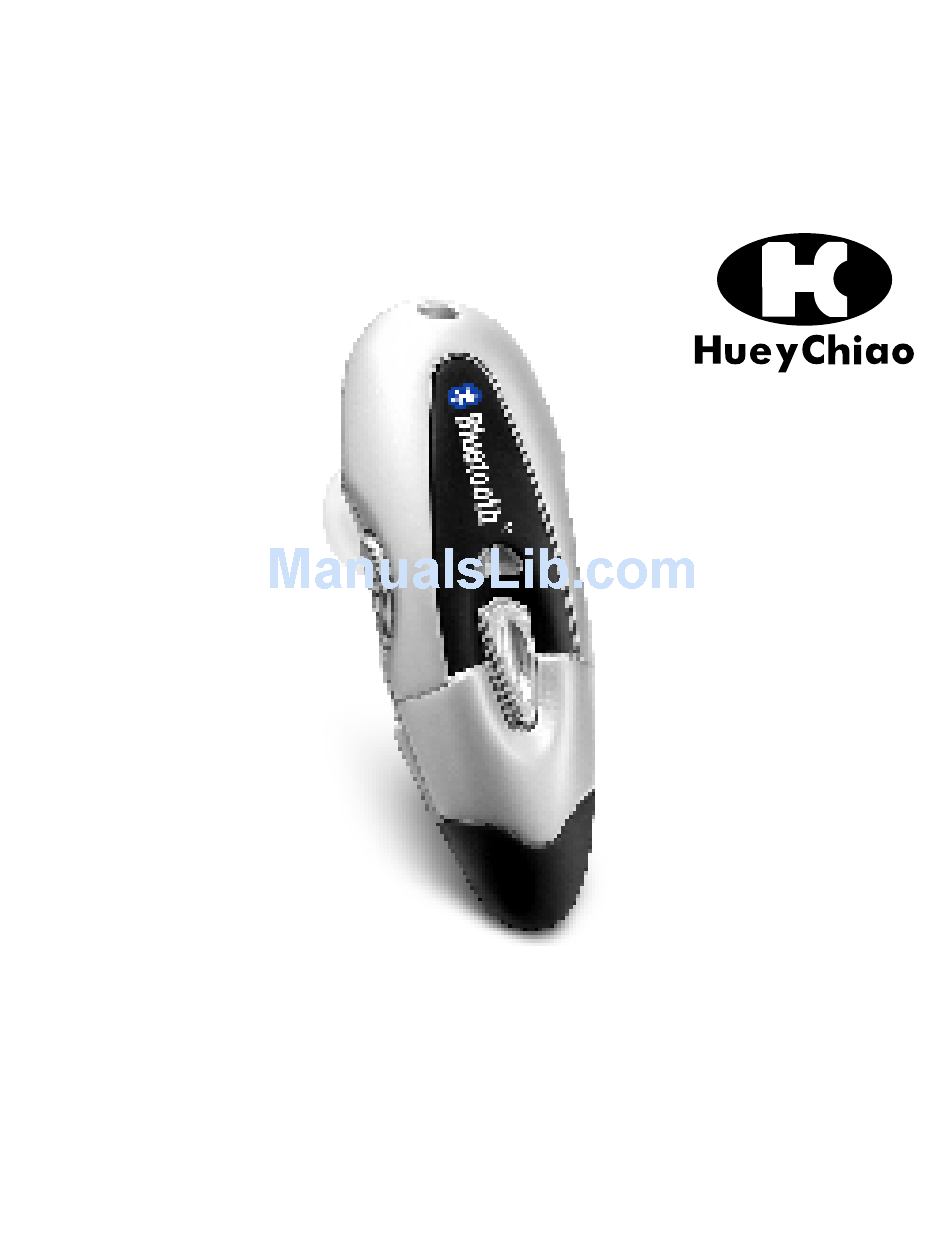

Bluetooth Headset User Guide
HCB19 has a feature of even weight, wearing
it on both sides of your ear comfortably, almost
without feeling it.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCB19 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCB19

Summary of Contents for Huey Chiao HCB19

  • Page 1 Bluetooth Headset User Guide HCB19 has a feature of even weight, wearing it on both sides of your ear comfortably, almost without feeling it.
  • Page 3 Index 1. Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 10. Ending calls 11.
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset HCB19. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. HCB19 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB18/ HCB21), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc.
  • Page 5 Function (Answering/ Ending/ On/ Off) Button 3 LED (Indicator) Light Receiver (Speaker) Microphone Power Interface adapter (charging) Ear Hook Decrease Volume key (-) 1 Increase Volume key (+) 2 Panel Note: ● For first time use, make sure to fully recharge the Headset bat- tery. 4. Charging the Headset HCB19 comes with a Lithium Polymer battery built-in.
  • Page 6 1. Plug the travel charger into the power socket. 2. Plug the end of the travel charger into the power interface adapter of the Headset. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red. Note: Charging time is around 90~120 minutes. ● For first time use, make sure to fully recharge the Headset up to 4 hours.
  • Page 7 will turn on after the indicator flashes the blue light 3 times. 2. To turn the power off, press and hold the function button for 2~3 seconds until you see the red indicator flash 3 times. Note: ● While turning the Headset on, you will hear the “Du Du” sound from the receiver. The blue indicator light will flash 5 times, then 2 times, and after repeating this for 5 times, the indicator will flash the blue light every 3 seconds to come into a standby mode.
  • Page 8 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm HCB19 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call.
  • Page 9 ● Even though the following situations happen, the paired devices remain pairing. - The power for one of the devices is off. - The service for one of the devices is off. - One of the devices is re-switched on. 7. Wearing the Headset According to your preference, adjust the headset on your left or right ear.
  • Page 10 ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second. 4. If the mobile phone is ringing and your Headset is off, turn on your Headset first, then press the function button to answer the call. 5. If your mobile phone has the function of automatically re- ceiving calls and you already set it up, while the call is com- ing, your Headset can receive the call automatically without pressing the function button.
  • Page 11 end calls. 2. Wait until the other end hangs up the phone to end calls. 11. Voice dialing 1. If your mobile phone supports the voice dialing function, you can use this function with your Headset too. 2. Under the standby or connecting mode, press the function button of the Headset and follow the mobile phone instruc- tions to proceed with the voice dialing.

  • Page 12: Maintaining Calls

    “Du” sound, then the other end will not hear you. 2. Under the mute mode, you will hear the intermittent “Du” sound. 3. Press either the increase (+) or decrease (-) volume button to end the mute function. 14. Transferring calls 1. When you are answering the call with the Headset, press the increase (+) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be transferred to your mobile phone.
  • Page 13 cally. 2. Press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound to end the maintaining call function. Also do this to renew the call. Note: ● To activate this function, please make sure the assigned tele- communications agent provides this service.
  • Page 14 17. Triple phone conversation 1. While you are answering Call 1 from your Headset and hav- ing the interrupting call, you will hear the notifying “Du Du” sound. Press the decrease (-) volume key for 2~3 seconds until you hear the “Du” sound, Call 1 will be maintained and the interrupting call (Call 2) will be answered automatically. 2. To proceed the triple phone conversation while you are an- swering the interrupting call (Call 2), press the increase (+) volume key for 2~3 seconds until you hear the “Du” sound, the maintained Call 1 will be renewed, then the three ends...

  • Page 15: Assemble And Disassemble

    function button to end Call 2 and renew Call 1. 18. Adjusting the Volume During a call, you may adjust the Headset’s volume. 1. To increase the volume, press the increase (+) volume key. 2. To decrease the volume, press the decrease (-) volume key. Note: ● You will hear the “Du Du” sound while adjusting the volume up to the loudest or lowest.

  • Page 16: Safety Instruction

    3. If the function button becomes hindered after changing the panel, push the panel towards the top to avoid getting stuck. Assemble and disassemble: 1. Plug the plaque in the buttonhole. 3. Aim at the buttonhole and push slightly. 20. Safety instruction 1. Read the Headset manual carefully and use the headset cor- rectly by following the instructions.

  • Page 17: Specification

    Frequency Band Talk/ Standby Time Supporting Profile Connection Data Encryption Power Capacity Power Supply Operation Temperature HCB19 Bluetooth V1.2, Class II 2.4GHz ~ 2.4835GHz, ISM Band Up to 9 hours / Up to 300 hours Headset & Handsfree Peer to Peer 128 bits encrypted Rechargeable Li-Polymer 5V DC, 100~240V AC adapter -10 ~ 55 ℃...

  • Page 18: Excluding Problems

    Facility Saving Temperature Operation Moisture Weight Size Safety Regulation 22. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes.
  • Page 19 - Some Bluetooth mobile phones support only one Headset, if you pair it with more than one Headset, it may cause the other Headsets being cut off. 23. Storage of the Headset - Using the non-original accessories, it may debase the product’s function, cause the product damage, electrical conflict and the termination of the warranty.
  • Page 20 A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can HCB19 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the...
  • Page 21 A : Most of the mobile phones are allowed to find more than one Bluetooth device within the working range. When the searching is finished, your mobile phone’s LCD will show HCB19 or some Unknown Devices. Please select and con- firm HCB19. Q : Why my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mo- bile phone can find the Headset. Please follow the instruc-...
  • Page 22 has been exceeded. Please make sure the Headset and mobile phone are within the working range of 10 meters and there is no obvious interference between. Q : What can I do if the voice from the Headset is not clear? A : Make sure your mobile phone is in a location with a better signal and increase the volume of the mobile phone or the Headset.
  • Page 23 15 of the FCC rules. It is built with new housing, extended from HCB08. European CE 0678: HCB19 has been manufactured in accordance with the Eu- ropean R& TTE directive. It complies with the European Low Voltage Directive 73/23/EEC and the European EMC Directive 89/336/EEC.
