Huey Chiao HCB37 User Manual

Huey chiao int'l. co. ltd. bluetooth headset user guide
Hide thumbs

Advertisement

Quick Links

Download this manual
Bluetooth Headset User Guide
Hcb37 has a feature of even weight wear it
on both sides of your ear comfortably, almost
without feeling it.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCB37 and is the answer not in the manual?

Questions and answers

Related Manuals for Huey Chiao HCB37

Summary of Contents for Huey Chiao HCB37

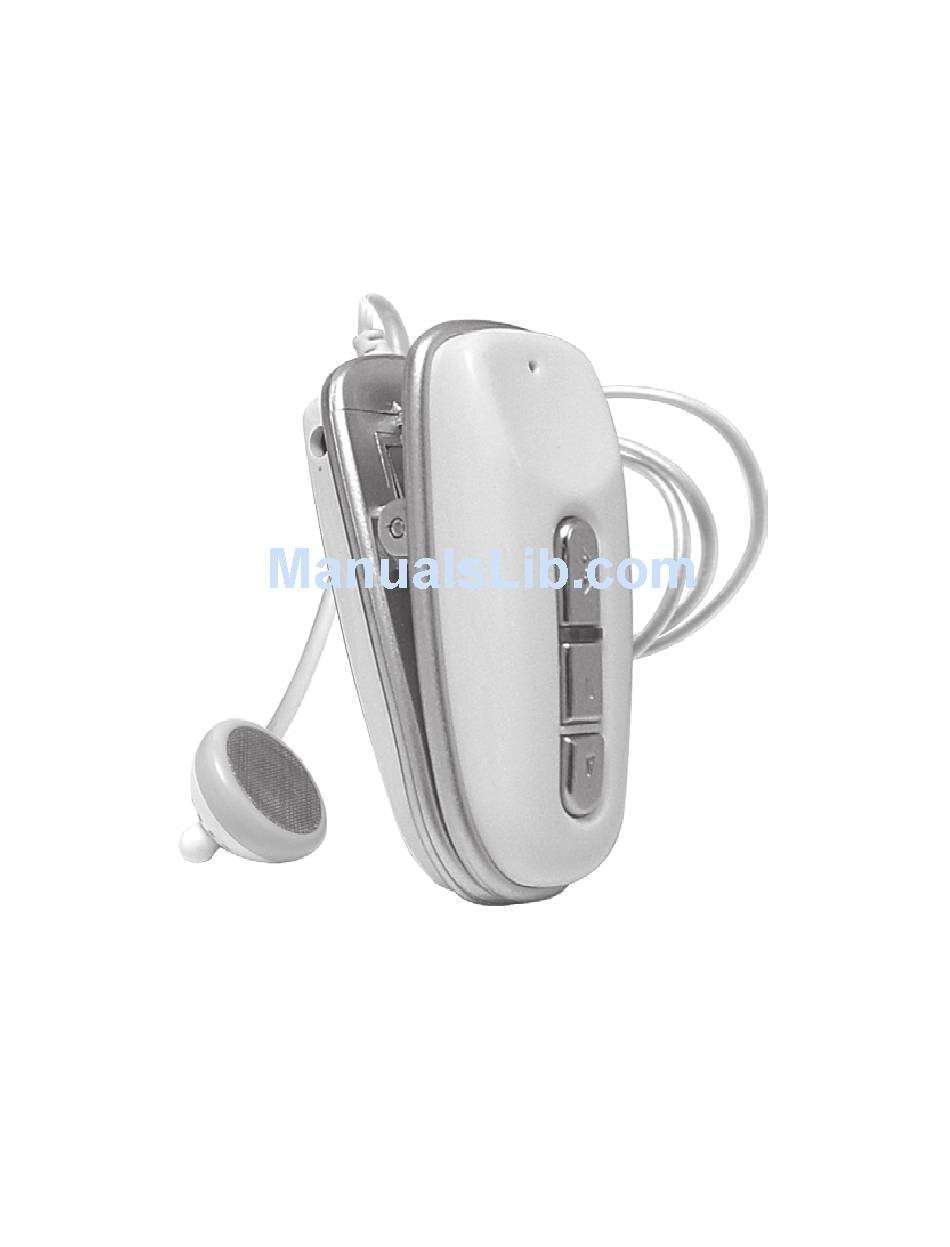

  • Page 1 Bluetooth Headset User Guide Hcb37 has a feature of even weight wear it on both sides of your ear comfortably, almost without feeling it.
  • Page 3 Index . Notice before using 2. Package List 3. Product Introduction 4. Charging the Headset 5. Power On/ Off 6. Pairing the Headset (or any Bluetooth Device) 7. Wearing the Headset 8. Answering calls 9. Refusing calls 0. Ending calls .
  • Page 4 1. Notice before using Thank you for purchasing our Bluetooth Headset Hcb37. First of all, please check to find everything in your package and care- fully study the user guide to know the function details. Hcb37 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone designed with Audio Gateway (HCB8/ HCB2), PDA, desktop and notebook with the USB Bluetooth Dongle plugged-in, etc.
  • Page 5 3. Product Introduction Function (Answering/ Ending/ On/ Off) Button 3 LED (Indicator) Light Receiver (Speaker) Microphone Power Interface adapter (charging) Ear Hook Decrease Volume key (-)  Increase Volume key (+) 2 Note: ● For first time use, make sure to fully recharge the Headset bat- tery. 4. Charging the Headset Plug charger here...
  • Page 6 Hcb37 comes with a Lithium Polymer battery built-in. . Plug the travel charger into the power socket. 2. Plug the end of the travel charger into the power interface adapter of the Headset. 3. While charging, the indicator will turn red; when charging is completed, the red indicator will shut off or flashes red.
  • Page 7 . Press and hold the function button for 2~3 seconds, the power will turn on after the indicator flashes the blue light 3 times. 2. To turn the power off, press and hold the function button for 2~3 seconds until you see the red indicator flash 3 times. Note: ● While turning the Headset on, you will hear the “Du Du” sound from the receiver. The blue indicator light will flash 5 times, then 2 times, and after repeating this for 5 times, the indicator will flash the blue light every 3 seconds to come into a standby mode.
  • Page 8 6. Key in the Headset Password “0000” and press YES. If the pairing is successful, the indicator turns to flash the blue light only. For some mobile phones, after pairing you may have to select and confirm Hcb37 again to start the connection. (Please read your mobile phone manual carefully to take the right steps.) 7. The Headset is in the standby mode, you can start to receive and make call.
  • Page 9 to proceed the operation. ● Even though the following situations happen, the paired devices remain pairing. - The power for one of the devices is off. - The service for one of the devices is off. - One of the devices is re-switched on. 7. Wearing the Headset According to your preference, adjust the headset on your left or right ear.
  • Page 10 2. If the mobile phone is ringing first, wait until the Headset is ringing, then press the function button. 3. While answering the calls, the blue indicator light flashes 4 times each second. 4. If the mobile phone is ringing and your Headset is off, turn on your Headset first, then press the function button to answer the call. 5. If your mobile phone has the function of automatically re- ceiving calls and you already set it up, while the call is com- ing, your Headset can receive the call automatically without pressing the function button.
  • Page 11 . When the conversation is over, press the function button to end calls. 2. Wait until the other end hangs up the phone to end calls. 11. Voice dialing . If your mobile phone supports the voice dialing function, you can use this function with your Headset too.

  • Page 12: Maintaining Calls

    crease (+) volume key at the same time until you hear the “Du” sound, then the other end will not hear you. 2. Under the mute mode, you will hear the intermittent “Du” sound. 3. Press either the increase (+) or decrease (-) volume button to end the mute function. 14. Transferring calls . When you are answering the call with the Headset, press the increase (+) volume key for 2~3 seconds until you hear one “Du” sound, then the call will be transferred to your mobile phone.
  • Page 13 interrupting call coming, the Headset will answer it automati- cally. 2. Press the decrease (-) volume key for 2~3 seconds until you hear one “Du” sound to end the maintaining call function. Also do this to renew the call. Note: ● To activate this function, please make sure the assigned tele- communications agent provides this service.
  • Page 14 17. Triple phone conversation . While you are answering Call  from your Headset and hav- ing the interrupting call, you will hear the notifying “Du Du” sound. Press the decrease (-) volume key for 2~3 seconds until you hear the “Du” sound, Call 1 will be maintained and the interrupting call (Call 2) will be answered automatically. 2. To proceed the triple phone conversation while you are an- swering the interrupting call (Call 2), press the increase (+) volume key for 2~3 seconds until you hear the “Du” sound, the maintained Call  will be renewed, then the three ends...
  • Page 15 ● If Call 1 is maintained and Call 2 is on line, quickly press the function button to end Call 2 and renew Call . 18. Adjusting the Volume During a call, you may adjust the Headset’s volume. . To increase the volume, press the increase (+) volume key. 2. To decrease the volume, press the decrease (-) volume key. Note: ● You will hear the “Du Du” sound while adjusting the volume up to the loudest or lowest.

  • Page 16: Specification

    Power Capacity Power Supply Operation Temperature Facility Saving Temperature Operation Moisture Weight Size Safety Regulation Hcb37 Bluetooth V.2, Class II 2.4GHz ~ 2.4835GHz, ISM Band Up to 9 hours / Up to 300 hours Headset & Handsfree Peer to Peer 28 bits encrypted Rechargeable Li-Polymer 5V DC, 00~240V AC adapter -0 ~ 55 ℃...
  • Page 17 21. Excluding Problems 1. The Headset flashes the red indicator light: The battery is low, please recharge your Headset. 2. If after recharging for 20 minutes, the Headset does not turn on: For initial use, the power will be on after charging the Headset at least for 40 minutes. It is suggested to fully re- charge the Headset if you use it for the first time.
  • Page 18 - Do not disassemble the Headset, it may damage the Headset accidentally or cause the warranty invalidation. - Put the Headset away from places full of dust. - Use clean and soft fabric to clean the Headset’s surface. - Put the Headset into your pocket while not using it. - Be aware not to let Children play with the Headset, avoiding accidents from happening or damaging the product.
  • Page 19 A : You must activate the Bluetooth function of your mobile phone and finish the pairing between your mobile phone and Head- set. Q : Can Hcb37 work with any of the mobile phones? A : No, this Headset works only with Bluetooth mobile phones. Q : How far is the working distance between the Headset and the...
  • Page 20 Q : Why my mobile phone could not find the Headset? A : Only while your Headset is under the pairing mode, your mo- bile phone can find the Headset. Please follow the instruc- tions of your Headset manual to proceed the pairing process. Q : Shall we pair the Headset every time while using it? A : No. The paired devices remain paired regardless of turning the power off, reopening the devices or changing the battery.
  • Page 21 Please refer to the manual of your mobile phone. 24. Declaration of Conformity FCC (FCC ID: RL9-HCB08): Hcb37 is FCC certificated as this device complies with part 5 of the FCC rules. It is built with new housing, extended from HCB08.
  • Page 22 BQB Qualification: Hcb37 Bluetooth Headset, a BQB Qualified Bluetooth product is listed as qualified End Product in accordance to section 6.2.4 of the PRD. 25. Company Website Please visit our company website to know more product de- tails. www.huey-chiao.com www.hcb8.com...
