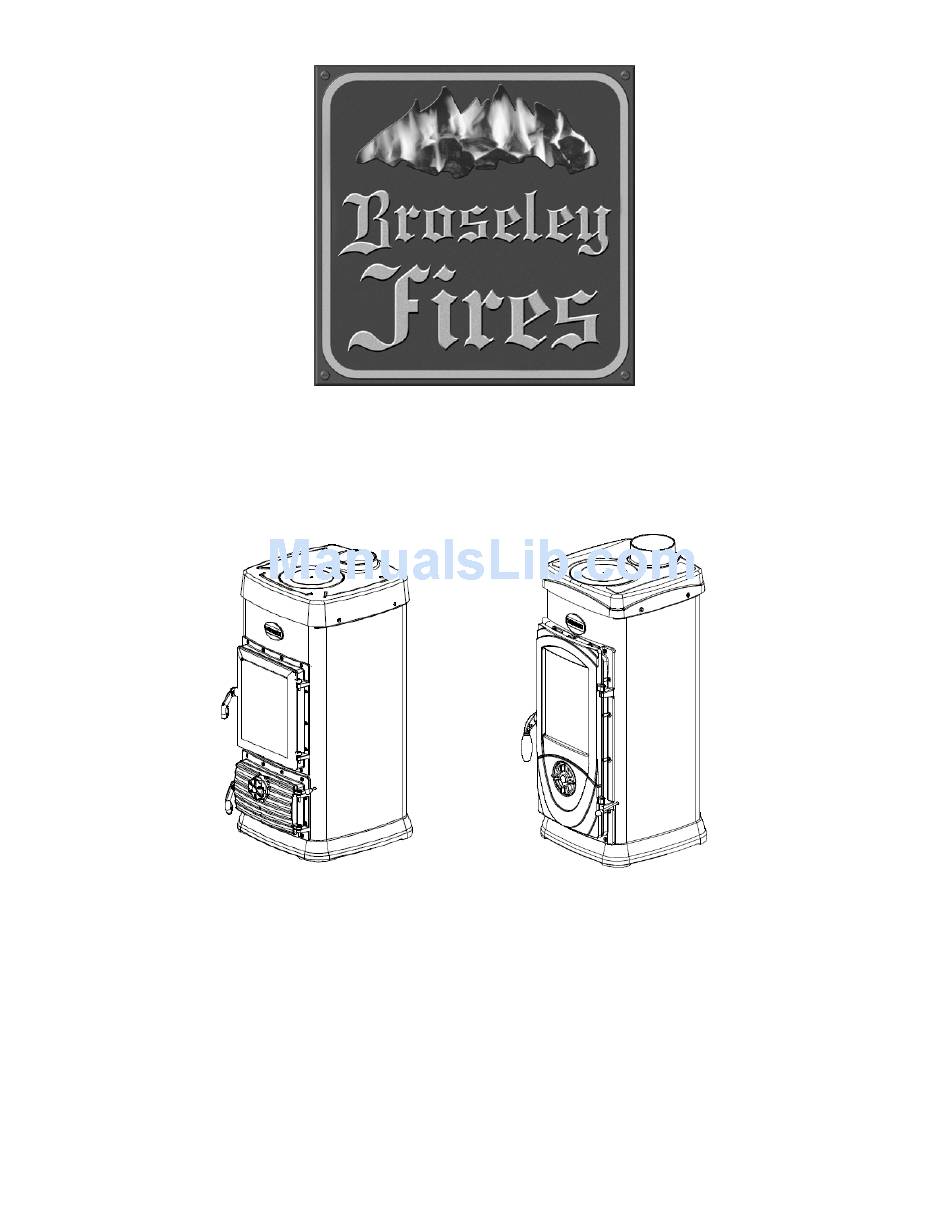

INSTALLATION AND OPERATION
INSTRUCTIONS FOR WOODBURNING:
MAX, JUNIOR, SUPER MAX & SUPER JUNIOR
TESTED TO EN 13240
This appliance must be installed and commissioned by a fully qualified, registered engineer.
A "Declaration of Completion" Certificate must be obtained for the installation and retained by the end user.
Failure to comply with these requirements may void the warranty.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING, OPERATING OR SERVICING
THIS APPLIANCE. THESE APPLIANCES ARE DESIGNED TO BURN WOOD ONLY
TJ-issue-09-B
© 2008-2009 Broseley Fires Ltd
Advertisement
Table of Contents
Related Manuals for Broseley MAX
Summary of Contents for Broseley MAX
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR WOODBURNING: MAX, JUNIOR, SUPER MAX & SUPER JUNIOR TESTED TO EN 13240 This appliance must be installed and commissioned by a fully qualified, registered engineer. A “Declaration of Completion” Certificate must be obtained for the installation and retained by the end user.
- Page 2 The tar and creosote deposits in the chimney will fuel a chimney fire. Please note that it is a requirement under the Broseley Fires Ltd’s warranty system that the installation of the stove is carried out under by a Competent Person registered with a Government approved Competent Persons Scheme.
-
Page 3: Table Of Contents
POSITION OF THE INTERNAL BAFFLE PLATE (JUNIOR) APPENDIX B POSITION OF THE INTERNAL BAFFLE PLATE (MAX) APPENDIX C POSITION OF THE INTERNAL BAFFLE PLATE (SUPER MAX & JUNIOR) APPENDIX D TECHNICAL DRAWING FOR THE MAX APPENDIX E TECHNICAL DRAWING FOR THE JUNIOR... -
Page 4: Technical Data
HEATABLE AREA (VOLUME) The heating capacity of rooms according to EN13240: 2001 + A2: 2004 for buildings in which the insulation is below the levels recommended in regulations is: JUNIOR SUPER MAX SUPER JNR (30 kcal/m3) -Well insulated: 172m³ 143m³... -
Page 5: Technical Description
The appliance is engineered using the latest manufacturing techniques and modern computerized machinery. THE ‘AIR’ CONTROL MAX & JUNIOR The stove is fitted with an air control that adjusts the flow of combustion air into the unit. It is very important that the control is fully understood in order to achieve the best results from your stove. -
Page 6: The 'Air' Control
THE ‘AIR’ CONTROL SUPER MAX & SUPER JUNIOR The stove is fitted with an air control that adjusts the flow of combustion air into the unit. It is very important that the control is fully understood in order to achieve the best results from your stove. -
Page 7: The 'Riddling Grate
20%. Coal should never be burnt in these appliances The grates and internal components of these appliances have not been developed for burning . Never burn ‘enhanced’ fuels such as ‘Petrocoke’. © 2008-2009 Broseley Fires Ltd... -
Page 8: A Burning Wood
These will then flare up again when exposed to oxygen. Use a metal container to carry any ash. For your own protection, a pair of heat proof gloves and a dust mask may be necessary. © 2008-2009 Broseley Fires Ltd... -
Page 9: Wood Ash Disposal
Only clean the glass when the appliance is cold. There are various glass cleaners you can buy at stove shops that are specially designed to remove hydrocarbon (soot) and fly ash (mineral) deposits from the glass. Follow the © 2008-2009 Broseley Fires Ltd... -
Page 10: F Broken Glass
THE APPARATUS MUST NOT BE MODIFIED. ONLY SPARE PARTS EXPRESSLY AUTHORISED AND SOLD BY BROSELEY FIRES LTD. CONSULT YOUR LOCAL AUTHORISED DEALER FOR ADVICE. Please refer to the drawings at the end of these instructions. © 2008-2009 Broseley Fires Ltd... -
Page 11: Installation Of The Appliance
Tar stains may appear on the surface of the chimney breast inside the property. The guarantee is void if any part of the installation is found to be illegal. © 2008-2009 Broseley Fires Ltd... -
Page 12: A Flue Termination
The hearth must be level and made of a suitably robust, non combustible material. The positioning of the appliance and dimensions of the hearth must comply with current building regulations. Manufacturer’s instructions relating to clearances must be adhered to. © 2008-2009 Broseley Fires Ltd... -
Page 13: Stove Clearances
100 mm to the rear and 150mm on both sides. • Please refer to BUILDING REGULATIONS if further information is required. 200 mm 200 mm 200 mm FIG. 5 A CLEARANCES TO COMBUSTIBLE SURFACES 50 mm 150 mm 150 mm 225 mm © 2008-2009 Broseley Fires Ltd... -
Page 14: Additional Ventilation
• Please comply with the technical data given in this instruction manual. • Illegal installations are not covered by any sort of guarantee. © 2008-2009 Broseley Fires Ltd... - Page 15 APPENDIX A POSITION OF THE INTERNAL BAFFLE PLATE (JUNIOR) JUNIOR SLICE THROUGH CENTRE OF STOVE APPENDIX B POSITION OF THE INTERNAL BAFFLE PLATE (MAX) SLICE THROUGH CENTRE OF STOVE © 2008-2009 Broseley Fires Ltd...
- Page 16 APPENDIX C POSITION OF THE INTERNAL BAFFLE PLATE (SUPER MAX & SUPER JUNIOR © 2008-2009 Broseley Fires Ltd...
- Page 17 APPENDIX D TECHNICAL DRAWING FOR THE MAX APPENDIX E TECHNICAL DRAWING FOR THE JUNIOR © 2008-2009 Broseley Fires Ltd...
- Page 18 APPENDIX F TECHNICAL DRAWING FOR THE SUPER JUNIOR APPENDIX G TECHNICAL DRAWING FOR THE SUPER MAX © 2008-2009 Broseley Fires Ltd...
- Page 19 COMPANY ADDRESS: POSTCODE: 5TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 6TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: © 2008-2009 Broseley Fires Ltd...
- Page 20 Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
