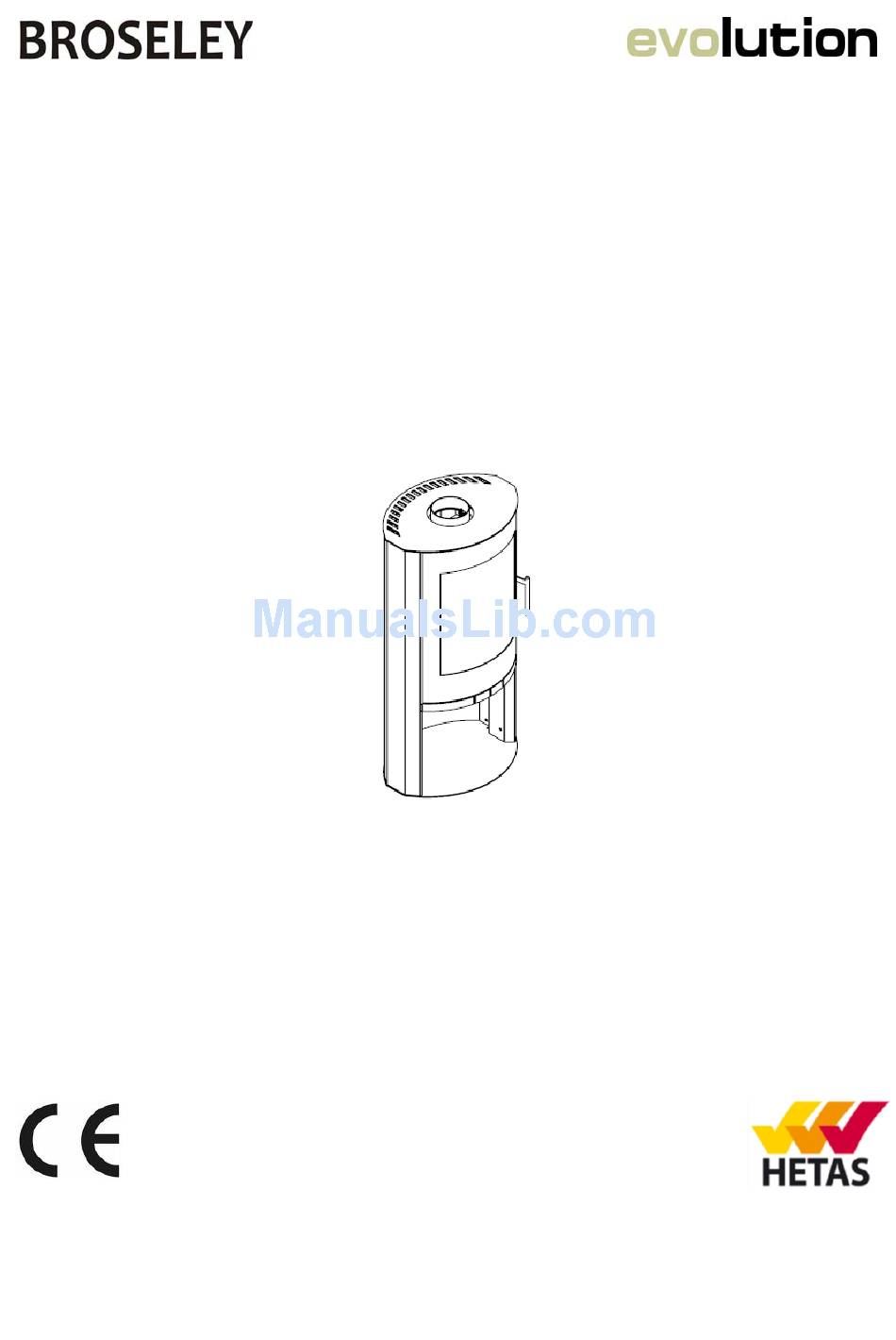

- Page 1 Installation & Operating Instructions Covering Models: Flair 8 (EV-CN8-SD & EV-CN8-LS) Wood Burning Stoves Tested to EN 13240 These appliances must be installed and commissioned by a HETAS registered engineer Flair 8 EV-CN8-SD/LS Issue 1...
-
Page 2: Table Of Contents
Kindling Stage Burning Wood Warning Notes Maintenance Ash Removal Chimney Fires Chimney Sweeping General Stove Cleaning Glass Cleaning Annual Stove Service Prolonged Periods of Shut-down Trouble-shooting Commissioning Statement Spare Parts EC Declaration Annual Service Record Warranty Flair 8 EV-CN8-SD/LS Issue 1... -
Page 3: Introduction
A1 2010 as an alternative means to achieve an equivalent level of performance to that obtained following the guidance given in Approved Document J. Please note that it is a requirement under the Broseley Fires warranty system that the installation of the stove is carried out by a Competent Person registered with a Government approved Competent Persons Scheme. -
Page 4: Health & Safety
Stove Surfaces It is important to note that all surfaces of the stove will become extremely hot during operation, it is therefore highly recommended that no surface or control is touched without appropriate heat proof gloves. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 5: Specifications
Specifications In the UK these stoves have been approved by HETAS Ltd as intermittent heating appliances for burning wood logs only. Flair 8 EV-CN8-SD + EV-CN8-LS Nominal Heat Output (Wood) to Room kW Efficiency % Weight Kg SD 155.5 LS 150.5... -
Page 6: Dimensions
Dimensions ALL DIMENSIONS ARE IN MILIMETRES Flair 8 EV-CN8-SD/LS Issue 1... -
Page 7: Hearth Requirements & Clearances
A combustible material clearance is given to prevent damage to any items that may be affected by heat. Stove Clearances Above Non-Combustible 100mm 100mm 300mm 200mm Combustible 200mm 250mm 300mm 600mm Flair 8 EV-CN8-SD/LS Issue 1... -
Page 8: Chimney Requirements
All joints in the connection between the stove and the chimney must be made gastight using fire cement and where necessary fire-proof rope infill. Please refer to British Standards BS EN 15287-1:2007 design, installation and commissioning of chimneys for additional requirements. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 9: Combustion Air Requirements
It is necessary to install a wall vent to provide the necessary combustion air and to prevent the depletion of oxygen in the room. The above ventilation requirement is per product which means two products cannot share one vent. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 10: Assembly
Assembly The diagram below shows the stove with all internals taken out. To install these parts follow the numbered sequence above, to un-install simply follow the sequence in reverese. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 11: Commissioning/Handover
See “Commission Statement”. CO Alarm Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm sounds unexpectedly, follow the instructions given in section “Warning Notes” under “Fumes”. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 12: Controls Layout
The diagram below shows the position of the two air controls, these controls need to be operated correctly to control the combustion rate of the stove. The main door handle on these appliances will get hot. Use the gloves provided at all times whilst operating the appliance. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 13: Controls Explained
Also, deposits will form on the back of the glass when the stove is operated on low heat for extended periods (where fuel is only just smouldering). Ash Pan The ash pan should be removed when the stove is cold and not alight. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 14: Recommended Fuels
Do NOT Burn Pallet Wood, or any other wood containing glue, paint or other chemicals. This fuel will lead to damage to your appliance. Any such damage will not be covered under the manufacturer’s warranty. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 15: Lighting The Stove
15-20 minutes. It is critical that you do not leave the stove during the entire lighting and kindling stage. See Burning wood section for the next steps in starting a new fire. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 16: Burning Wood
Try to avoid closing the Secondary air control fully (as this will cause the stove to fill up with smoke) If you no longer want to keep the fire going simply allow it burn out. Warning Do not stack wood any higher than 100mm Flair 8 EV-CN8-SD/LS Issue 1... -
Page 17: Warning Notes
(d) Do not attempt to relight the fire until the cause of the fume emission has been identified and corrected. If necessary seek expert advice. The most common cause of fume emission is flueway or chimney blockage. For your own safety these must be kept clean at all times. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 18: Maintenance
It is important that the flue connection, any appliance baffles or throat plates and the chimney are swept prior to lighting up after a prolonged shutdown period. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 19: Trouble-Shooting
• The chimney has excessive draw (seek installers advice on this point). • The fibre rope seal between the door and the glass may be leaking. Tighten or replace. • The fibre rope on doors and glass has worn out. Replace. Flair 8 EV-CN8-SD/LS Issue 1... -
Page 20: Commissioning Statement
Smoke spillage test performed on stove: Stove controls fully explained to end user: Correct fuels explained to end customer: CO Alarm fitted and tested: Instruction booklet & HETAS certificate handed to end user: Signature:__________________________ Print Name:___________________________ Flair 8 EV-CN8-SD/LS Issue 1... -
Page 21: Spare Parts
(18) Secondary Air Control (19) Primary Air Control (20) Secondary Air Rod (21) Primary Air Rod (22) Secondary Air Flap (23) Primary Air Flap (24) Deflector (25) Right Side (26) Left Side (27) Stove Body (28) Lid (29) Spigot (30) Body (31) Hinges (32) Hinge Pins Flair 8 EV-CN8-SD/LS Issue 1... -
Page 22: Ec Declaration
EN 13240 CE MARKING INFORMATION - See Specifications Particulate/Smoke Conditions Exempt As the Manufacturer's authorised representative established within the EEC, Broseley Fires Ltd Declare sole responsibility that the product for mentioned follows the provisions of the directives above. 13/11/2013 Shrewsbury UK... -
Page 23: Annual Service Record
REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 5TH YEAR SERVICE completion date: SERVICE ENGINEER: REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 6TH YEAR SERVICE completion date: SERVICE ENGINEER: REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: Flair 8 EV-CN8-SD/LS Issue 1... -
Page 24: Warranty
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
