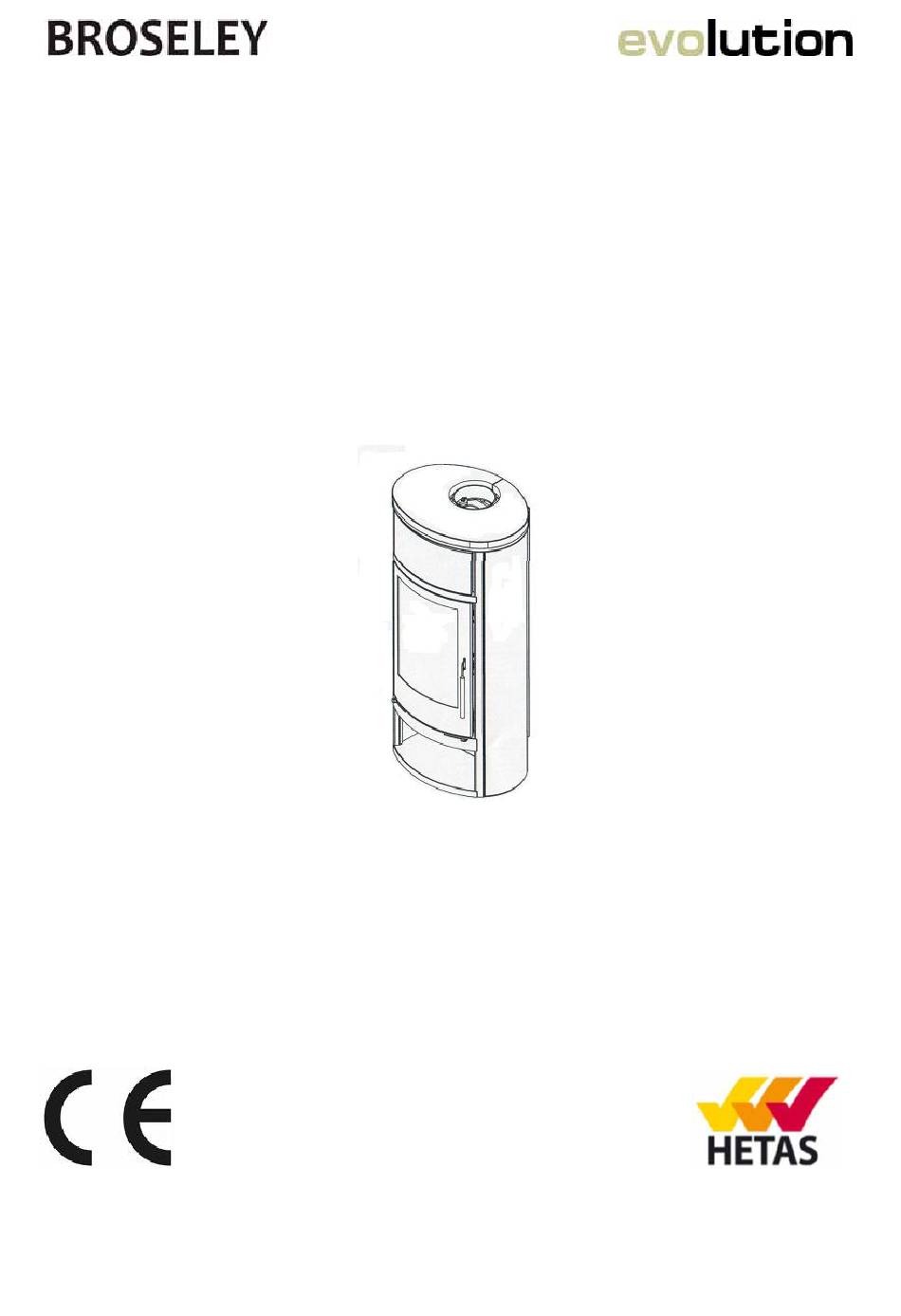

- Page 1 Installation & Operating Instructions Covering Model: eVolution 8 Wood Burning Boiler Stove Tested to EN 13240 These appliances must be installed and commissioned by a HETAS registered engineer GB0113 Issue 4...
-
Page 2: Table Of Contents
Contents Important Information Health & Safety Specifications Packing List Dimensions Hearth Requirements & Clearances Chimney Requirements Combustion Air Requirements Assembly Plumbing Advice Plumbing Maintenance Plumbing Diagrams Commissioning & Handover Stove Operation Controls Layout Controls Explained Recommended Fuels Lighting the Stove Kindling Stage Burning Wood Warning Notes... -
Page 3: Important Information
Important Information In order for the this product to carry full warranty and support from Broseley Fires, the installation MUST be designed, installed and commissioned by a competent person with one of the following minimum technical competence sets Set One Installer has HETAS Wet H004 and G3 Unvented certificates. -
Page 4: Health & Safety
Health & Safety Special care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act are met. Installation This appliance MUST be installed and commisioned by a HETAS registered installer in England and Wales and a fully qualified Heating Engineer in Scotland and Ireland. -
Page 5: Specifications
Specifications In the UK these stoves have been approved by HETAS Ltd as intermittent heating appliances for burning Hardwood logs only. Nominal total heat output Nominal heat output to room (kW) Nominal heat output to water (kW) Flue diameter MINIMUM 150mm/6”... -
Page 6: Dimensions
Dimensions All dimensions are in millimetres GB0113 Issue 4... -
Page 7: Hearth Requirements & Clearances
Hearth Requirements & Clearances This appliance is suitable for non-combustible hearths with a minimum thickness of 12mm, they do not require a full constructional hearth. Your stove must be installed on a solid, level non-combustible hearth. The hearth protrusion in front of the stove to carpets or wooden floors must be at least 300mm. As it is possible, that on opening the door of the stove for fuel to fall out, a fender must be fitted if the hearth is flush with the carpet. -
Page 8: Chimney Requirements
Chimney Requirements This appliance must not be fitted into a chimney serving another heating appliance. It is most important that there is no obstruction in the flue or chimney. Please ensure that any existing chimney is clear of obstruction and swept clean immediately before installation of the new stove. -
Page 9: Combustion Air Requirements
Combustion Air Requirements In order for the stove to perform efficiently and safely there should be an adequate air supply into the room in which the stove is installed to provide combustion air. This is particularly necessary in modern houses where drafts have been almost eliminated by double glazing etc. -
Page 10: Assembly
Assembly The images below shows the sequence for removing the firebricks. 1. Lift and rotate the lid to one side to reveal the top fixings for the side panels, slacken and repeat for both sides. 10mm spanner required. 2. In the base of the stove (on each side) you will find the lower fixing for the side panels, these will also need to be slackened. -
Page 11: Plumbing Advice
Please note any installations carried out by installers not meeting these requirements will result in void product warranty and will not be supported by Broseley Fires. If connected to an unvented heating system, this appliance must (as a minimum) have the following components installed on the system to ensure the safe operation of the appliance: 1) WATTS STS20 –... - Page 12 Plumbing Advice The eVolution 8 Stove differs from normal boiler stoves in the fact that it can be installed on an open vented or sealed heating system. When installing the appliance on a sealed system, it is necessary to install added safety features which allow the stove to be installed safely.
- Page 13 Plumbing Advice Safety blow off The safety blow off valve acts as a final safety option in case of failure of the SCWS. This is supplied incorporating a 3bar pressure relief valve, a pressure gauge and an automatic air vent. This must be placed within 1 meter of the appliance. The safety blow off discharge pipework should will be 28mm pipe work N.B.
- Page 14 Plumbing Advice Expansion vessels The boiler must be directly connected to the expansion vessel in the system using a pipe with a diameter no smaller than 18mm. The piping must not be obstructed in any way. The expansion vessel must be at least 7% of volume of the total heating system. The expansion vessel should be fitted on the suction side of the pump.
- Page 15 Plumbing Advice Alarms It is not a requirement to fit an alarm on the system, but it is recommended. The alarm will act as a warning to the customer if the SCWS should operate. The alarm should be fitted to the SCWS discharge pipe and should register an increase in temperature when the SCWS is in operation.
- Page 16 Plumbing Advice Plumbing the Appliance – Open Vented This installation should be in accordance with BS 5449:1990 - Specification for forced circulation hot water central heating systems for domestic premises. It must include a gravity circuit with an expansion tank open to the atmosphere. When installing this appliance on a gravity circuit, the system should consist of a tank/indirect cylinder fixed in an upright position and should be connected to the boiler by 28mm pipe (both flow and return).
- Page 17 Plumbing Advice Timer control of a system with a woodburning boiler appliance As wood burning appliances are not automated, and can therefore not be ignited, controlled and extinguished by electrical control from a heating programmer it needs to be borne in mind that any heat produced when the heating is not being called for must be able to be dissipated in order to negate unnecessary triggering of the safety devices.
-
Page 18: Plumbing Maintenance
Plumbing Maintenance It is essential that your stove is well maintained and annually serviced by a qualified professional to ensure it's continued efficient operation. Failure to maintain and service your appliance as laid out in these instructions will result in the voiding of your products warranty. -
Page 19: Plumbing Diagrams
Plumbing Diagrams We have given some example plumbing layouts of how the appliance can be installed in typical situations; these diagrams should be taken as a guide only and not as a definitive instruction. It is the sole responsibility of the installer to design and carry out the installation of the system to suit the property and clients needs. - Page 20 Plumbing Diagrams Diagram A – Pressurised boiler stove linked with combination gas boiler via a low loss header GB0113 Issue 4...
- Page 21 Plumbing Diagrams Diagram B – Pressurised boiler stove linked with a non combi gas or oil boiler via a low loss header and the addition of an open vented hot water cylinder. GB0113 Issue 4...
- Page 22 Plumbing Diagrams Diagram C – Pressurised boiler stove linked with a non combi gas or oil boiler via a low loss header and the addition of a pressurised hot water cylinder. GB0113 Issue 4...
- Page 23 Plumbing Diagrams Diagram D – Pressurised stove linked with a non combi gas or oil boiler via a thermal store with solar for summer time domestic hot water GB0113 Issue 4...
- Page 24 Plumbing Diagrams Diagram E - Pressurised boiler stove linked with a non combi gas or oil boiler via a thermal store with solar for domestic hot water and solar support for central heating system. GB0113 Issue 4...
- Page 25 Plumbing Diagrams Diagram F – Stand alone pressurised boiler stove with an open vented hot water cylinder GB0113 Issue 4...
- Page 26 Plumbing Diagrams Diagram G – Stand alone pressurised boiler stove with a pressurised hot water cylinder. GB0113 Issue 4...
- Page 27 Plumbing Diagrams Diagram H – Two pipe open vented circuit. GB0113 Issue 4...
-
Page 28: Commissioning & Handover
Commissioning & Handover Ensure loose parts are fitted in accordance with the instructions for “Assembly” given previously. On completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out; a small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely outdoors. -
Page 29: Controls Layout
Controls Layout The diagram below shows the position of the air controls, both controls needs to be operated correctly to control the combustion rate of the stove. Secondary Air Intake control Primary Air Intake control Both controls are in the form of sliders, see section “Controls Explained” on the next page for a detailed explanation of these controls. -
Page 30: Controls Explained
Controls Explained Fire needs air to burn therefore the stove is fitted with two air controls that allow you to regulate the amount of combustion air therefore controlling the burn rate within the appliance. Primary Air Intake The primary air intake is located bottom right on the front of the stove (it is in the form of a slider). -
Page 31: Recommended Fuels
Recommended Fuels This appliance has obtained approval from HETAS Ltd., for burning – * Split Hard-Wood logs not exceeding 35cm in length and not over 20% moisture content. Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed above. -
Page 32: Lighting The Stove
Lighting the Stove Curing On initial firing you will notice a very pungent odour, this is caused through the curing of the paint, we recommend starting with short burning sessions (with smaller quantities of fuel) and build up gradually to allow the components of the stove to settle. Opening doors and windows will allow the paint curing odour to dissipate and to allow ventilation into the room. -
Page 33: Burning Wood
Burning Wood Once you have kindled your stove (see previous page) and your chimney (flue) is sufficiently heated and a large base of burning embers is present, you are ready to start adding you logs. Stage 4 Place 1-3 small logs onto the bed of hot embers using the gloves provided, close the door but leave both air intakes in the fully open/maximum position. -
Page 34: Warning Notes
Warning Notes Over-Firing It is extremely important that you do NOT leave the air control in the fully open position for extended periods or run the appliance with the door open. Leaving the air control fully open (or running with the doors open) will lead to “over-firing”. -
Page 35: Maintenance
Maintenance It is essential that your stove is well maintained and annually serviced by a qualified professional to ensure it's continued efficient operation. Failure to maintain and service your appliance as laid out in these instructions will result in the voiding of your products warranty. -
Page 36: Trouble-Shooting
Trouble-shooting Smoke comes out of the stove when the loading door is opened. • The chimney cavity into which the 150mm flue pipe has been installed may be less than the minimum requirement. • Deposits (soot or other obstructions) may have built up in the chimney and be restricting the flow of waste products. -
Page 37: Commissioning Form
Commissioning Form Stove Purchased From:_____________________________________________________ Address:_________________________________________________________________ Telephone Inc area code:____________________________________________________ Installation Date:_____/_____/__________ Stove Name:_________________________ Product Serial Number:________________ Invoice Number:_______________________ Stove installed by:_________________________________________________________ Address:_________________________________________________________________ Telephone Inc area code:____________________________________________________ HETAS Registration Number:________________________________________________ Check-list Heat load of house inc. DHW Heat requirement for room in which appliance is to be installed Nominal boiler output to water Nominal appliance output to room Hearth to building regs. - Page 38 Commissioning Form Check-list Thermostat to trigger solid fuel circulation pump installed Temp Solid Fuel stat set to °C °C Adequate drains in system pipe work to allow servicing Thermostat positioned on Low Loss Header Temperature Low Loss Header thermostat set at °C °C Pressure relief valve installed within 1m of boiler Audible alarm installed On SCWS?
-
Page 39: Ec Declaration
EN 13240 CE MARKING INFORMATION - See Instructions Particulate/Smoke Conditions Exempt As the Manufacturer's authorised representative established within the EEC, Broseley Fires Ltd Declare sole responsibility that the product for mentioned follows the provisions of the directives above. 13/11/2013 Shrewsbury UK... -
Page 40: Annual Service Record
Annual Service Record 1ST YEAR SERVICE completion date: SERVICE ENGINEER: REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: CONTACT NUMBER 2ND YEAR SERVICE completion date: SERVICE ENGINEER: REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 3RD YEAR SERVICE completion date: SERVICE ENGINEER: REG. -
Page 41: Warranty
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
