ADTRAN OPTI-6100 SDH Specification Sheet

Product Features

I Carrier-class STM - 1/4 SDH
multiplexer in a compact (2U
high), full capacity arrangement
I Two chassis options: MX at
445 mm wide and SMX at
216 mm wide
I Single or double ended deploy-
ment into many SDH multiplexers
I Ethernet over SDH capability;
GFP ITU-T G.7041 compliant
I Supports high- and low-order
VCAT
I OSI and IP/PPP over DCC
I Optional auto in-service for
network and trib connections
I E1, DS3, and Ethernet transport
services with optional redun-
dancy
I No stranded capacity – capital
savings are immediate – all
capacity is available for revenue
producing services
I Range of up to 80 km using
1310/1550 nm one or two fiber
I Comprehensive maintenance
capabilities – TL1, SNMP, craft
menus; Total Access EMS
support; alarm and event log
I Management functions and
alarms over the DCC for
manageability within the TMN
framework
I Up to 63 E1s fed directly from the
system
I Up to 12 DS3s fed directly from
the system
I Both ±24 and -48 VDC powering;
optional AC kit
I Extended temperature hardened
I Remote menu via Telnet
STM - 1/4 Optical Access MUX
OPTI-6100 SDH Multiplexer
Service providers are faced with capital
constraints and the continuing need to incre-
mentally expand existing infrastructures in a
cost-effective manner. They frequently face
challenges posed by the limited electrical
range of DS3s and E1s and the cost of convert-
ing optical to electrical interfaces for trans-
port through expensive high-capacity network
elements.
The ADTRAN OPTI-6100
®
versatility and functionality that today's service
providers need for cost-effective network
expansion. This compact, state-of-the-art unit
seamlessly integrates with and modernizes
existing networks. The OPTI-6100 consolidates
discrete optical and multiplexer network
elements into one small 2U (89 mm) high

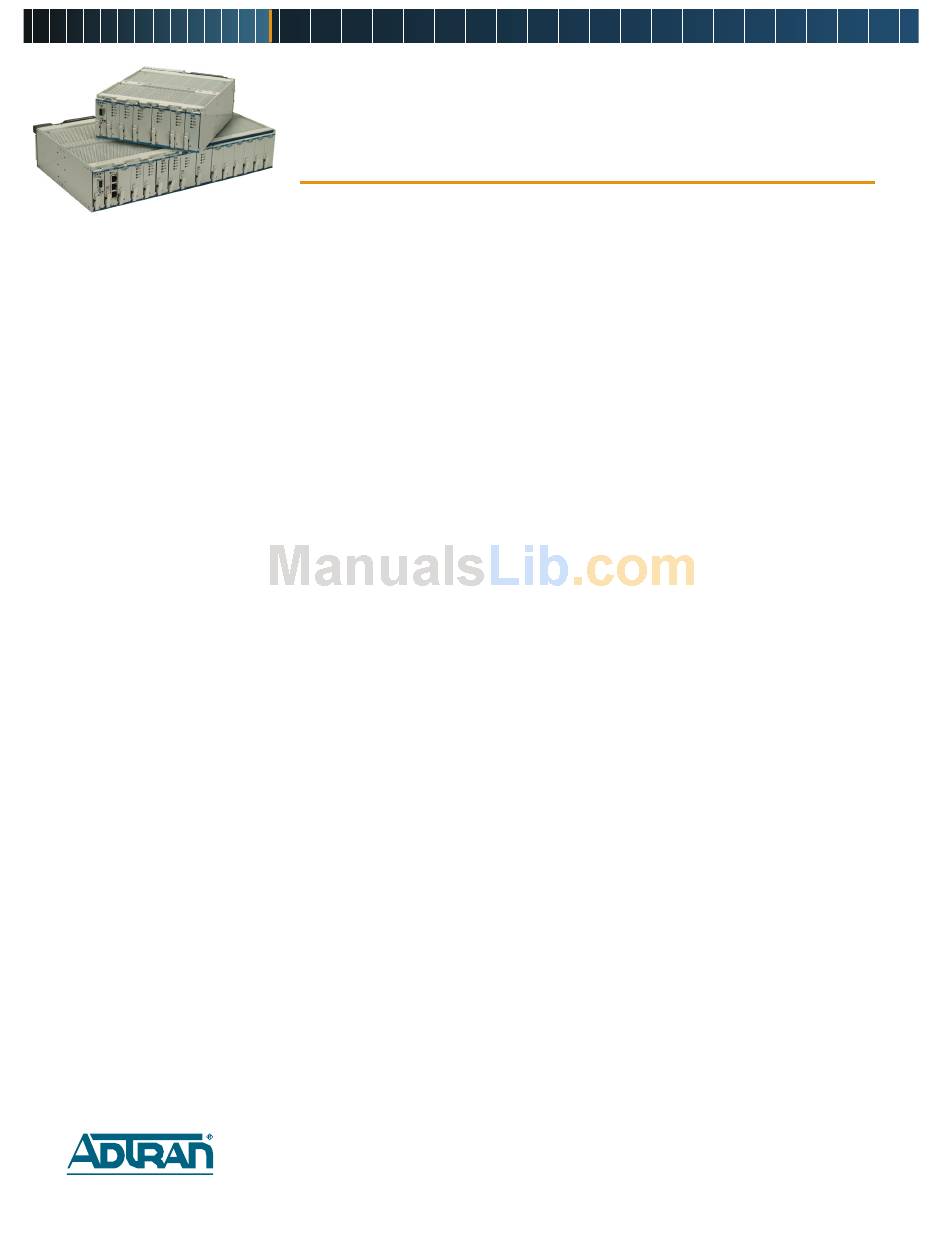

chassis. Two chassis options are available, the
MX (445 mm wide) and the SMX (216 mm
wide). The MX mounts in a standard 483 mm
rack. The SMX is wall or rack mountable with
the option to mount two units side by side in a
483 mm rack.
The feature set, small footprint, low cost,
and diverse deployment options of the OPTI-
6100 make it a powerful tool for optical delivery
of E1, STM-1, DS3 and Ethernet. It supports all of
the maintenance and administration tools
necessary for service providers to administer
their networks efficiently. Its fully integrated
design provides the management and redun-
dancy features expected of carrier-class broad-
band multiplexers.
OPTI-6100 is the industry's first STM-1/4
multiplexer to deliver a combination of E1, DS3,
and Ethernet drops. ADTRAN provides the
ability to utilize all of the bandwidth in an
optical network interface for customer services
without stranded bandwidth. Its compact
design is significantly smaller than similar
products and it delivers superior functionality
at a fraction of the price.
Topology
• Terminal mode, subtended off an SDH
compliant multiplexer
• End-to-end OPTI-6100 (MX or SMX)
• SNCP ADM ring, STM-1/4 Architecture
delivers all the
TM
• Very low card count, high degree of
integration, compact design
• Optional protection of high-speed
interfaces
• Optional protection of low-speed inter-
faces, E1, DS3
Services OPTI-6100 (SMX Chassis)
• E1 (1 to 21 with redundancy)
• DS3 (1 to 6 with redundancy)
• Ethernet (1 to 16)
Services OPTI-6100 (MX Chassis)
• E1 (1 to 63 with redundancy)
• DS3/EC-1 (1 to 12 with redundancy)
• Ethernet (1 to 48)
The OPTI-6100 consists of a common
equipment module (the OMM), a maintenance
interface module (the SCM), and line cards
(tributary modules). The common equipment
module contains a high-speed interface and
cross-connect circuitry.
