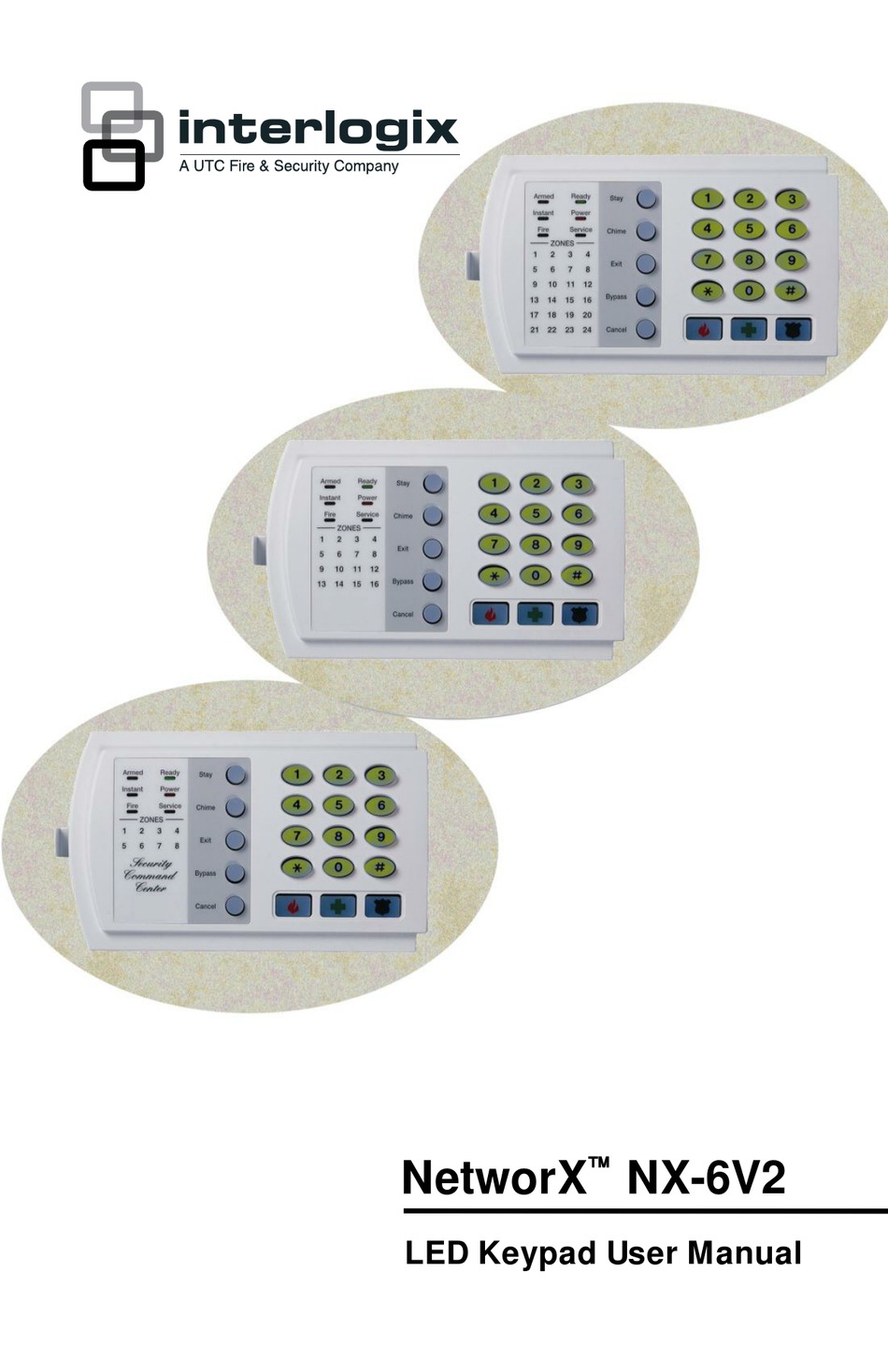

- Page 1 NetworX NX-6V2 LED Keypad User Manual...

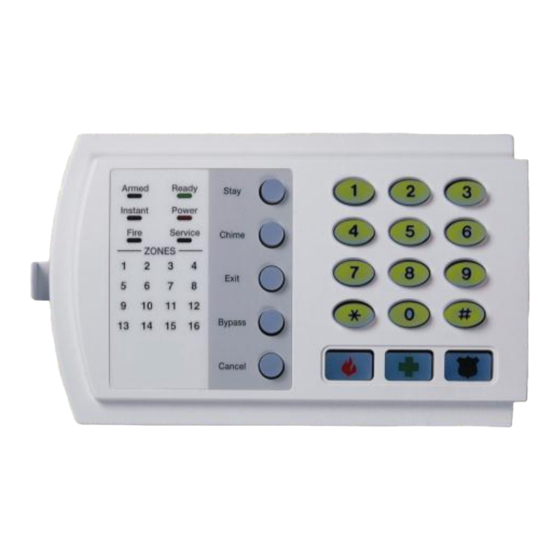

- Page 2 NX-6V2 SYSTEM POWER Light is “on” w hen AC READY Light is “on” w hen the SERVICE Light is “on” to pow er is present; flashes to system is ready to arm; indicate a trouble condition flashes if ready to “force arm”. indicate a low battery KEYPAD w ith your system.
- Page 3 SECURITY SYSTEM NOTES Installing/Service Company _________________________________ For Service Call __________________________________________ Central Station ___________________________________________ Duress Code ____________________ FUNCTION CODES Function Code Controls Function This system is is not partitioned. EMERGENCY ACTIVATION KEYS (check if enabled) Fire Auxiliary Emergency ...
- Page 4 THIS MANUAL IS FURNISHED TO HELP YOU UNDERSTAND YOUR SECURITY SYSTEM AND BECOME PROFICIENT IN ITS OPERATION. ALL USERS OF YOUR SECURITY SYSTEM SHOULD READ AND FOLLOW THE INSTRUCTIONS AND PRECAUTIONS IN THIS BOOKLET. FAILURE TO DO SO COULD RESULT IN THE SECURITY SYSTEM NOT WORKING PROPERLY.
-
Page 5: Table Of Contents
TABLE OF CONTENTS GLOSSARY OF TERMS ..............4 UNDERSTANDING THE LIGHTS............5 Armed Light ..................5 Bypass Light.................5 Cancel Light..................5 Chime Light ..................5 Exit Light ..................5 Fire Light ..................5 Instant Light ..................5 Power Light...................5 Ready Light ..................6 Stay Light ..................6 Zone Light..................6 EMERGENCY ACTIVATION KEYS ............6 KEYPAD FUNCTIONS .................7 Arming Your System In The “Away”... -
Page 6: Glossary Of Terms
GLOSSARY OF TERMS Abort Delay: An option that allows a delay in reporting to the central station. There is a communicator delay of 30 seconds. It can be removed, or increased up to 45 seconds at the option of the end user by consulting with the installer. Authority Level: The level of access an individual has when using an alarm panel. -
Page 7: Understanding The Lights
UNDERSTANDING THE LIGHTS Armed Light The armed light is “on” when the system is armed. The armed light is “off” when it is disarmed. The armed light will flash when there has been an alarm during the previous arm cycle. Bypass Light The b ypass light is “on”... -
Page 8: Ready Light
Ready Light The ready light is “on” when the system is ready to arm and “flashes” if ready to force arm. The ready light is off when the system is not ready to arm because of a zone(s) being faulted. Stay Light The stay light is “on”... -
Page 9: Keypad Functions
KEYPAD FUNCTIONS ARMING YOUR SYSTEM IN THE “AWAY” MODE AWAY is used when the user is away from the premise and wants the interior protected. Listed below are the steps to arm in the AWAY Mode: Step 1 Close all protected doors and windows. Ready light will be on or flashing when all prote cted zones and sensors are secure. -
Page 10: Using The Quick Arm
Press the [STAY] key. Step 3 The stay light will illuminate indicating that all interior zone s are bypassed. (All interior devices will bypass automatically, giving the user freedom of movement within the interior area.) The b ypass light will illuminate if any zone(s) are bypassed. If any zone(s) have been bypassed previously by the user, the light(s) corresponding to the bypassed zone(s) will illuminate, ale rting the user that a zone(s) may be unprotected and can be faulted without... -
Page 11: Cancel / Abort Feature
CANCEL / ABORT FEATURE (Optional, see page 1) The cancel light will flash during an abort delay time. If a code is entered followed by the [CANCEL] key while this light is flas hing, all abortable reports will stop the communication process. Entering a code followed by the [CANCEL] key during or after an alarm report to the central station will cause the cancel light to come on. -
Page 12: Changing User Codes
CHANGING USER CODES Step 1 Your system must be in the Disarmed state to change user codes. Step 2 Press []-[5]. Enter a “Master Arm/Disarm Code”. Step 3 NOTE: For partitioned systems, someone changing the code of another person must have access to all or more partitions than the user being changed. - Page 13 LIGHT AUTHORITY LEVELS IF LIGHT 8 IS OFF Reserved (Note: Do not change if on.) Arm Only Arm Only After Clos ing Time Master Arm/Disarm (can program other codes) Arm/Disarm Bypass Zones Open / Close Reporting If this light is on, this code is programmed as a function code.
-
Page 14: Other Keypad Functions
OTHER KEYPAD FUNCTIONS SETTING THE KEYPAD TONE Press [ ]-[0]. Keypad is now in the “Adjust Tone” mode. Step 1 Step 2 Pressing the [1] key will make the keypad sounder go to higher tones, pressing the [2] key will make the keypad sounder go to lower tones. Step 3 When the desired tone is reached, press the [#] key to set this tone and exit from the “Adjust Tone”... -
Page 15: Reset Function
zone(s) will be displayed on the LCD keypad. It will also be entered into alarm memory and the internal log. Step 3 The keypad will begin to beep after 15 minutes in this mode. This beeping indicates that the “Walk-Test” mode will be automatically exited in 5 minutes. -
Page 16: Keypad Control Tones (Beeps)
Time Hour Code Time Hour Code Time Hour Code 12:00 8:00 AM 4:00 PM Midnight 1:00 AM 9:00 AM 5:00 PM 2:00 AM 10:00 AM 6:00 PM 3:00 AM 11:00 AM 7:00 PM 12:00 4:00 AM 8:00 PM Noon 5:00 AM 1:00 PM 9:00 PM 6:00 AM... -
Page 17: Service Menu
SERVICE MENU The service light will be “on” if the s ecurity system requires service. If the service light is “on”, press the [ ] key followed by the [2] key to determine the service condition. One or more zone lights will illuminate indicating what service(s) is required. -
Page 18: Emergency Evacuation Plans
EMERGENCY EVACUATION PLANS An emergency evacuation plan should be established for an actual fire alarm condition. For example, the following steps are recommended by the National Fire Protection Association and can be used as a guide in establishing an evacuation plan for your building. Draw up a floor plan of your home. - Page 19 SYSTEM NOTES...
- Page 20 © 2012 UTC Fire & Security Americas Corporation, Inc. Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. NX-6V2 USER MANUAL INX6V2OM Rev C (November 2012)
