NX-148E-RF LCD Touchpad with Receiver
Installation Instructions
Content
1
Product summary 1
Contact information
www.utcfireandsecurity.com
For customer support, see
support
© 2012 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of
United Technologies Corporation.
All rights reserved.
Product summary
The NX-148E-RF Touchpad with Receiver combines touchpad
and receiver capabilities into a single device for use with all
NetworX control panels except CF (commercial fire) panels.
Note: When using this touchpad with an NX-8E, NX-8V2, NX-
6V2, or NX-4V2 and downloading via modem, make sure the
control panel version is equal to or greater than the following
versions:
•
NX-8E
17.00
•
NX-8V2
1.04
•
NX-6V2
1.05
•
NX-4V2
1.04
Make sure you are using DL900 version 2.11 or greater
software.
2
5
14
or
www.interlogix.com
www.interlogix.com/customer-
Installation guidelines
Use the following installation guidelines:
•
Mount transmitters as close as possible to the touchpad.
For best results, we recomm end the distance between the
transmitter and the touchpad be less than 100 ft. (30.5 m).
•
Mount the touchpads in an environmentally controlled area
with a temperature range from 32 to 120°F (0° to 49°C).
•
When mounting the touchpad, allow at least 3 in. (7.6 cm)
below the touchpad for the swing-down door

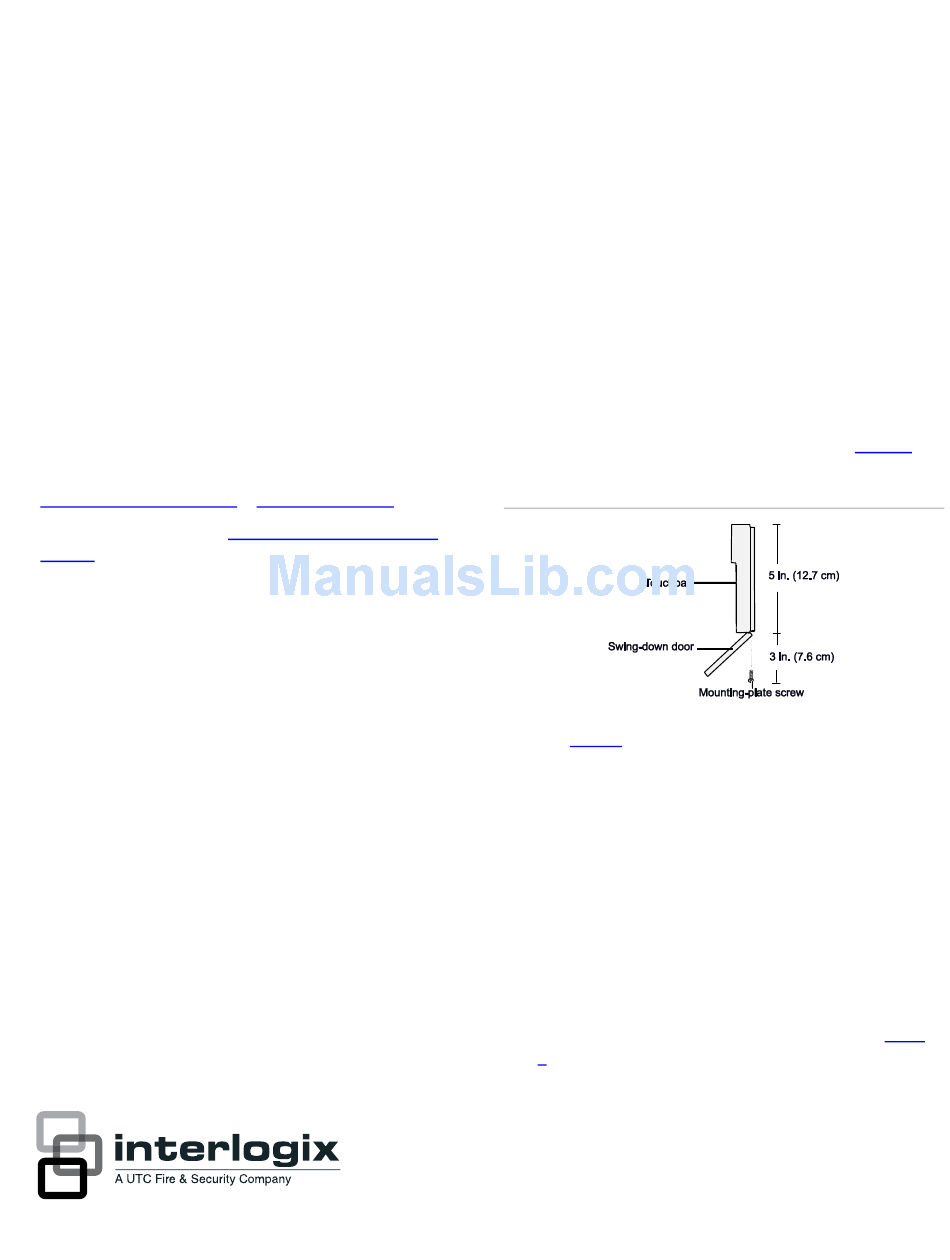

Figure 1. Side view
•
Use
Table 1
to determine the maximum wire lengths
allowed between the touchpad and the panel.
Tools and supplies needed
•
Pencil
•
Phillips screwdriver
•
Drill
•
15/64 in. drill bit
•
Mounting screws (provided)
•
Wall anchors (optional)
•
4-conductor, 22, 18, 16, 14 or 12-gauge wire (see
1).
(Figure
1).
Table
P/N 466-2198 • REV F • OCT12
