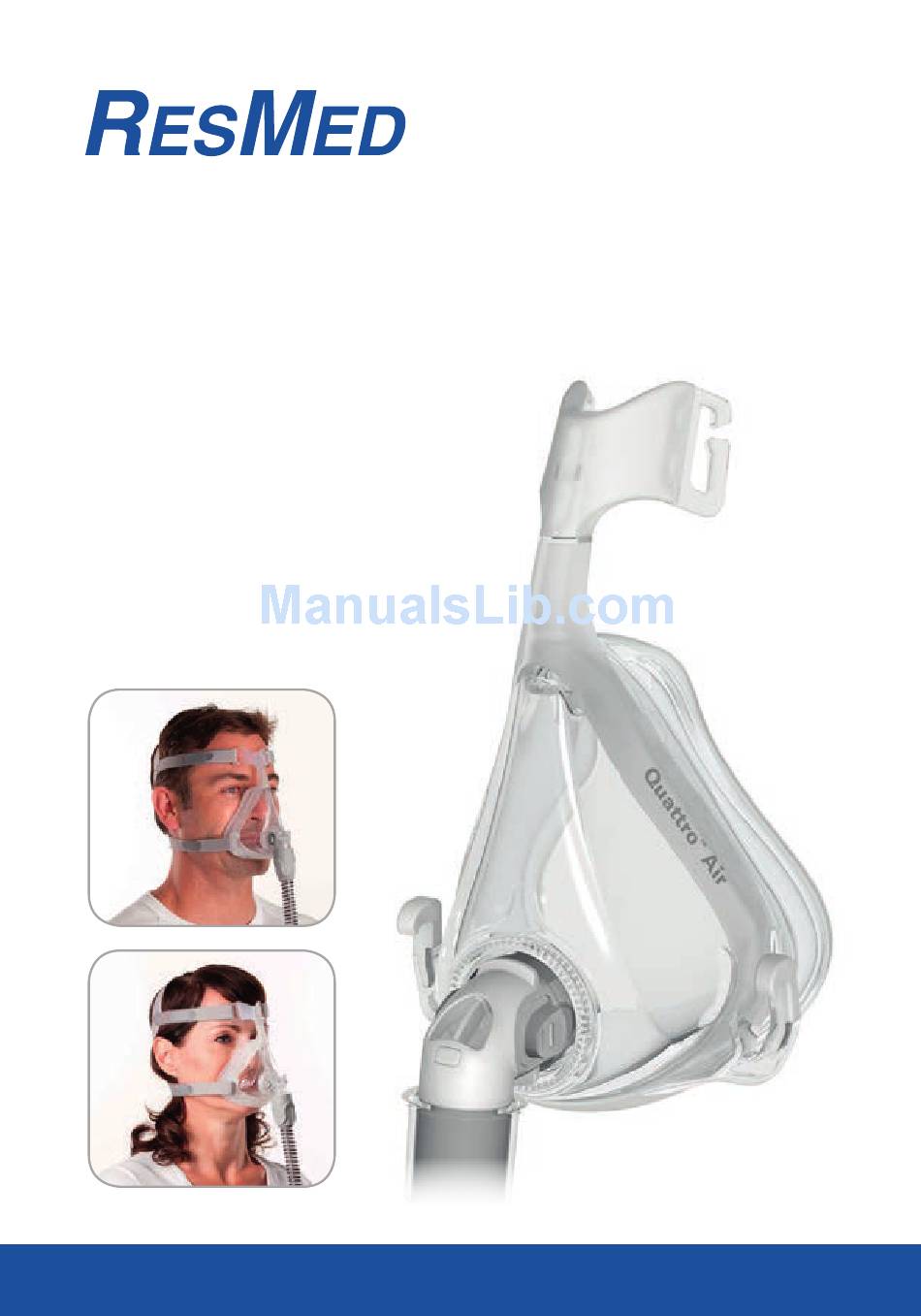

- Page 1 Quattro ™ Quattro for Her ™ Full Face Mask User Guide English...
-
Page 2: Did You Know
Did you know? Replacing your mask and supplies is one of the most important steps in maintaining effective therapy. Replace when... • The cushion is discolored. • The cushion is cracked, torn or damaged in any way. • The headgear is stretched and needs to be tightened more than when it was new. - Page 3 Quattro Air / ™ Quattro Air for Her ™ Full Face mask / masque Facial / mascarilla Facial / máscara Facial completa Fitting / Mise en place / Colocación / Ajuste...
- Page 4 Removal / Retrait / Remoción / Remoção Disassembly / Démontage / Desmontaje / Desmontagem...
- Page 5 Reassembly / Remontage / Montaje / Remontagem...
- Page 7 Mask components / Composants du masque / Piezas de la mascarilla / Componentes da máscara Item / Description / Description / Part number / Code Désignation / Descripción / Descrição produit / Número de Artículo / pieza / Nº da peça Item Quattro Air Quattro Air for Her Cushion / Bulle / 62736 (XS) Almohadilla / Almofada 62737 (S) 62738 (M)
- Page 8 Item / Description / Description / Part number / Code Désignation / Descripción / Descrição produit / Número de Artículo / pieza / Nº da peça Item Quattro Air Quattro Air for Her Lower headgear straps / — Sangles inférieures du harnais / Correas inferiores del arnés / Correias inferiores do arnês Headgear / Harnais / Arnés / 62757 (S) 62758 (S)
-
Page 9: Intended Use
English ™ Quattro ™ Quattro Air for Her Thank you for choosing the Quattro Air / Quattro Air for Her. Please read the entire manual before use. Intended Use The Quattro Air / Quattro Air for Her is a noninvasive accessory used for channeling airflow (with or without supplemental oxygen) to a patient from a positive airway pressure (PAP) device such as a continuous positive airway pressure (CPAP) or bilevel system. - Page 10 Explanation: CPAP and bilevel devices are intended to be used with special masks (or connectors) which have vent holes to allow continuous flow of air out of the mask. When the device is turned on and functioning properly, new air from the device flushes the exhaled air out through the mask holes.
-
Page 11: Using Your Mask
As with all masks, some rebreathing may occur at low CPAP pressures. Refer to your CPAP or bilevel device manual for details on settings and operational information. Remove all packaging before using the mask. Using your mask When using your mask with ResMed CPAP or bilevel devices that have mask setting options, refer to the Technical specifications section in this user guide for mask selection options. - Page 12 5. Undo the fastening tabs on the lower headgear straps. Pull the straps evenly until the mask sits firmly on the chin and reattach the fastening tabs. 6. Connect the air tubing from your device to the elbow. Attach the elbow to the mask by pressing the side buttons and pushing the elbow into the mask.
- Page 13 Reassembly Refer to the reassembly illustrations in this guide. A diagram showing the names of parts can be found in the Mask Components diagram near the beginning of this guide. Reassembly steps 1. Press the frame onto the rest of the mask, ensuring it clicks into place at the top and at both bottom corners.
-
Page 14: Reprocessing The Mask Between Patients
Daily/After each use: Disassemble the mask components according to the disassembly instructions. Thoroughly clean the separated mask components (excluding headgear), by gently rubbing in warm (approximately 86°F/30°C) water using mild soap. To optimize the mask seal, facial oils should be removed from the cushion after use. -
Page 15: Troubleshooting
Troubleshooting Problem/possible cause Solution Mask is uncomfortable Headgear straps are too tight. The cushion membrane is designed to inflate against your face to provide a comfortable seal with low headgear tension. Adjust straps evenly. Ensure that the headgear straps are not too tight and that the cushion is not crushed or creased. -
Page 16: Technical Specifications
Technical specifications Pressure-flow curve The mask contains passive venting to protect against rebreathing. As a result of manufacturing variations, the vent flow rate may vary. Pressure Flow (cm H (L/min) Dead space Physical dead space is the empty volume of the information mask to the end of the swivel. - Page 17 Environmental Operating temperature: 41°F to 104°F conditions (+5°C to +40°C) Operating humidity: 15% to 95% non-condensing Storage and transport temperature: -4°F to 140°F (-20°C to +60°C) Storage and transport humidity: up to 95% non-condensing Gross dimensions Extra Small: 5.91" (H) x 4.06" (W) x 4.17" (D) (150 mm (H) x 103 mm (W) x 106 mm (D)) Small: 5.98"...
-
Page 18: Limited Warranty
Symbols Read instructions before use; Batch code; Catalogue number; Temperature limitation; Humidity limitation; Does not contain natural latex rubber; Manufacturer; Indicates a Warning or Caution and alerts you to a possible injury or explains special measures for the safe and effective use of the device; Keep away from rain;... - Page 19 This warranty replaces all other expressed or implied warranties, including any implied warranty of merchantability or fitness for a particular purpose. Some regions or states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
- Page 20 Manufacturer: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia Distributed by: ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip Quattro is a trademark of ResMed Ltd and is registered in U.S.
- Page 21 Quattro Air for Her FULL FACE MASK...
- Page 22 628042/5 2013-03 Quattro Air / Quattro Air for Her USER Quattro Air AMEr Eng FULL FACE MASK 628042 Global leaders in sleep and respiratory medicine www.resmed.com...
