ExpertDAQ EX-9543G-MM User Manual

EX-9543G-MM/SM
User's Manual
10/100/1000Base-T to 1000Base SX/LX
Fiber Optic Media Converter
fully compliant with the IEEE
802.3ab 1000Base-T /802.3az
1000Base SX/LX
Standard
10/100/1000TX / 1000FX Fiber Optic
Converter

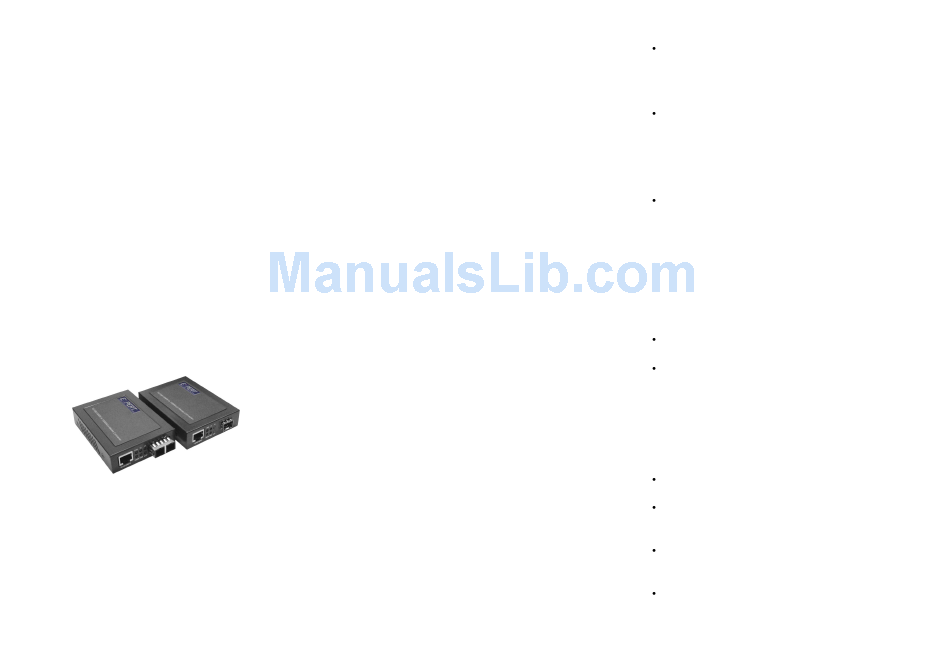

It is a Gigabit Ethernet 10/100/1000Base-T to Fiber
1000Base-SX/LX Media converter, which is fully compliant
with the IEEE 802.3ab / IEEE 802.3az standard, features
one fiber port using SC / LC connector and one STP RJ-45
10/100/1000Base-T port. It supports conversion of Gigabit
Ethernet port to fiber optic cabling. It is automatic for either
full or half duplex mode. Full-duplex cabling provides
bandwidth of up to 2Gbps and allows for transmission
distance up to 550m over multi-mode fiber or up to 80 km
over single-mode fiber.
EX-9543G-MM/SM supports Link Loss Carry Forward
(LLCF) bi-direction Function, The Converter can detect and
indicate the remote-side copper port or fiber port Link fails,
and force TP and Fiber links down on both side, and when
the Linkage was resumed, it will link again automatically.
EX-9543G-MM/SM also supports upto 9KBytes Jumbo
frame packet to enhance network performance, and
supports Green Ethernet power saving mode for copper
port, It will detect Link status and cable length (for gigabit
links only) and adjust power usage automatically.

Specifications

IEEE802.3 10Base-T / IEEE802.3u 100Base-TX
IEEE802.3ab1000Base-T/IEEE802.3z
1000Base-SX/LX IEEE802.3x Flow Control standards
Features STP and Fiber connector
..... RJ45 and SC connector (multi-mode)
..... RJ45 and SC connector (single-mode)
Data Transfer Rate: 10/100Mbps(half duplex),
20/200Mbps(Full duplex)
1000/2000Mbps (Full duplex)
Auto-MDIX for 10/100/1000 STP port
Support Store-and-Forward and Smart Pass-Through
forward mode.
Support upto 9K bytes Jumbo packet size.
Support High-performance QoS functions
Four Priority Queues per port
Port-based, 802.1Q-based, DSCP-based
IP-based, ACL-based priority
Weighted round robin service
Support 802.1x and 802.31D.
TX Duplex Mode: Full or Half duplex mode ( default :
Auto-Negotiation )
LED: Power, speed, FX Link/Act, TX Link/Act and,
LLCF.
Power Requirement: Max. 2.5 Watt (external switching
power adapter DC5V / 1.5A)
/
