ExpertDAQ EX-9132CST-DIO Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

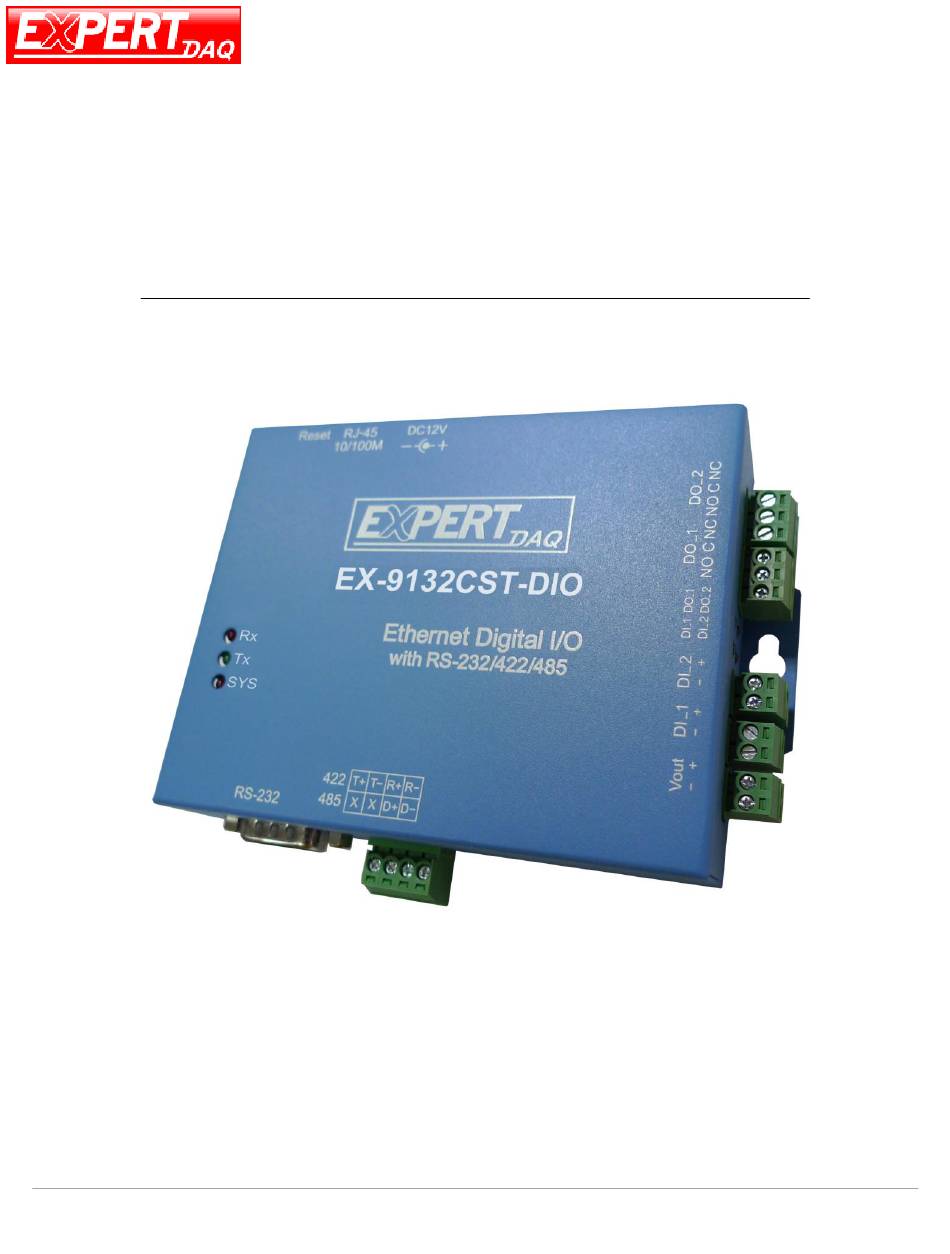

EX-9132CST-DIO(V20.0) User Manual
Operation Manual of EX-9132CST-DIO(V2.0)
Serial to TCP/IP Converter
Version 2.0.1 1
EX-9132CST-DIO(V2.0) • Manual Version 2.0.1
• 20240215
www.topsccc.com
Page 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-9132CST-DIO and is the answer not in the manual?

Questions and answers

Related Manuals for ExpertDAQ EX-9132CST-DIO

Summary of Contents for ExpertDAQ EX-9132CST-DIO

  • Page 1 EX-9132CST-DIO(V20.0) User Manual Operation Manual of EX-9132CST-DIO(V2.0) Serial to TCP/IP Converter Version 2.0.1 1 EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 0...
  • Page 2 The following topics are covered in this chapter: The following topics are covered in this chapter: □ □ Overview □ □ □ Block Diagram □ □ Product Features □ □ □ □ Product Specifications □ EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 1...

  • Page 3: Package Checklist

    Series converters ensure the compatibility of network software that uses a standard network API (Winsock or BSD Sockets) by providing TCP Server Mode, TCP Client Mode, and UDP Mode. Model EX-9132CST-DIO(V2.0) provides 1 socket ARM Cortex-M4 CPU Series’ Virtual COM driver and connection for remote management.

  • Page 4: Block Diagram

    EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 3...
  • Page 5 DMIPS/MHz. The ARM Cortex-M4 processor also implements the new Thumb® -2 instruction set architecture, which combined with features such as unaligned data storage and atomic bit manipulation delivers 32-bit performance at a cost equivalent to modern 8- and 16-bit devices. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 4...

  • Page 6: Product Features

    □ Server / Client Dual Modes □ EX-9132CST-DIO(V2.0) converter device can be configured as network server or network client. In the client mode, it can be installed in network which is protected by NAT router or firewall without a real IP address.

  • Page 7: Product Specifications

    One RS-422 /485 Port (Auto-Detect)  RS-422 Signals：Rx+ , Rx- , Tx+ , Tx- (Surge & Over Current Protect)  RS-485 Signals : Data+ , Data- (Surge & Over Current Protection) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 6...
  • Page 8 Storage Temperature：-10℃〜80℃  Dimensions：150 * 120 * 30 mm ( W * D * H )  WEIGHT：90 gm  RoHS：Compliant with RoHS  Regulatory Approvals：FCC, CE  WARRANTY：1 year EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 7...

  • Page 9: Installation

    EX-9132CST-DIO(V2.0) User Manual Installation EX-9132CST-DIO(V2.0) Block Diagram EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 8...
  • Page 10 COM Port) or activate the indicated Digital output (Remote WinSock must indicate the EX9132CST-DIO(V2.0)). Connect the data wires between the EX9132CST-DIO(V2.0) and the RS-232/422/485 device. Follow the parameter setup procedures to configure the converter (see the following chapters). EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...

  • Page 11: Ethernet Lan Port

    LED indicator will blink during data transferring and receiving. Reset Button If by any chance, you forget the setup password, or have incorrect settings making EX-9132CST-DIO(V2.0)/ PoE converter inoperable. First, turn on the power. Second, use any point tip to push this button and hold it about 3 seconds All the parameters will be reset to the factory default.

  • Page 12: Led Indicators

    LED will blink.)  DO_1(Red): status of Digital output  PORT-1 (Red): channel 2 Port1 data transmitting indicator (When data are sending to the network, the LED will blink.) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 11...

  • Page 13: Wiring Architecture

    You can use the Setup Tool ―EXBrowser.exe‖ to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 14 EX-9132CST-DIO(V2.0) User Manual  Digital Output: EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 13...
  • Page 15 EX-9132CST-DIO(V2.0) User Manual  Digital Input: Note: Default of Digital input is Wet Contact EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 14...

  • Page 16: Initial Ip Configuration

    The following topics are covered in this chapter: □ □ Device Management Utility of EXBrowser □ □ □ EXBrowser “View” □ □ □ EXBrowser “Modify IP” □ □ □ EXBrowser “Modify MAC” □ EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 15...

  • Page 17: Device Management Utility

    □ Broadcast packets can not pass routers. EXBrowser can only be used to monitor devices □ with computer running EXBrowser in the same segment of local area network. (Figure 4.1) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 16...
  • Page 18 EXBrowser will send another query to get updated information. (see Figure 4.2). Note: Always run the “Refresh” after any data change. (Figure 4.2) □ □ File -> Exit Alt+F4 □ Exit from the program (see Figure 4.3). (Figure 4.3) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 17...
  • Page 19 Assign an IP Address with the same Subnet Mask of your computer, avoiding any IP conflict with other network devices. When you press ―Confirm” button, the IP address will be refreshed in 2~3 seconds. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 20 After click ―Confirm‖ button and then “Input Password” request will be pop-up on screen (see Figure 4.5). Please simply press “Confirm” button and the new device’s IP will be changed and save in table, if you changed it. (Figure 4.6) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 19...
  • Page 21 After click ―Confirm‖ button and then “Input Password” request will be pop-up on screen (see Figure 4.8). Please simply press “Confirm” button and the new device’s MAC will be changed and save in table, if you changed it. (Figure 4.8) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 20...

  • Page 22: Web Browser Configuration

    □ To press fourth icon of “Web Browser” on function bar and a ―Login Setting‖ □ Screen will be shown (see Figure 4.9) to login into the device. Alternatively, if the IP address of the converter is already known, you can connect EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 21...
  • Page 23 □ □ Firmware version □ Converter firmware is identified by date code. This information will be required looking for technical support. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 22...
  • Page 24 Type the correct password in the “Password” field and click the “Confirm” button in the “Login Setting” page, then the “Parameter Setting” page will be shown (see Figure 4.10). Note: If you forget the password or can’t login successfully, please contact the manufacturer directly. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 23...
  • Page 25 EX-9132CST-DIO(V2.0) User Manual (Figure 4.10) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 24...
  • Page 26 DHCP client mode could be enabled/disabled status. If DHCP is enabled, there should be a DHCP server on the network. If DHCP is disabled, [IP address], [Subnet mask], and [Gateway address] should be manually assigned. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 25...
  • Page 27 UDP Client mode for a certain serial port. □ □ Remote socket port □ The server socket port would be connected in TCP Client and UDP Client mode for a certain serial port. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 26...
  • Page 28 1 to 65535. Because the numbers below 1000 are used for specific purposes (e.g. 80 is for HTTP protocol), we suggest you use the numbers larger than 1000. Generally the port number 4660 is used for the serial EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 29 It is for setting the off-line time period of device will be taken when there is no date input. The parameter can be from “1 to 255” and the time unit is “Minute”. □ □ Packet Collect Time □ EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 28...
  • Page 30 Rx. The parameter can be from “0 to 999” and the time unit is “mSec”. □ □ Interface of serial I/O □ RS-485 (Half-duplex): Half-duplex RS-485 interface, RTS for driver  enable/disable RS-422 (Full-duplex): Full-duplex RS-422 interface  EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 29...
  • Page 31 Digital Input / Digital Output pin assignment & default value setup Digital I/O Port1: set as Digital Output Digital I/O Port2: set as Digital Input 1. Use Hyper-Terminal to control DO & monitor DI status. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 30...
  • Page 32 Ethernet DI/O Converter will response Digital Input status to Host. You can connect power output ( +/- ) to DI-1 ( P/N ) to try. The Hyper-Terminal will return status of DI instantly. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 33 To test the Digital Output pins, it must be sent a string fulfill with 8 digits (1 byte) such as ―11100000‖. You will see the 3 pins of Output Relay all active. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 34 Hyper terminal will return the change status ― 01100000‖ If you want to turn off the output-2 relay Through the Digital Output socket port (102) Send ― 00100000‖ Hyper terminal will return the change status ― 00100000‖ EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 33...

  • Page 35: Controller Updated

    Note : If the domain of the converter is different from that of the computer running the browser, the login page won’t appear unless the converter’s ―Gateway Address‖ has been correctly set. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...

  • Page 36: Factory Default Setting

    1. Please turn on the power and then use any point tip to push ―Reset‖ button for 5 seconds. The password will be reset to the factory default as ―empty‖. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...

  • Page 37: Setting Verification

    Remote Host. The following topics are covered in this chapter: □ □ Hyper Terminal for TCP/IP WinSock □ □ □ Hyper Terminal for COM Port □ □ □ Data Transmission □ EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 36...

  • Page 38: Hyper Terminal For Tcp/Ip Winsock

    Hyper Terminal for TCP/IP WinSock Initiate a Hyper Terminal from the Start Menu in Windows (see Figure 5.1), give a terminal name, choose an icon, and press ―OK‖ button (see Figure 5.2). (Figure 5.1) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 37...
  • Page 39 EX-9132CST-DIO(V2.0) User Manual (Figure 5.2) Select ―TCP/IP (Winsock)‖ option at the ―Connect using:‖ field (see Figure 5.3). EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 38...
  • Page 40 (e.g. 192.168.123.10) at the ―Host address:‖ field, and the Socket port number set for the Serial Port 1 at the ―Port number:‖ field (e.g 4660). (The Socket type of the Serial Port 1 should be ―TCP Server‖.) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 41 After ―OK‖ button is pressed, Figure 5.5 appears. If the Hyper Terminal connects with the converter successfully, the time clock at the left lower corner ―Connected hh:mm:ss‖ will start counting. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 40...
  • Page 42 EX-9132CST-DIO(V2.0) User Manual (Figure 5.5) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 41...

  • Page 43: Hyper Terminal For Com Port

    Initiate another Hyper Terminal as a COM Port Terminal (in Figure 5.3, select COM 1 or other COM port instead of ―TCP/IP (Winsock)‖). Set the COM port Properties to be the same as those set for the Serial Port 1 of the converter. (Figure 5.3) EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 42...

  • Page 44: Data Transmission

    Alternatively, check if the characters typed on the TCP/IP Winsock Terminal are also displayed on the COM Port Terminal. If yes, then all settings are correct and the converter can operate properly. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...
  • Page 45 Please refer to the ―Hardware Installation‖ steps in Chapter 3. Q. Why can’t I use IE to setup the converter? A. Please check if the network domain of your PC is the same as that of the converter. EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com...

  • Page 46: Pin Outs And Cable Wiring

    PIN 2 : RXD PIN 3 : TXD PIN 4 : DTR PIN 5 : GND PIN 6 : DSR PIN 7 : RTS PIN 8 : CTS PIN 9 : N/A EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 45...
  • Page 47 PIN 4 : R- □ □ RS-422 Wiring Diagram □ EX-9132CST-DIO(V2.0)/ PoE Serial Device 2 T- 1 T+ 4 R- 3 R+ □ □ RS-485 Wiring Diagram □ EX-9132CST-DIO(V2.0)/ PoE Serial Device EX-9132CST-DIO(V2.0) • Manual Version 2.0.1 • 20240215 www.topsccc.com Page 46...
