ExpertDAQ EX9486C-W Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

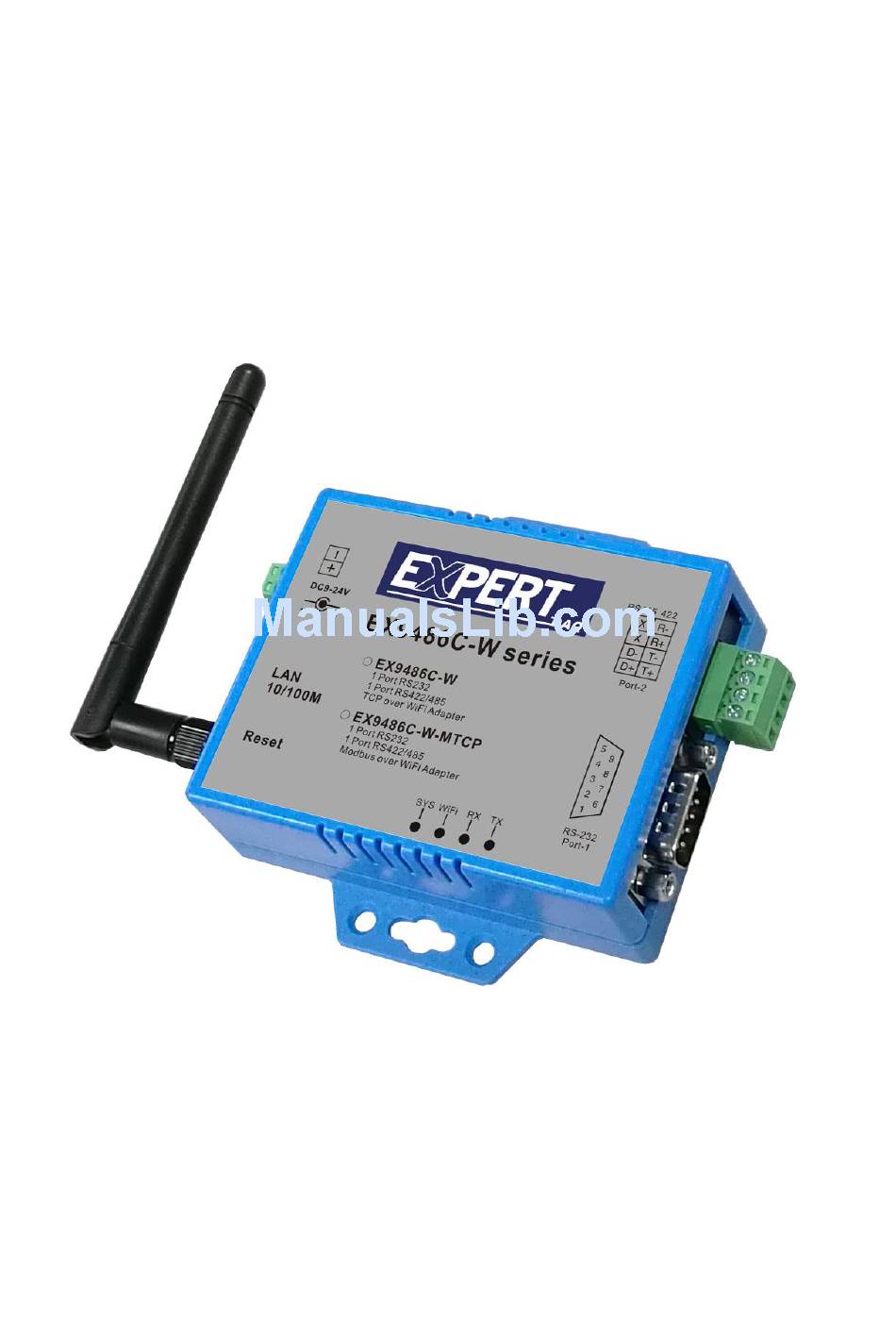

Operation Manual of EX9486C-W
Serial to Wi-Fi converter
Version 2.0
24th April 2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the EX9486C-W and is the answer not in the manual?

Questions and answers

Related Manuals for ExpertDAQ EX9486C-W

Summary of Contents for ExpertDAQ EX9486C-W

  • Page 1 Operation Manual of EX9486C-W Serial to Wi-Fi converter Version 2.0 24th April 2018...

  • Page 2: Package Checklist

    □ 1 unit CD(Operation Manual & Utility) □ □ □ Din Rail Mounting Kit & Power Adaptor :Optional □ NOTE: Notify your sales representative if any of the above items is missing or damaged. Page 2 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...

  • Page 3: Product Features

    It is protected by both setup password and access password to prevent intruders. Remote updated Firmware can be reprogrammed directly via Ethernet network to keep up with latest network standards. Page 3 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...

  • Page 4: Product Specifications

    Serial Line Protection : 15 KV ESD for all signals Parity: None, Even, Odd, Space, Mark Data bits: 5, 6, 7, 8 Stop bits: 1, 2 Speed: 300 bps to 230.4K bps Page 4 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 5 Storage Temperature : -25 to 80°C , 5 to 95%RH Regulatory Approvals RoHS FCC, CE Software Features Protocols : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, ICMP Mode : TCP Server／TCP Client／UDP Client Utilities : Windows 2000/2003/VISTA/WIN7/WIN8/WIN10 Page 5 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...

  • Page 6: Wiring Architecture

    You can use the Utility Setup CD to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings. Page 6 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 7 Please prepare a PC/NB with Wireless adapter, a Wireless Access Point and EX9486C-W. 1. Connecting EX9486C-W Gateway 1-1. EX9486C-W have ethernet port & wi-fi port, so the user can config EX9486C-W by ethernet or wi-fi 1-2. EX9486C-W’s wi-fi default as a “ACCESS POINT” when first connected to power. Its broadcast SSID is EXiot_+MAC address 1-3.
  • Page 8 EX9486C-W Manual 1-3. Key in Soft AP password. Default is 12345678 1-4. Connecting to EX9486C-W Gateway Page 8 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 9 EX9486C-W Manual Now you have successfully connect to EX9486C-W Page 9 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 10 2-1. IP Searching 2-1-1. Double Click on to execute EXiot. 2-1-2. Click on “IP Search” or “Broadcast”. WiFi-Module Utility will start to scan the network. 2-1-3. Device found Ethernet Wi-Fi Page 10 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 11 2-1-4. Single click on device IP address. Then click “Goto” to open browser. 2-1-5. Login page is shown. Please input ID and Password. (default ID: admin; password: admin). Now you have successfully searched the device Page 11 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 12 EX9486C-W Manual 2-2. Configuring 2-2-1. Serial Over TCP/IP Index Page 2-2-2. System Setup Page 2-2-2-1. System Where you can change Password and set up reset time period. Page 12 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 13 Setup Serial device parameters - Baud Rate, Parity, Data Bits and Stop Bits. Then click “ Save” to save the Settings. 2-2-3. Network Setup Page There is Network Type configuration WiFi Configuration Page 13 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 14 AP broadcasts its SSID “EXiot_XX_XX_XX_XX_XX_XX”. PC /NB /Smart Phone is requested to connect to this SSID for device setup. B. “INFRASTRUCTURE” mode –Choose this mode for connecting to other Access Point. Page 14 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 15 EX9486C-W Manual 2-2-3-2. SSID Scan Click “Scan” for existing Access Point site survey. Choose a suitable SSID, Authentication and Encryption. Then key in password for AP Page 15 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 16 Gateway. You can also choose “STATIC” to input fixed IP address, Subnet Mask, Gateway address. STATIC parameters setting Now, Network Setup is successfully configured. Please click “Save” to keep the settings in memory. Page 16 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 17 Manual DHCP Mode Note: Wireless and Ethernet can not be in the same subnet. 2-2-4. Mode Setup There are 3 modes for selection, TCP server / TCP client / UDP Page 17 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 18 The port number is depend on your requirement. (Exp. Open socket port as 100) 2-2-4-2. TCP Client (TCP protocol, active open, connect to the TCP server) Destination address & port: would be connected in TCP Client mode for a certain serial port. Page 18 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 19 Destination address & port: would be connected in UDP Client mode for a certain serial port. Now, Gateway Setup is successfully configured. 2-2-5. Then click “Reboot” to re-start the converter. 2-2-6. After device reboot, the original wireless connection will be disconnect. Page 19 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 20 EX9486C-W Manual 2-3. Reconnect to EX9486C-W Gateway 2-3-1. Search the selected AP which EX9486C-W connect with 2-3-2. Key in password 2-3-3. Execute WiFi-Module Utility to search device Page 20 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 21 EX9486C-W Manual 2-3-4. Single click device IP address then click “Goto” Device login page will be shown You have successfully re-connected to EX9486C-W Gateway Page 21 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 22 2. Key in a name for connection (ex. test) and then press OK 3. You will see following page. Choose TCP/IP, then press OK 4. Key in the Converter IP address and Socket port and then press OK Page 22 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 23 Please short DB9 NO. 2 pin and NO.3 pin circuit, (in green Terminal Block - T+ connect to R+, T- connect to R- or TX connect to RX.) 5-2. Key in characters. the converter will echo back of the characters and shown on the screen Page 23 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 24 EX9486C-W Manual Congratulation. You had successfully set up the converter and start to use it Page 24 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
  • Page 25 □ RS-422 Wiring Diagram Serial Device EX9486C-W Converter 3 T- 4 T+ 1 R- 2 R+ □ □ □ RS-485 Wiring Diagram Serial Device EX9486C-W Converter 1 D- 2 D+ Page 25 EX9486C-W • Manual Version 2.0 • 24.04.2018 www.topsccc.com...
