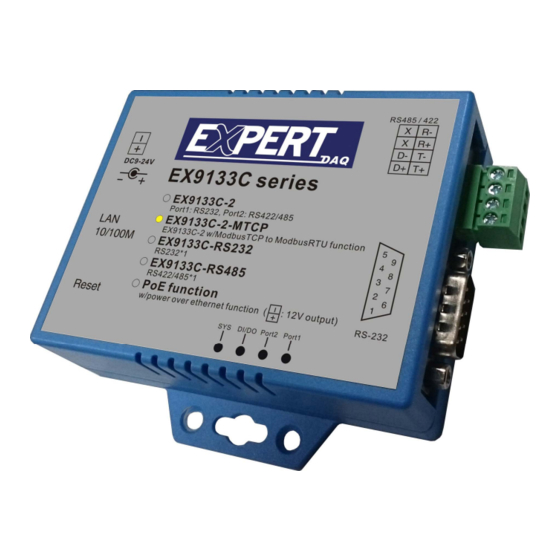

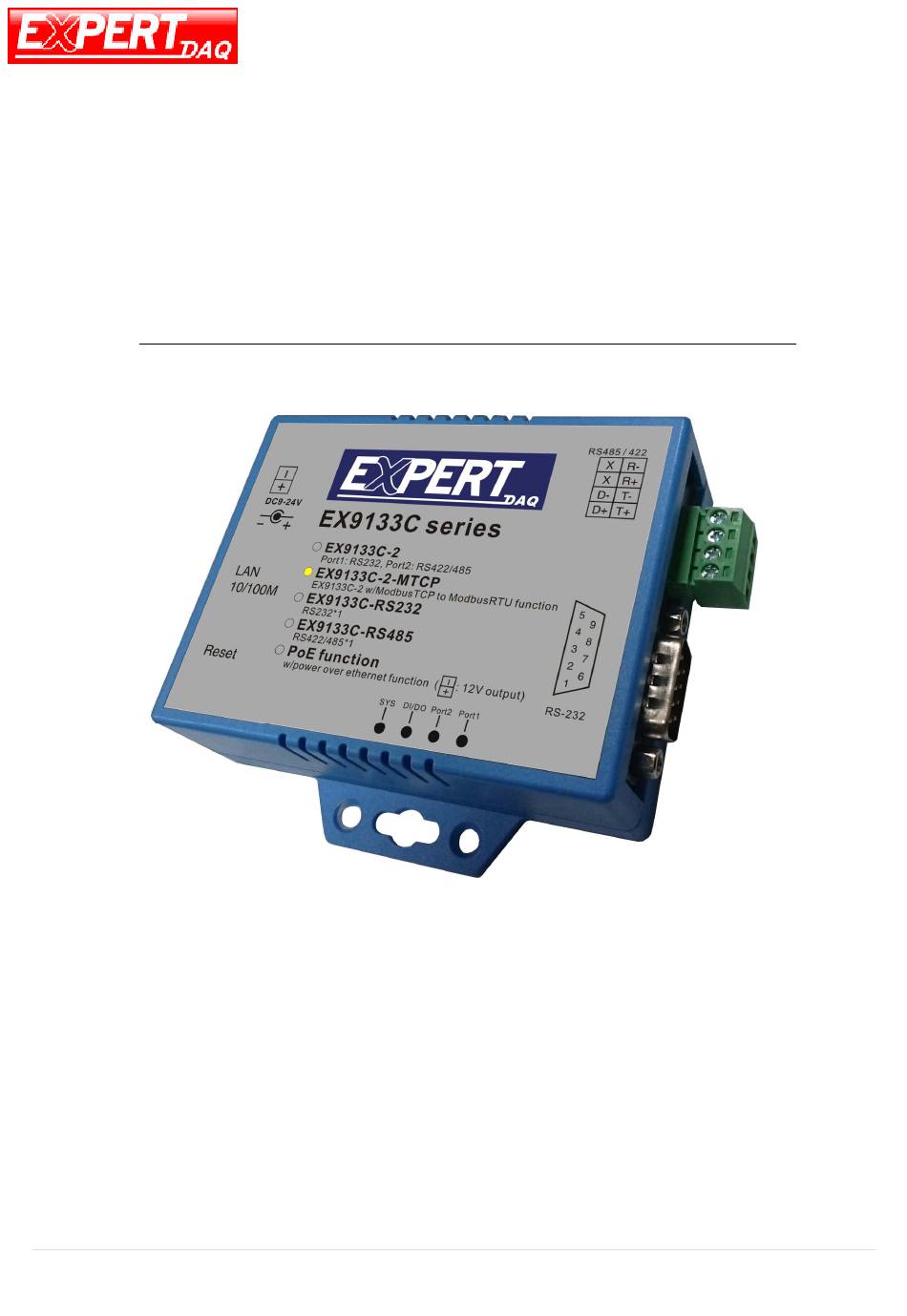

- Page 1 EX-9133C-2-MTCP User Manual Operation Manual EX-9133C-2-MTCP Modbus TCP to Modbus RTU/ASCII Converter Version 1.0.1 20th Oct. 2016 www.topsccc.com EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 Page 0...
-
Page 2: Table Of Contents
EX-9133C-2-MTCP User Manual Table of Contents 1. Introduction ……………………………………………… Overview ……………………………………………………… Package Checklist ……………………………………………… 4 Block Diagram ………………………………………………… Features ………………………………………………………… 7 Product Specifications ………………………………………… Description EX-9133C-2-MTCP ......…………… 10 Product Panel Views …………………………………………… 10 Top Side ………………………………………………………… 10 Right Side ……………………………………………………… EX-9133C-2-MTCP Installation .....………….... - Page 3 EX-9133C-2-MTCP User Manual Configuration EX-9133C-2-MTCP ......……… 16 Initial IP Configuration ...……………………………………… 16 Device Management Utility of EXBrowser ...…………………… 16 “Modify IP” EXBrowser “View”& …………………………...… 18 EXBrowser “Modify MAC” ……………………………..20 Browser Configuration ………………………...……….. 21 Controller Setup & Status ……………………………………… 21 Controller Parameter Setup ……………………………………...
-
Page 4: Introduction
EX-9133C-2-MTCP User Manual Introduction We provide new ways of connecting legacy serial devices to a Local Area Network (LAN) or Wide Area Network (WAN). Modbus TCP/IP converters are designed to operate serial ports over 100M bps Ethernet networks. The data is transmitted via Modbus TCP/IP protocol. -
Page 5: Package Checklist
EX-9133C-2-MTCP User Manual Overview EX-9133C-2-MTCP converter is designed to make your industrial serial devices Internet ready instantly. of EX-9133C-2-MTCP converters makes ARM Cortex-M4 CPU them the ideal choice for connecting your RS-232 and RS-422 or RS-485 serial device—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices anywhere and anytime over a local LAN or the Internet. -
Page 6: Block Diagram
EX-9133C-2-MTCP User Manual Block Diagram Low-cost devices usually are equipped with low speed processors and limited memories. In reality, they have neither the capability nor practicality to manage complicated network TCP/IP protocols. The ARM Cortex™-M4 32-bit processor has been specifically developed to provide a high-performance, low-cost platform for a broad range of applications including microcontrollers, automotive body systems, and industrial control systems, networking by converting data stream between network TCP/IP and popular serial port signals. - Page 7 EX-9133C-2-MTCP User Manual multiply and hardware divide to deliver an outstanding efficiency of 1.25 DMIPS/MHz. The ARM Cortex-M4 processor also implements the new Thumb®-2 instruction set architecture, which combined with features such as unaligned data storage and atomic bit manipulation delivers 32-bit performance at a cost equivalent to modern 8- and 16-bit devices.
-
Page 8: Features
EX-9133C-2-MTCP User Manual Product Features □ □ Data Conversion between RS-232 and RS-422/485 and Ethernet □ EX-9133C-2-MTCP converter device (RS-232 ＊1 port , RS-422⁄485 ＊1 port ) data/signal into the Modbus TCP/IP package data/signal and send them out with the Ethernet Data Stream;... -
Page 9: Product Specifications
EX-9133C-2-MTCP User Manual Product Specifications CPU : ARM Cortex™-M4 32-bit processor , 120MHz RAM : 128K Bytes SRAM ROM : 512K Bytes Flash ROM Ethernet ● Port Type : RJ-45 Connector ● Speed : 10 /100 M bps ( Auto Detect ) ●... - Page 10 EX-9133C-2-MTCP User Manual Built-in RS422/RS485 Pull High-Low Resistor Socket Port Connection：1 Connection 15KV ESD for all signal Watch Dog Function Virtual Support Windows 2000 /2003 / XP / Vista / 7 Firmware On-line Updated Via Ethernet Power：DC 9 – 24V , 500mA (Terminal Block: Optional/ DC Jack: Default) LED Lamp：...
-
Page 11: Ex-9133C-2-Mtcp Description
EX-9133C-2-MTCP User Manual EX-9133C-2-MTCP Description & Installation Product Panel Views Top Side DC-In Serial I/O Port Power Outlet RS-422/485 Ethernet LAN Port Serial I/O Port Reset Button RS-232 Right Side LED Indicators Serial I/O Port of RS-232 and RS-422/485 Connect the serial data cable between the converter device and the serial devices. Follow the parameter setup procedures to configure the converter (see the following chapters). -
Page 12: Ex-9133C-2-Mtcp Installation
EX-9133C-2-MTCP User Manual Installation EX-9133C-2-MTCP Left Side) Power Supply( EX-9133C-2-MTCP converter device is powered by a single 9/12/24VDC (inner positive/outer negative) power supply and 500mA of current. A suitable power supply adapter is part of the packaging. Connect the power line to the power jack at the left side of EX-9133C-2-MTCP converter device and put the adapter into the socket. -
Page 13: Led Indicators
EX-9133C-2-MTCP User Manual LED Indicators PORT-1 (Red): Port1 data transmitting indicator (When data are sending to the network, the LED will blink.) PORT-2 (Green): Port2 data transmitting indicator (When data are sending to the network, the LED will blink.) DI/DO (Red): Data input/output indicator (When data are input/output by the network, the LED will blink.) SYS (Green):... -
Page 14: Wiring Architecture
EX-9133C-2-MTCP User Manual Wiring Architecture RS-232 Wiring Architecture www.topsccc.com EX-9133C-2-MTCP • Manual Version 1.0.1 • 201016 Page 13... - Page 15 EX-9133C-2-MTCP User Manual RS-422/RS-485 Wiring Architecture When you finish the steps mentioned above and the LED indicators are as shown in above diagram, the converter is installed correctly. You can use the Setup Tool “EXBrowser.exe” to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings.
-
Page 16: Ex-9133C-2-Mtcp
EX-9133C-2-MTCP User Manual Converter Configuration EX-9133C-2-MTCP Initial IP Configuration When sett up your converter for the first time, the first thing you should do is to configure the IP address. This chapter introduces the method to configure the device server’s IP address. - Page 17 EX-9133C-2-MTCP User Manual When you activate the tool, it will detect the existence of the installed converters and depict the converters’ status such as IP address, Subnet Mask, MAC Address, and Device ID (see Figure 4.1). The Setup Tool only can setup one converter at a time. Thus if there are more than one converter on the network, please shut down or disconnect other converters.
-
Page 18: Exbrowser "View"& "Modify Ip
EX-9133C-2-MTCP User Manual EXBrowser “View” □ □ View -> Refresh □ There are two ways for refreshing the status of existing devices. You may select the item “View” to refresh the status of existing devices on LAN. Another is to click the icon as red color remark as below. EXBrowser will send another query to get updated information. - Page 19 EX-9133C-2-MTCP User Manual EXBrowser “Modify IP” □ □ Modify IP -> Dialog Frame □ To click the device on the existing devices list in the EXBrowser table and then the function bar will be enable. To press second icon of “Modify IP” on function bar and a dialog frame table will be shown (see Figure 4.4).
- Page 20 EX-9133C-2-MTCP User Manual (Figure 4.5) After click “Confirm” button and then “Input Password” request will be pop-up on screen (see Figure 4.5). Please simply press “Confirm” button and the new device’s IP will be changed and save in table, if you changed it. (Figure 4.6) www.topsccc.com EX-9133C-2-MTCP •...
-
Page 21: Exbrowser "Modify Mac
EX-9133C-2-MTCP User Manual EXBrowser “Modify MAC” □ □ Modify MAC -> Dialog Frame □ To click the device on the existing devices list in the EXBrowser table and then the function bar will be enabled. To press Third icon of “Modify MAC” on function bar and a dialog frame table will be shown (see Figure 4.7). -
Page 22: Web Browser Configuration
EX-9133C-2-MTCP User Manual Web Browser Configuration The following topics are covered in this chapter: □ □ Serial To Ethernet Converter Setup □ ● Login Setting ● Login Setting Page Field Description ● Parameter Setting ● Parameter Setting Page Field Description Login Setting In addition to basic IP address and subnet mask, specific device settings can be set through HTTP protocol with popular browsers, e.g. - Page 23 EX-9133C-2-MTCP User Manual (Figure 4.9) Login Setting Page Field Description □ □ System time elapsed □ The time elapsed since start of this device in [Day Hour : Minute : Second] format. This information can be useful in identifying the reliability of system. □...
- Page 24 EX-9133C-2-MTCP User Manual □ □ Ethernet MAC Address □ Converter is a unique MAC (Media Access Control) address used by Ethernet. □ □ Password □ This field is the administration password for authentication. Factory default is “empty”. However, it is not recommended to leave it empty in field operation. If you could not login, it means you have to key in the password.
- Page 25 EX-9133C-2-MTCP User Manual Parameter Setting Page □ □ The Parameter Setting Page □ Type the correct password in the “Password” field and click the “Confirm” button in the “Login Setting” page, then the “Parameter Setting” page will be shown (see Figure 4.10). Note: If you forget the password or can’t login successfully, please contact the manufacturer directly.
- Page 26 EX-9133C-2-MTCP User Manual □ □ Parameter Setting Page Field Description □ □ □ IP Address □ The IP address of converter device, 4 digits separated by '.' Don’t let it conflict with the other devices on the network. If DHCP client mode is enabled and there's a DHCP server on the network, this field will be assigned by DHCP server automatically.
- Page 27 EX-9133C-2-MTCP User Manual □ □ Login Password □ For security and management issues, you may setup the “Login Password”. This administration password uses to login converter parameter setting pages. It may be empty or up to 15 characters long. □ □...
- Page 28 EX-9133C-2-MTCP User Manual □ □ Baudrate □ Baud Rate: 300 ~ 115.2K bps □ □ Parity, Data bits, Stop bit □ Parity: None, Even, Odd, Space, Mark. Data Bits: 5, 6, 7, 8. Stop Bit: 1 or 2. □ □ Force off-line time(Close the Socket) □...
- Page 29 EX-9133C-2-MTCP User Manual □ □ Remote IP address □ The server IP address and socket port would be connected in Modbus TCP Client mode for a certain serial port. □ □ Remote socket port □ The server socket port would be connected in Modbus TCP Client mode for a certain serial port.
-
Page 30: Controller Updated
EX-9133C-2-MTCP User Manual Controller Updated Press “Update” Button after finish the detailed parameter setting. The converter will save all parameters into internal non-volatile memory and then reboot (see Figure 4.11). It takes about 5 seconds to complete the whole process, and a new login page will be presented (see Figure 4.9). -
Page 31: Factory Default Setting
EX-9133C-2-MTCP User Manual Factory Default Setting If you forget the setup password or have incorrect settings making the converter inoperable, there are two ways to reset the setting and the following procedures can be used to reset all settings to factory default: 1. -
Page 32: Appendix A - Faq
EX-9133C-2-MTCP User Manual Q. Why can’t the EXBrowser.exe detect the converter on the network? A. Please check □ □ □ if the power is properly plugged to the converter. □ □ if the network cable is properly connected between the converter and the Hub. □... -
Page 33: Appendix B - Pin Outs And Cable Wiring
EX-9133C-2-MTCP User Manual Pin outs and Cable Wiring □ □ DC-In Jack □ □ □ RJ-45 Pin Assignment □ □ □ RS-232 Pin Assignment □ The pin assignment scheme for a 9-pin male connector on a DTE is given below. PIN 1 : N/A PIN 2 : RXD PIN 3 : TXD... -
Page 34: Rs-232 Pin Assignment
EX-9133C-2-MTCP User Manual □ □ RS-232 Wiring Diagram □ EX-9133C-2-MTCP Serial Device 2 RX 3 TX 3 TX 2 RX 5 GND 5 GND 7 RTS 8 CTS 8 CTS 7 RTS □ □ RS-422 Pin Assignment □ The pin assignment scheme for a 4-pin RS-422 is given below. 1 2 3 4 PIN 1 : T+ PIN 2 : T-...
