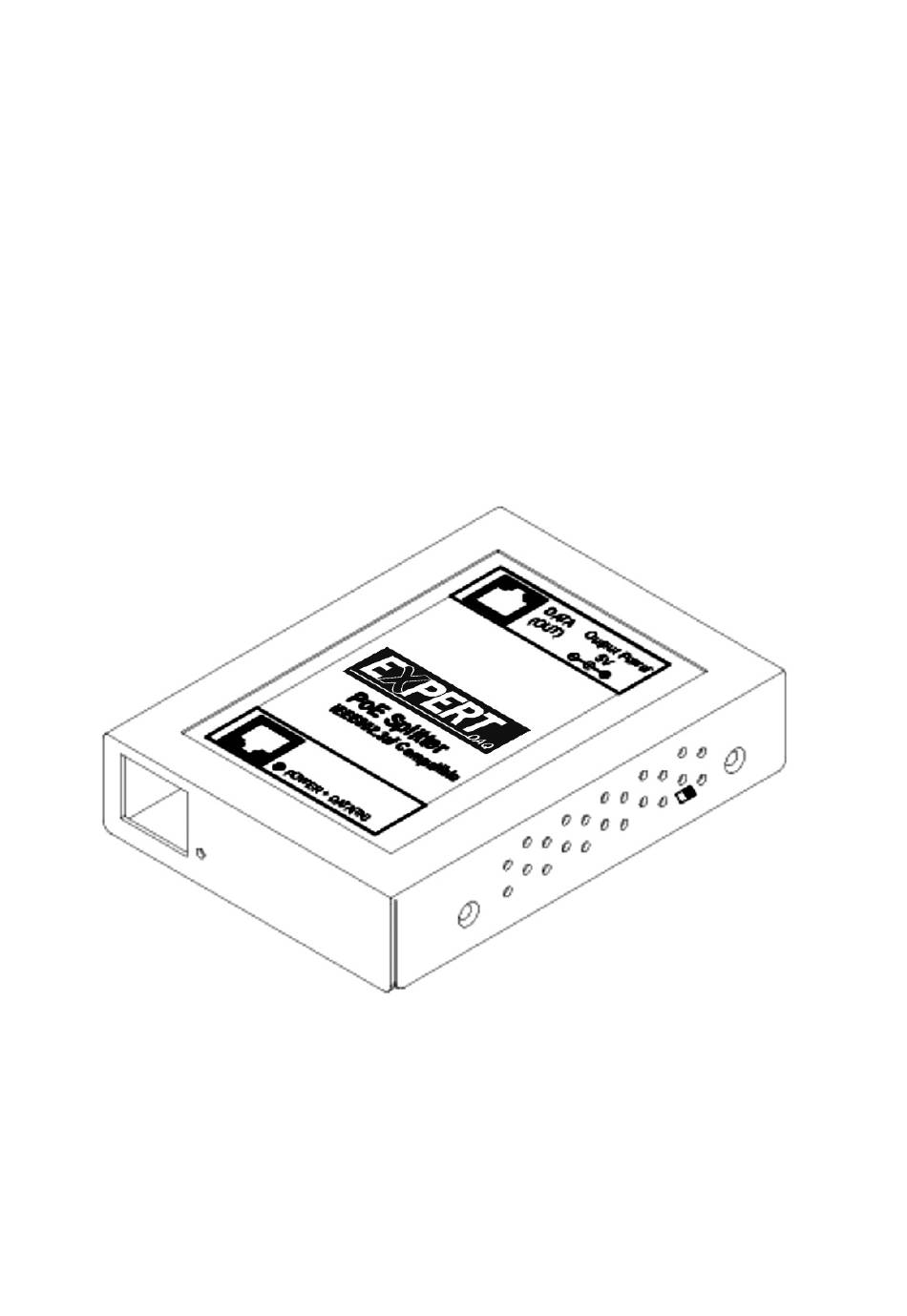

- Page 1 EX-9512S One Port PoE Splitter User’s Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 2 and Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 Table of contents Chapter 1 …………………………………………………………………………………….. 4 Introduction ..………………………………………………………………………………4 Product Features…………………………………………………………….…………….4 Technical Specifications …………………………………………………….…………..4 Chapter 2 ………………………………………………………………………………………5 Package contents …………………………………………………………………………5 Chapter 3 ……………………………………………………………………………………….5 Installation …………………………………………………………………………………..5 The LED indicators …………………………………………………………………………5 Chapter 4 ……………………………………………………………………………………….6 Application ………………………………………………………………………………….6...
- Page 4 Chapter 1. Introduction The splitter is a Power Over Ethernet splitter, it split the data and power from the cable come over PSE. When the input port connects to PSE via Cat5 cable, the splitter will pass-through the data signal to its RJ-45 output port, and also converter the 48V PoE power to DC5V/12V to the output power jack.
- Page 5 Chapter 2. Package contents Before you start to install the Splitter, please verify your package that contains the following items: One Splitter One Power output cable One User’s Manual Chapter 3. Installation I. The TP input port Using this port to connect to the PSE port of PoE switch or Power injector Hub. II.
- Page 6 Chapter 4. Application...
