Standards And Approvals - Santon PowerPack Installation And User Instructions Manual

RATED PRESSURE
7kW
Minimum supply pressure 0.1Mpa (1bar)
Maximum supply pressure 0.25Mpa (2.5bar)
9/12kW
Minimum supply pressure 0.1Mpa (1bar)
Maximum supply pressure 0.7Mpa (7.0bar)
MATERIALS
Backplate, cover - ABS
Element(s) - Copper sheathed rod type.
DIMENSIONS
Height - 210mm
Width - 160mm
Depth - 104mm

STANDARDS AND APPROVALS

Complies with the requirement of EN 60335-2-35.
British Electro technical Approvals Board (BEAB) approved.
Complies with European Community Directives (CE).
Complies with UK water regulations, kiwa approved.
Neon
Inner
container
red
7kW / 9kW / 12kW

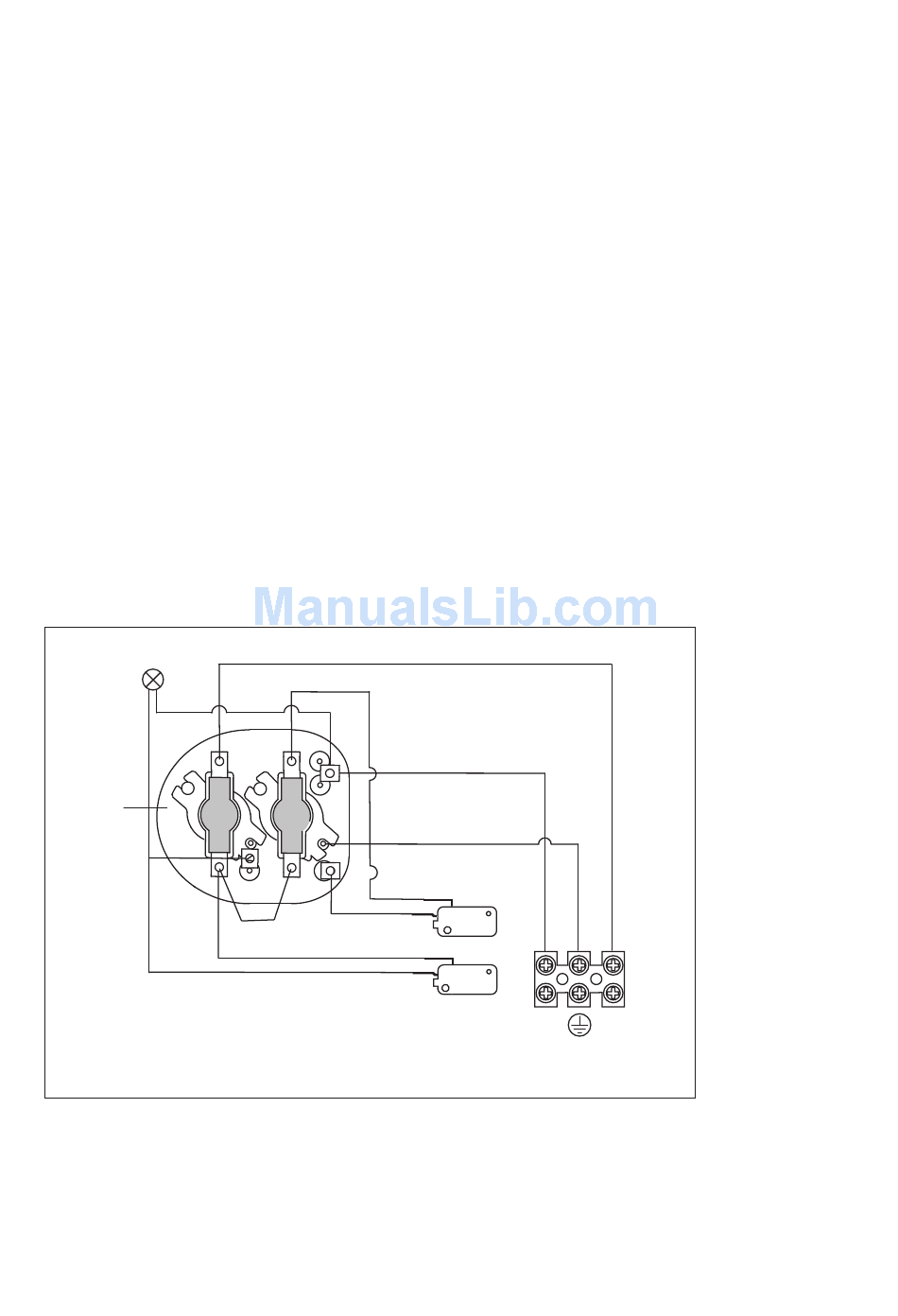

Figure 1 - Wiring Diagram
red
red
red
red
red
black
green/yellow
Pressure
N
switches
Terminal
block
L
3
3
