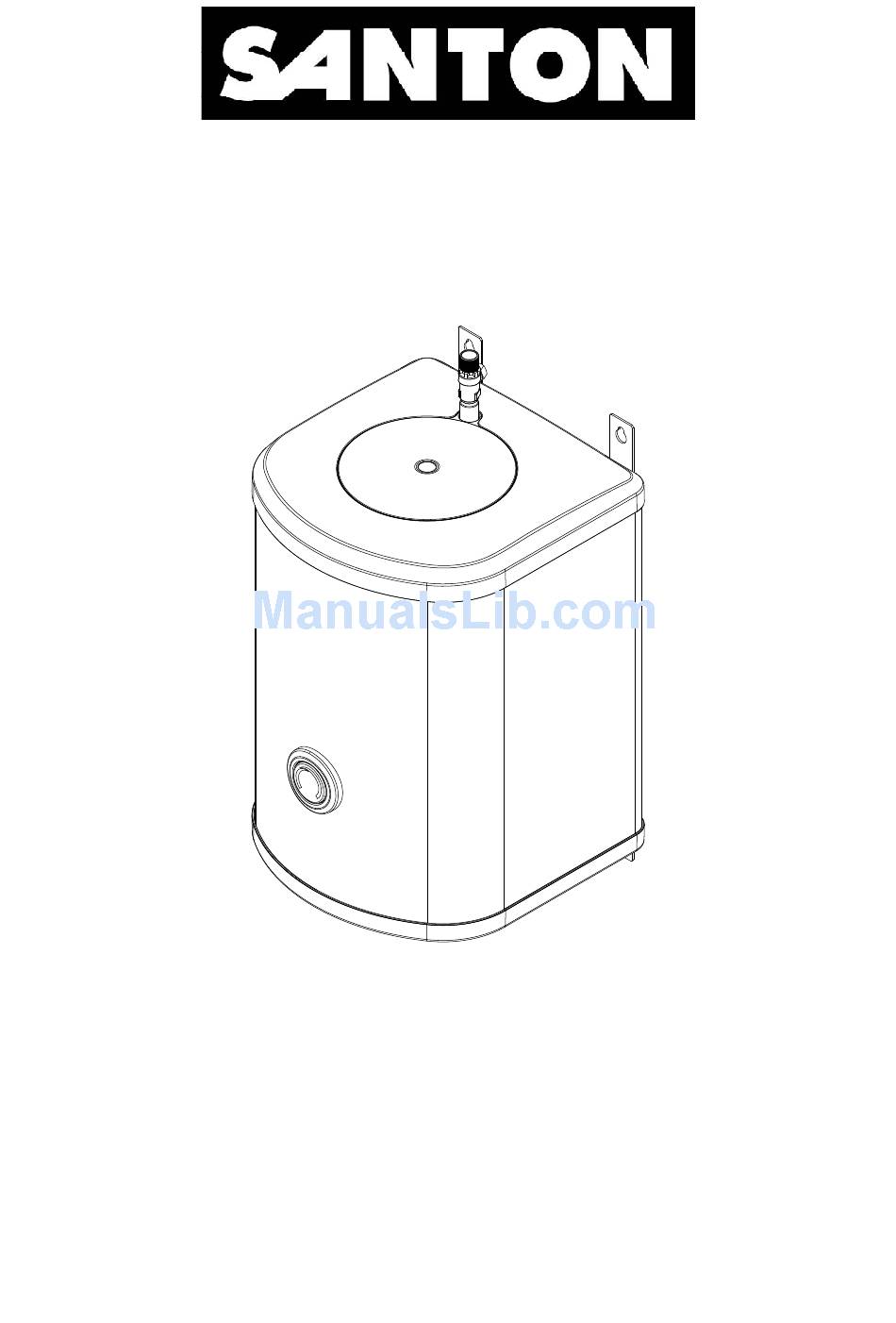

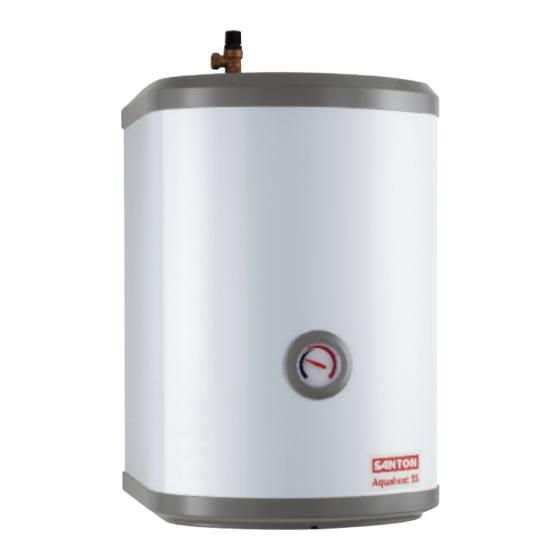

Installation and User Instructions
Aquaheat Unvented Water Heaters
Models: SS V 50/80 & 100
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation.
PACK CONTENTS
Heater, Installation & User Instructions.
WARNING
This water heater must only be installed by qualified persons.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aquaheat SS V 50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Santon Aquaheat SS V 50

  • Page 1 Installation and User Instructions Aquaheat Unvented Water Heaters Models: SS V 50/80 & 100 Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation. PACK CONTENTS Heater, Installation & User Instructions. WARNING This water heater must only be installed by qualified persons.
  • Page 2: Table Of Contents

    CONTENTS SECTION PAGE 1.0 INTRODUCTION 2.0 TECHNICAL SPECIFICATION 3.0 INSTALLATION 4.0 COMMISSIONING 5.0 EXPLANATION TO CUSTOMER 6.0 MAINTENANCE 7.0 SPARE PARTS 8.0 FAULT FINDING 9.0 ACCESSORIES 10.0 GUARANTEE 11.0 ENVIRONMENTAL INFORMATION 12.0 SPARES STOCKISTS...
  • Page 3: Introduction

    1.0 INTRODUCTION Thank you for purchasing a Santon Aquaheat SS unvented water heater. The Aquaheat SS water heater is manufactured in the UK to the highest standards and has been designed to meet all the latest relevant safety specifications. 1.1 IMPORTANT POINTS The Aquaheat SS must be installed and commissioned by a competent person.
  • Page 4: Technical Specification

    1.2 PACK CONTENTS Before commencing installation please check that the following components have been supplied in the Installation Kit: • Aquaheat SS Unit (x1) • Expansion vessel 3/4” BSP male, precharge pressure 3.5bar (x1) • Expansion vessel wall mounting bracket (x1) •...
  • Page 5 PERFORMANCE TABLE 01: Aquaheat SS Performance; Heatup, Recovery & Heat Loss MODEL HEAT UP TIME RECOVERY STANDING HEAT- (MINS) (MINS) LOSS kWhr/24hr 50 litre 1.5kW 50 litre 3.0kW 80 litre 1.5kW 80 litre 3.0kW 100 litre 1.5kW 100 litre 3.0kW •...
  • Page 6 DIAGRAM 01: AQUAHEAT SS WATER HEATER- DIMENSIONS & IMPORTANT FEATURES 01 TEMPERATURE / PRESSURE RELIEF VALVE 02 THERMOMETER 03 COMBINED THERMOSTAT & CUT-OUT 04 ELEMENT 05 TERMINAL BLOCK 06 CABLE CLAMP 07 HOT OUTLET 08 COLD INLET 09 INDICATOR LIGHT 50 LITRE DIMENSION 80 LITRE...
  • Page 7: Installation

    3.0 INSTALLATION Warning: this appliance must be earthed. It is suitable for A.C. supply only. Electri- cal installation must be carried out by a competent electrician and be in accordance with the latest I.E.E. wiring regulations. Ensure the electrical supply is switched off before making any connections to the Aquaheat SS.
  • Page 8 3.2 PLUMBING To make installation of the Aquaheat SS easier it is supplied with a Non Return Valve, Expansion Vessel and Pressure Relief Valve. Plumb the Aquaheat SS water heater as shown below in Diagram 02. Ensure the Pressure Reducing Valve is installed in the correct orientation by reference to the direction of the flow arrow marked on it.
  • Page 9 3.3 DISCHARGE It is a requirement of Building Regulations that any discharge from an unvented system should be visible and safely conveyed away from the system without danger to persons in or about the building where it is installed. The discharge pipe should be fitted in accordance with the requirements and guidance notes of Building Regulations.
  • Page 10 The expansion relief valve is to be operated regularly to remove lime deposits and to verify that it is not blocked. The discharge pipe connected to the pressure relief device is to be installed in a continuously downward direction and in a frost free environment G3 GUIDANCE SECTION 3.9 The discharge pipe (D1) (see Diagram 03, page 12) from the vessel up to and including the tundish is generally supplied by the manufacturer of the hot water storage system.
  • Page 11 iii. Discharges at high level; e.g. into a metal hopper and metal down pipe with the end of the discharge pipe clearly visible (tundish visible or not) or onto a roof capable of withstanding high temperature discharges of water and 3m from any plastics guttering system that would collect such discharges (tundish visible).
  • Page 12 TABLE 02: Sizing of copper discharge pipe (D2) for common T&P relief valve sizes. Valve Minimum Minimum size Maximum resistance Resistance outlet size of of discharge allowed, expressed as a created by size discharge pipe D2 from length of straight pipe each bend.
  • Page 13 3.4 ELECTRICAL WARNING: THIS APPLIANCE MUST BE EARTHED. IT IS SUITABLE FOR A.C. SUPPLY ONLY. DISCONNECT THE ELECTRICAL SUPPLY BEFORE REMOV- ING THE BASE COVER. INSTALLATION MUST BE IN ACCORDANCE WITH THE CURRENT I.E.E. REGULATIONS. The electrical supply to the property must be checked to ensure it is of sufficient current rating and voltage.
  • Page 14: Commissioning

    4.0 COMMISSIONING 4.1 PLUMBING WARNING: Water that is left standing in a stainless steel water cylinder for long periods without draw-off will become de-oxygenated and potentially corrode the vessel material. If the installation is to be left unused following installation and com- missioning, the water cylinder must be drained or regularly flushed (once a week) through with fresh mains water.
  • Page 15: Explanation To Customer

    IF WATER DISCHARGES FROM ANY SAFETY VALVE FITTED SWITCH OFF THE ELECTRICAL SUPPLY TO THE UNIT IMMEDIATELY. CONTACT THE SANTON SERVICE TEAM (TEL: 0844 8711530) OR AN APPROVED INSTALLER. DO NOT TURN THE ELECTRICAL SUPPLY ON AGAIN UNTIL THE UNIT HAS BEEN CHECKED AND APPROVED BY A QUALIFIED INSTALLER.
  • Page 16 6.1 DESCALING Little maintenance is required, however in hard water areas the unit will require periodic descaling to ensure efficient operation. To descale the unit: Switch off and disconnect the electrical supply. Turn off the water supply to the unit. Open a hot tap to relieve any system pressure.
  • Page 17 6.3 EXPANSION VESSEL PRECHARGE PRESSURE The Expansion Vessel should have a precharge pressure of 3.5 bar (51p.s.i.). This can reduce over time and eventually require re-charging. To do this: Turn off water supply to the unit; open a hot tap to relieve system pressure. Remove dust cap from top of Expansion Vessel.
  • Page 18: Spare Parts

    Please refer to the Rating Label on the side of your heater before ordering to ensure the correct spare part is obtained. Do not replace with parts not recommended by Santon. This will invalidate your guarantee and may render the installation dangerous.
  • Page 19 DIAGRAM 05: SPARE PARTS...
  • Page 20: Fault Finding

    Fault Finding should be carried out by a competent person and any replacement parts used should be authorised Santon Aquaheat SS spare parts. TABLE 04: Fault finding table...
  • Page 21: Accessories

    A Thermostatic Blending Valve can be used in conjunction with the Aquaheat SS Water Heater. Santon supply both TMV2 approved (Pack U3, code number 95 970 010) and TMV3 approved (Pack U7 95 970 037) Thermostatic Blending Valves.
  • Page 22: Guarantee

    • Any valves and controls fitted are of Santon recommended type and specifica- tion. • The Aquaheat SS has not been modified or tampered with in any way, and has been regularly maintained as detailed in these instructions.
  • Page 23: Environmental Information

    11.0 ENVIRONMENTAL INFORMATION This product is manufactured from many recyclable materials. At the end of its useful life it should be disposed of at a Local Authority Recycling Centre in order to realise the full environmental benefits. Insulation of the domestic hot water cylinder is by means of an approved CFC/HCFC free polyurethane foam with an ozone depletion factor of zero and a Global Warming Potential (GWP) of 3.1.
  • Page 24: Spares Stockists

    Bristol, BS30 8XT Tel: 0117 961 6670 William Wilson Ltd. Unit 3A, 780 South Street Whiteinch, Glasgow, G14 OSY Tel: 0141 434 1530 Hurricane Way, Norwich, Service: 0844 8711530 Norfolk, NR6 6EA. Service Fax: 0844 8711528 Email: santonservice@heateam.co.uk www.santon.co.uk © 2010 36006072_issue_02...
