Installation and User Instructions
Instantaneous Hand Wash
Models: EV 2008
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation
PACK CONTENTS
Heater, Fixing screws and plugs,
Installation and User Instructions.
WARNING
This Instantaneous Hand Wash must only be installed by
qualified persons.
36006008 Issue 3.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Santon EV 2008
Summary of Contents for Santon EV 2008

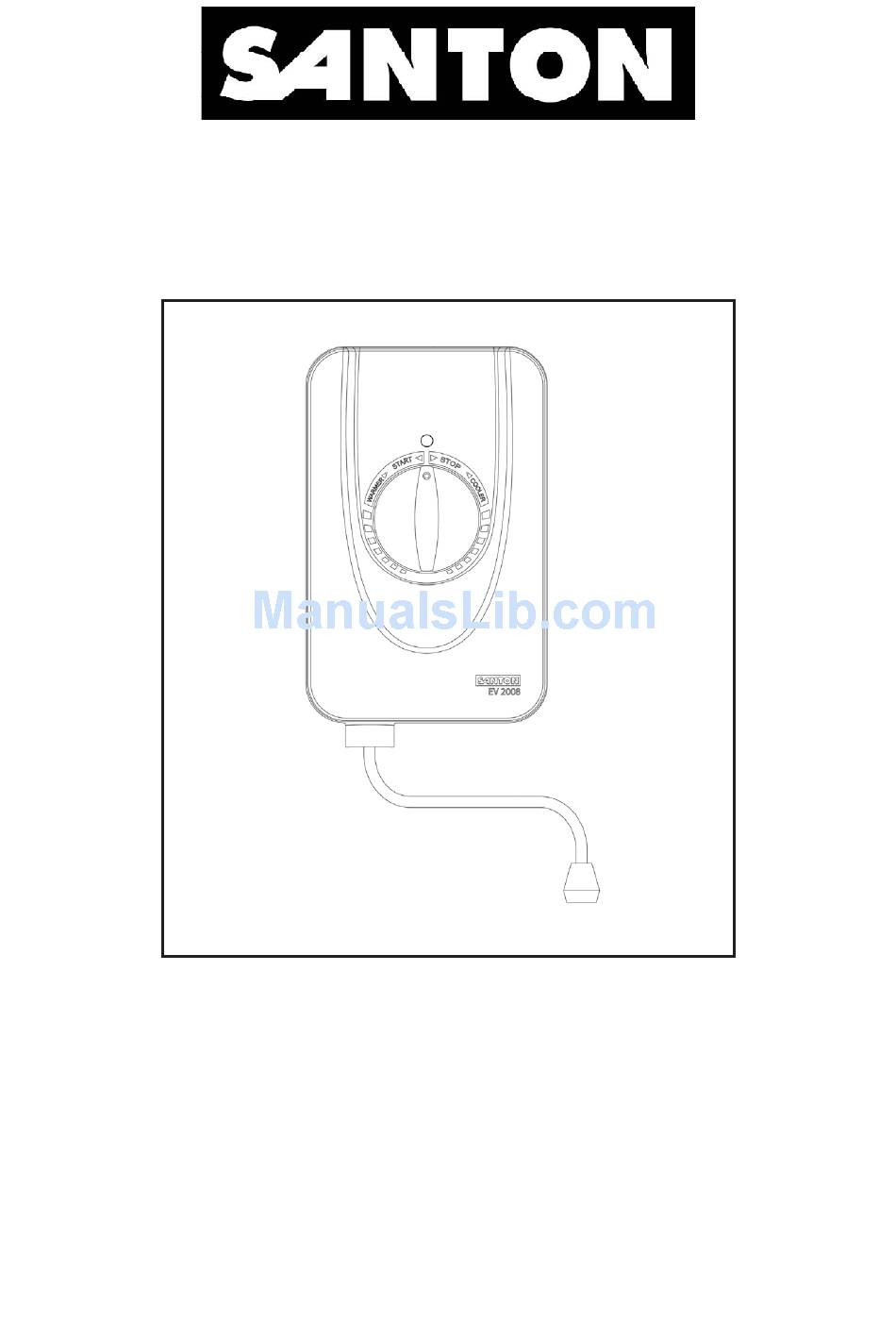

- Page 1 Installation and User Instructions Instantaneous Hand Wash Models: EV 2008 Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation PACK CONTENTS Heater, Fixing screws and plugs, Installation and User Instructions. WARNING This Instantaneous Hand Wash must only be installed by qualified persons.
-
Page 2: Standards And Approvals

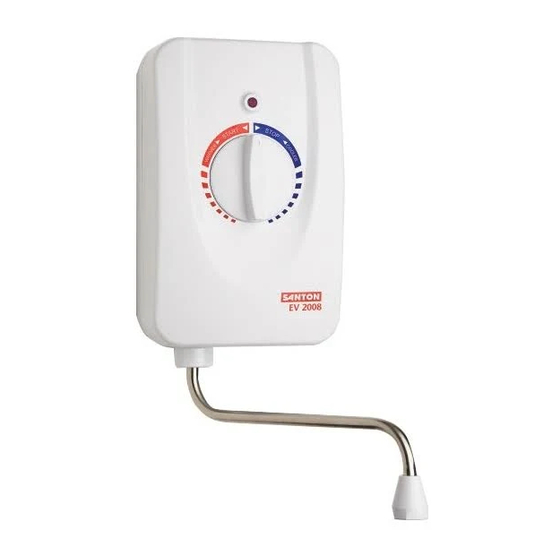

INTRODUCTION Thank you for purchasing a Santon EV2008 Handwash. The Handwash instantaneous water heater is manufactured to the highest standards and has been designed to meet all the latest relevant safety specifications. This Handwash instantaneous water heater must be installed (Sections 4.0-7.0), commissioned (Section 7.0) and maintained (Sections 8.0 - 9.0) by a competent... -
Page 3: Internal Components
(refer to fig.2 page 6 for 7.2kW ) 2.0 SAFETY IMPORTANT INFORMATION Products manufactured by Santon are to British and European Standards. These appliances are safe and without risk, provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. - Page 4 DO NOT operate the appliance if: 1. Water ceases to flow during use. 2. Water has entered inside the unit because of an incorrectly fitted cover. 3. If the appliancet is damaged. ISOLATE the electrical and water supplies before removing the cover. ISOLATE the electrical and water supplies BEFORE proceeding with installation or servicing.
- Page 5 ELECTRICAL 2.20 Before fitting the appliance, ensure that the consumer unit and any switches are suitable for the additional load. If in doubt, contact your electricity supplier or a qualified electrician. 2.21 The installation must comply with BS 7671 ‘Requirements for electrical installations’...
-
Page 6: Site Requirements
3.0 SITE REQUIREMENTS WARNING The handwash must not be positioned where it will be subjected to freezing conditions. WATER REQUIREMENTS The installation must be in accordance with Water Regulations. To ensure activation of the heating elements, the handwash must be connected to a mains water supply with a minimum running pressure of 0.1 MPa (1 bar) and a maximum static pressure of 0.7 MPa (7 bar). - Page 7 The appliance must be earthed IMPORTANT - INSTALLATION TO BE DONE BY A COMPETENT INSTALLER The installation supply cable and circuit protection must conform to BS 7671. Before making any sort of electrical connection, ensure that no terminal within the circuit is live. If in any doubt SWITCH OFF the whole installation at the consumer unit.
- Page 8 3.11 To obtain full advantage of the power provided by the handwash, use the shortest cable route possible from the consumer unit to the handwash. 3.12 If your consumer unit has a rating below 80A or, if there is no spare fuse way, then the installation will not be straightforward and may require a new consumer unit.
- Page 9 The outlet of the handwash acts as a vent and MUST NOT be connected to any form of outlet flow control, or any other fitting not recommended by Santon. DO NOT fit the handwash to the wall and tile up to the case. It must be fitted on to a finished flat and even wall surface.
-
Page 10: Fitting Instructions
PIPE ENTRY Plumbing entry can be from the rear (preferred) or from the bottom. The backplate has a cut out position to suit 15mm pipe.When opting for bottom entry make cut out before fitting backplate to the wall - see Figure 6. -
Page 11: Pipe Connection
PIPE CONNECTION The outlet spout can be removed to ease installation. The handwash has been designed for a 15mm water pipe using the pushfit connection - see Fig. 11 on page 12. 5.10 Decide where to connect the cold water mains feed to the handwash. Ensure that the pipe you have selected is not a gas pipe or a hot water pipe. - Page 12 5.11 An isolating stopvalve MUST be incorporated to the main water supply to comply with Water Regulations - see Fig. 4. 5.12 Cut all necessary pipework to length with a pipecutter and not a hacksaw. This will minimise the swarf and prevent damage to the sealing o-ring in the pushfit fitting - see Figure 10.
-
Page 13: Electrical Connections
6.0 ELECTRICAL CONNECTIONS WARNING This appliance must be earthed. CAUTION When working on electrical components ensure they are NOT LIVE. If in any doubt, SWITCH OFF THE ELECTRICITY SUPPLY. A double-pole isolating switch having a contact separation of 3mm in each pole MUST be incorporated to the circuit - see paragraphs 4.10 and 4.11. - Page 14 7.0 COMMISSIONING NOTE: The first operation of the handwash is intended to ensure the heater unit contains water before the appliance is switched on. Before turning on the electricity and mains water to the handwash, ensure the control knob is turned fully clockwise. Turn on the main water supply at the isolating stop valve and slowly turn the control knob clockwise, (it will take appoximately 30 seconds for a smoth flow of water to be obtained whilst any air is being dispersed from the...
-
Page 15: Fault Finding
Do not attempt any electrical or plumbing work unless you are competent to do so. If you still cannot solve the problem, please contact Santon. INSPECTION It is advisable that, in the interests of safety, the handwash and its electrical installation is checked by a competent electrician, at least every two years. -
Page 16: Maintenance
9.0 MAINTENANCE It is recommended that the handwash casing be cleaned using a soft cloth and that the use of abrasive or solvent cleaning fluids be avoided. It is advisable that before cleaning, the isolating switch is turned off, thus avoiding accidental operation of the handwash. -
Page 17: Environmental Information
This guarantee in no way affects the statutory rights of the consumer. The policy of Santon is one of continuous product development and, as such, we reserve the right to change specifications without notice. - Page 18 Notes: _________________________________________________________...
- Page 19 Notes: _________________________________________________________...
-
Page 20: Spares Stockists
Units 9 & 10 Hexagon Business Centre Springfield Road, Hayes Middlesex, UB40 0TY Tel: 020 8606 3567 Sales Tel: (08700) 603263 Sales Fax: (08700) 600403 Hurricane Way, Sales Email: sales@santon.co.uk Norwich, Service Tel: (08701) 600126 Norfolk, NR6 6EA. Service Fax: (08701) 600181 www.santon.co.uk ServiceEmail: santonservice@ heateam.co.uk...
