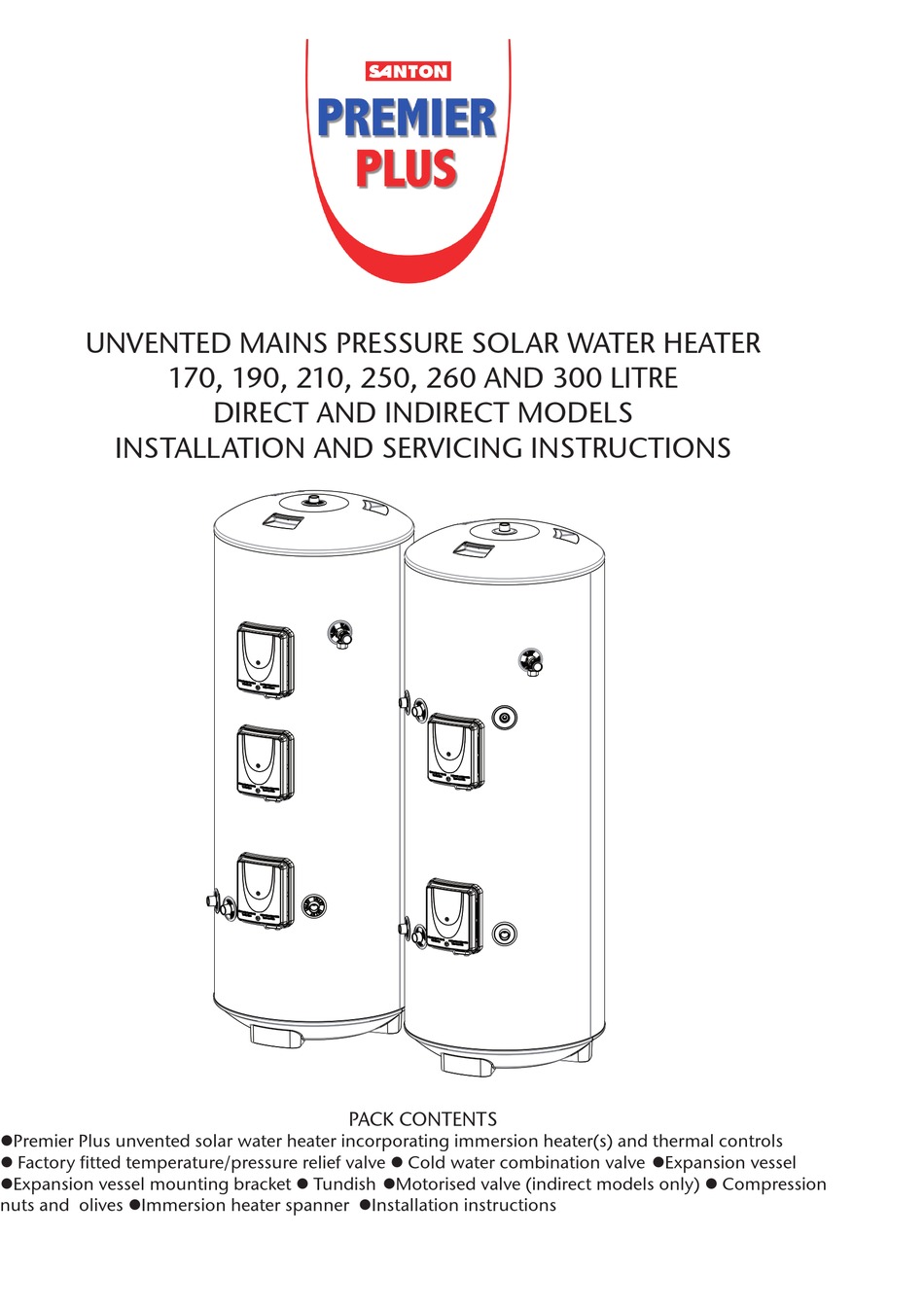

SANTON PREMIER PLUS SOLAR INSTALLATION AND SERVICING INSTRUCTIONS. PLEASE LEAVE THIS MANUAL WITH THE UNIT FOR FUTURE REFERENCE. CONTENTS SECTION CONTENT PAGE INTRODUCTION ..............4 GENERAL REQUIREMENTS ............. 5 INSTALLATION - GENERAL ............6 INSTALLATION - SOLAR PRIMARY ........... 13 INSTALLATION - DIRECT UNITS ..........
Page 3
IMPORTANT: PLEASE READ ALL THESE INSTRUCTIONS BEFORE COMMENCING INSTALLATION THE INFORMATION CONTAINED IN THESE INSTRUCTIONS DETAILS HOW TO CONNECT THE PREMIER PLUS SOLAR CYLINDER TO A SOLAR PRIMARY CIRCUIT. OTHER CONTROLS WILL BE NECESSARY TO PROVIDE CONTROL OVER THE SOLAR PRIMARY CIRCUIT, REFER TO THE INSTRUCTIONS SUPPLIED WITH THE SOLAR CONTROLS AND ANCILLARY EQUIPMENT FOR DETAILS OF HOW TO INTEGRATE THEM WITH THE PREMIER PLUS SOLAR CYLINDER.
1.0 INTRODUCTION The Santon Premier Plus Solar is a purpose designed unvented solar water heater. The unit has a stainless steel inner vessel which ensures an excellent standard of corrosion resistance. The outer casing is a combination of resilient thermoplastic mouldings and corrosion proofed steel (Plastisol) sheet. All Premiers are insulated with CFC/HCFC free polyurethane foam to meet the latest European heat loss requirements (see Table 3).
2.3 OUTLET/TERMINAL FITTINGS (TAPS, ETC.) The Santon Premier Plus Solar can be used with most types of terminal fittings. It is advantageous in many mixer showers to have balanced hot and cold water supplies. In these instances a balanced pressure cold water connection should be placed between the cold water combination valve and the Premier Plus water heater.
3.5 bar. The expansion vessel must be connected between the cold water combination valve and the Santon PremierPlus solar (see Fig. 5). The location of the expansion vessel should allow access to recharge the pres- sure as and when necessary, this can be done using a normal car foot pump. It is recommended that the expansion vessel is adequately supported.
Page 7
FIG. 1 Cold Water Combination Valve Expansion valve Expansion valve FIG. 2 Secondary circulation connection outlet (15mm) Cold mains connection (22mm) Outlet connection (22mm) Pressure reducing valve cartridge (3.5bar) FIG. 3 General Dimensions and features SOLAR PRIMARY RETURN SOLAR PRIMARY FLOW AUXILLARY BOILER RETURN (INDIRECT MODELS ONLY) AUXILLARY BOILER FLOW...
Page 8
INSTALLATION - DISCHARGE It is a requirement of Building Regulation G3 that any discharge from an unvented system is conveyed to where it is visible, but will not cause danger to persons in or about the building. The tundish and discharge pipes should be fitted in accordance with the requirements and guidance notes of Building Regulation G3.
Page 9
(D2) to be connected. 3.60 The discharge pipe should not be connected to a soil discharge stack unless it can be demonstrated that that the soil discharge stack is capable of safely withstanding temperatures of the water discharged, in which case, it should: (a) contain a mechanical seal, not incorporating a water trap, which allows water into the branch pipe without allowing foul air from the drain to be ventilated through the tundish;...
Page 10
Table 4 Va lve outle t size Minim um size of Minim um size of Ma x im um Re sista nce discha rge pipe discha rge pipe re sista nce cre a te d by e a ch D2 from tundish a llow e d, e lbow or be nd e x pre sse d a s a...
Page 11
FIG. 5 Typical installation - schematic Fig 6 - Direct Electrical connections (schematic) Direct Wiring Layout Fig 7 - Adjustment details THERMAL CUT-OUT RESET BUTTON SPINDLE POSITIONS = MINIMUM TEMP 10 °C = MAXIMUM TEMP 72°C = APPROX 60 °C ROTATE SPINDLE CLOCKWISE 1.5mm²...
Page 12
Fig. 8 Control Housing Details Element Connections Indirect control 1.5mm² 3 Core wiring HOFR sheathed cable Fig. 9 THERMAL CUT-OUT PROBE CONTROL ASSEMBLY SOLAR CONTROLLER POWER SUPPLY TO SOLAR CONTROLLER...
4.1 CONNECTION TO PRIMARY CIRCUIT The lower (solar) coil of the Premier Plus Solar must be connected to a fully pumped solar primary circuit. The con- nections are suitable for 22mm copper pipe direct to the compression fittings provided. The connections are also threaded 3/4”...
6.0 INSTALLATION - AUXILLARY HEATING COIL 6.1 PLUMBING CONNECTIONS Indirect units require the following pipework connections. • Cold water supply to and from inlet controls. • Outlet to hot water draw off points. • Discharge pipework from valve outlets to tundish •...
Page 15
5. DO NOT MOUNT WIRING CENTRE ON CYLINDER. 6. THE ABOVE DIAGRAM IS FOR GUIDANCE ONLY, SANTON ACCEPT NO LIABILITY FOR ANY LOSS OR DAMAGE ARISING FROM ANY ERRORS OR OMISSIONS. THAT MAY BE INADVERTENTLY CONTAINED WITHIN THIS DIAGRAM. THE VARIOUS EQUIPMENT MANUFACTURERS SHOULD BE CONSULTED TO CONFIRM THE CORRECT OPERATION OF THEIR PRODUCTS WITHIN THE SYSTEM.
The log book should be left with the customer along with these instructions. The log book includes sections that should be filled out when any subsequent service or maintenance operation is carried out on the Premier Plus system.
Unscrew immersion heater backnut(s) and remove immersion heater from the unit. A key spanner is supplied with the Premier Plus Solar unit for easy removal/ tightening of the immersion heater(s). Over time the immersion heater gasket may become stuck to the mating surface.
Page 18
8.7 BENCHMARK LOG BOOK On completion of any maintenance or service of the Premier Plus the Benchmark “Installation, Commissioning and Service Record Log Book” should be filled in to record the actions taken and the date the work was undertaken.
(INDIRECT UNITS) AND SHUT DOWN THE SOLAR PRIMARY CIRCUIT. DO NOT TURN OFF ANY WATER SUPPLY. CONTACT A COMPETENT INSTALLER FOR UNVENTED WATER HEATERS TO CHECK THE SYSTEM. DO NOT TAMPER WITH ANY OF THE SAFETY VALVES FITTED TO THE SANTON PREMIER PLUS SYSTEM. IF A FAULT IS SUSPECTED CONTACT A COMPETENT INSTALLER.
Servicing should only be carried out by competent persons in the installation and maintenance of unvented water heating systems. • Any spare parts used MUST be authorised Santon parts. • Disconnect the electrical supply before removing any electrical equipment covers. •...
Page 21
Table 5 - Fault finding chart Fault Possible Cause Remedy Mains water supply off Check and open stop cock Strainer blocked Turn off water supply. Remove strainer and No hot water flow clean Cold water combination valve incorrectly Check and refit as required fitted Direct immersion heater not switched on Check and switch on Direct immersion heater thermal cut-out...
Guarantee Terms Santon guarantees the PremierPlus against faulty manufacture or materials for a period of 2 year from the date of purchase including parts and labour. This 2 year guarantee is extended to 5 years for the cold water control valve and to 30 years for the stainless steel inner vessel.
