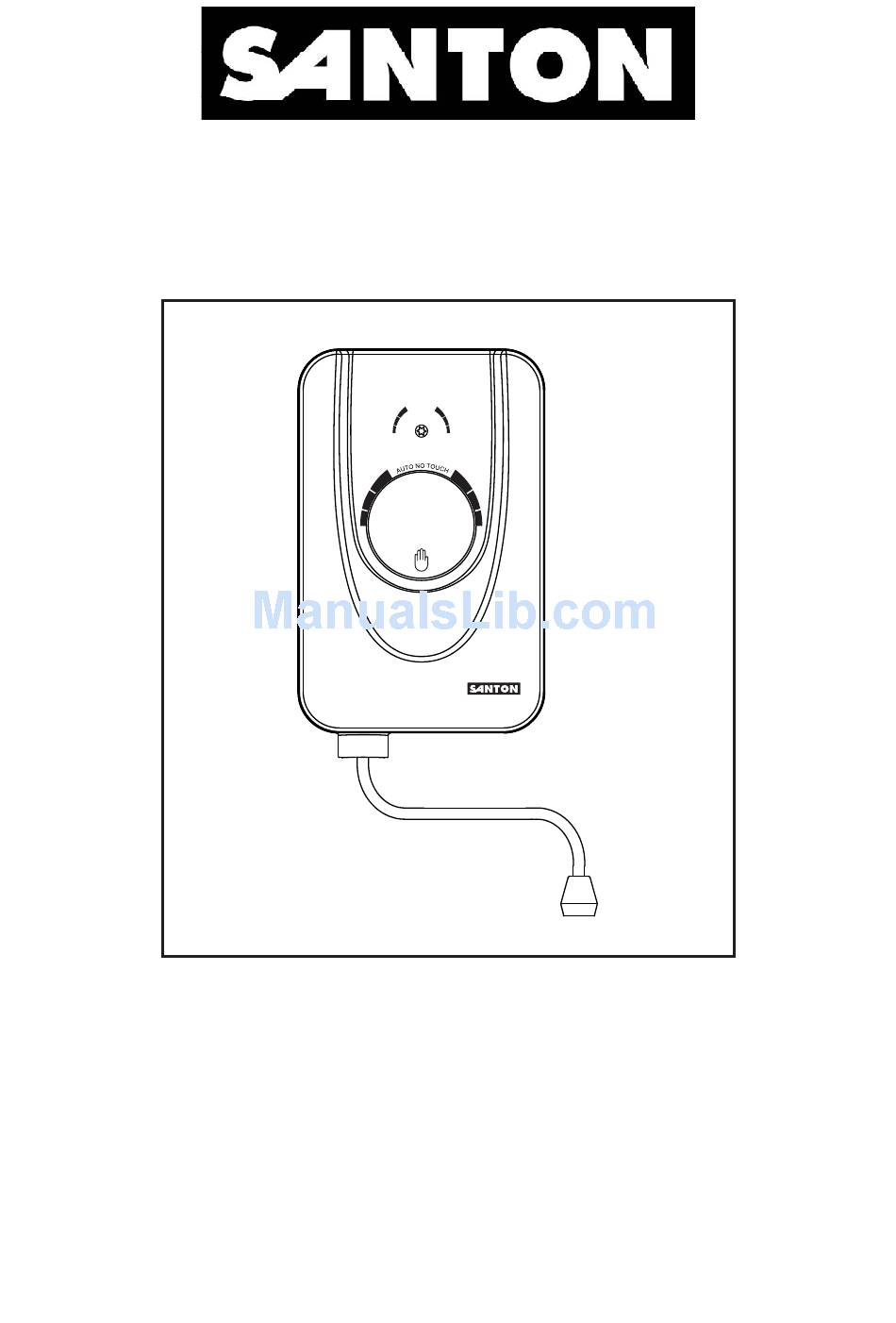

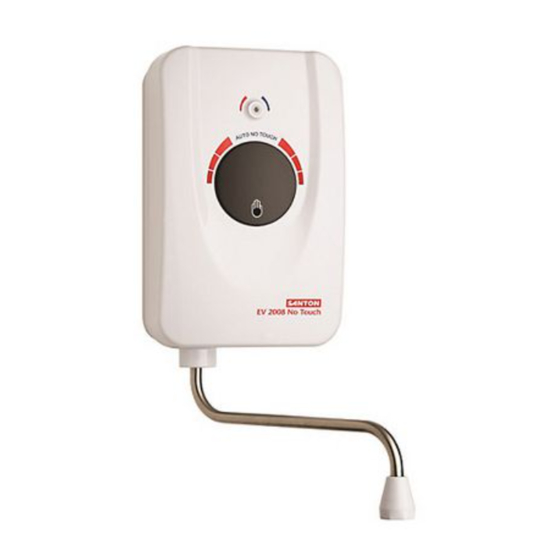

Installation and User Instructions
Instantaneous Hand Wash
Models: EV 2008 No-Touch
EV 2008 No Touch
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation
PACK CONTENTS
Heater, Spout assembly, Fixing screws and plugs,
Torx adjusting tool,
Installation and User Instructions.
WARNING
This Instantaneous Hand Wash must only be installed
by qualified persons.
1
36006007 Issue 4.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV 2008 No-Touch and is the answer not in the manual?

Questions and answers

Related Manuals for Santon EV 2008 No-Touch

Summary of Contents for Santon EV 2008 No-Touch

  • Page 1 Installation and User Instructions Instantaneous Hand Wash Models: EV 2008 No-Touch EV 2008 No Touch Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation PACK CONTENTS Heater, Spout assembly, Fixing screws and plugs, Torx adjusting tool, Installation and User Instructions.

  • Page 2: Standards And Approvals

    INTRODUCTION Thank you for purchasing a Santon EV2008 Hand wash. The Hand wash instan- taneous water heater is manufactured to the highest standards and has been designed to meet all the latest relevant safety specifications. This Hand wash instantaneous water heater must be installed (Sections 4.0-7.0), commissioned (Section 7.0) and maintained (Sections 8.0 - 9.0) by a competent...

  • Page 3: Internal Components

    Figure 1 Internal components - 3.1kW 2.0 SAFETY IMPORTANT INFORMATION Products manufactured by Santon are to British and European Standards. These appliances are safe and without risk, provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations.
  • Page 4 DO NOT operate the appliance if: 1. Water ceases to flow during use. 2. Water has entered inside the unit because of an incorrectly fitted cover. 3. If the appliance is damaged. ISOLATE the electrical and water supplies before removing the cover. ISOLATE the electrical and water supplies BEFORE proceeding with installation or servicing.
  • Page 5 Supplier’s name or trade mark Santon Supplier’s model identifier EV 2008 No-Touch The declared load profile The water heating energy efficiency class of the model The water heating energy efficiency in % 38.6...

  • Page 6: Site Requirements

    3.0 SITE REQUIREMENTS WARNING The hand wash must not be positioned where it will be subjected to freezing conditions. WATER REQUIREMENTS The installation must be in accordance with Water Regulations. To ensure activation of the heating elements, the hand wash must be connected to a mains water supply with a minimum running pressure of 0.1 MPa (1 bar) and a maximum static pressure of 0.7 MPa (7 bar).
  • Page 7 3.4 The appliance must be earthed IMPORTANT - INSTALLATION TO BE DONE BY A COMPETENT INSTALLER The installation supply cable and circuit protection must conform to BS 7671. Before making any sort of electrical connection, ensure that no terminal within the circuit is live. If in any doubt SWITCH OFF the whole installation at the consumer unit.
  • Page 8 3.11 To obtain full advantage of the power provided by the hand wash, use the shortest cable route possible from the consumer unit to the hand wash. 3.12 If your consumer unit has a rating below 80A or, if there is no spare fuse way, then the installation will not be straightforward and may require a new consumer unit.
  • Page 9 The outlet of the hand wash acts as a vent and MUST NOT be connected to any form of outlet flow control, or any other fitting not recommended by Santon. DO NOT fit the hand wash to the wall and tile up to the case. It must be fitted on to a finished flat and even wall surface.

  • Page 10: Fitting Instructions

    PIPE ENTRY Plumbing entry can be from the rear (preferred) or from the bottom. The backplate has a cut out position to suit 15mm pipe. When opting for bottom entry make cut out before fitting backplate to the wall - see Figure 6 below.

  • Page 11: Pipe Connection

    PIPE CONNECTION The hand wash has been designed for a 15mm water pipe using the pushfit connection - see Fig. 11, p12. Decide where to connect the cold water mains feed to the hand wash. Ensure that the pipe you have selected is not a gas pipe or a hot water pipe.
  • Page 12 5.10 An isolating stopvalve MUST be incorporated to the main water supply to comply with Water Regulations - see Fig. 4 p9. 5.11 Cut all necessary pipework to length with a pipe cutter and not a hacksaw. This will minimise the swarf and prevent damage to the sealing o-ring in the pushfit fitting - see Figure 10 below.

  • Page 13: Electrical Connections

    6.0 ELECTRICAL CONNECTIONS WARNING This appliance must be earthed. CAUTION When working on electrical components ensure they are NOT LIVE. If in any doubt, SWITCH OFF THE ELECTRICITY SUPPLY. A double-pole isolating switch having a contact separation of 3mm in each pole MUST be incorporated to the circuit - see Figure 3 p7.
  • Page 14 7.0 COMMISSIONING NOTE: The first operation of the hand wash is intended to ensure the heater unit contains water before the appliance is switched on. Before turning on the electricity and mains water to the hand wash, ensure the torx adjusting screw is turned fully anti-clockwise - see figure 15 below.

  • Page 15: Fault Finding

    IMPORTANT Do not attempt any electrical or plumbing work unless you are competent to do so. If you still cannot solve the problem, please contact Santon. INSPECTION It is advisable that, in the interests of safety, the handwash and its electrical installation is checked by a competent electrician, at least every two years.

  • Page 16: Maintenance

    9.0 MAINTENANCE It is recommended that the hand wash casing be cleaned using a soft cloth and that the use of abrasive or solvent cleaning fluids be avoided. It is advisable that before cleaning, the isolating switch is turned off, thus avoiding accidental operation of the hand wash.

  • Page 17: Spare Parts

    10.0 SPARE PARTS 10.1 The following comprehensve list of spare parts is available for your Santon handwash. Please refer to the rating label on the side of your heater before ordering to ensure the correct spare part is obtained. DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY SANTON AS THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER THE INSTALLATION DANGEROUS.

  • Page 18: Environmental Information

    This guarantee in no way affects the statutory rights of the consumer. The policy of Santon is one of continuous product development and, as such, we reserve the right to change specifications without notice. Environmental Information Santon products are manufactured from many recyclable materials.
  • Page 19 Notes: ______________________________________________________...

  • Page 20: Spares Stockists

    Tel: 0117 961 6670 William Wilson Ltd. Unit 3A, 780 South Street Whiteinch, Glasgow, G14 OSY Tel: 0141 434 1530 Hurricane Way, After Sales Service: Norwich, T: 0344 871 1530 Norfolk, NR6 6EA. F: 0344 871 1528 www.santon.co.uk E: santon.service@heateam.co.uk © 2013...
