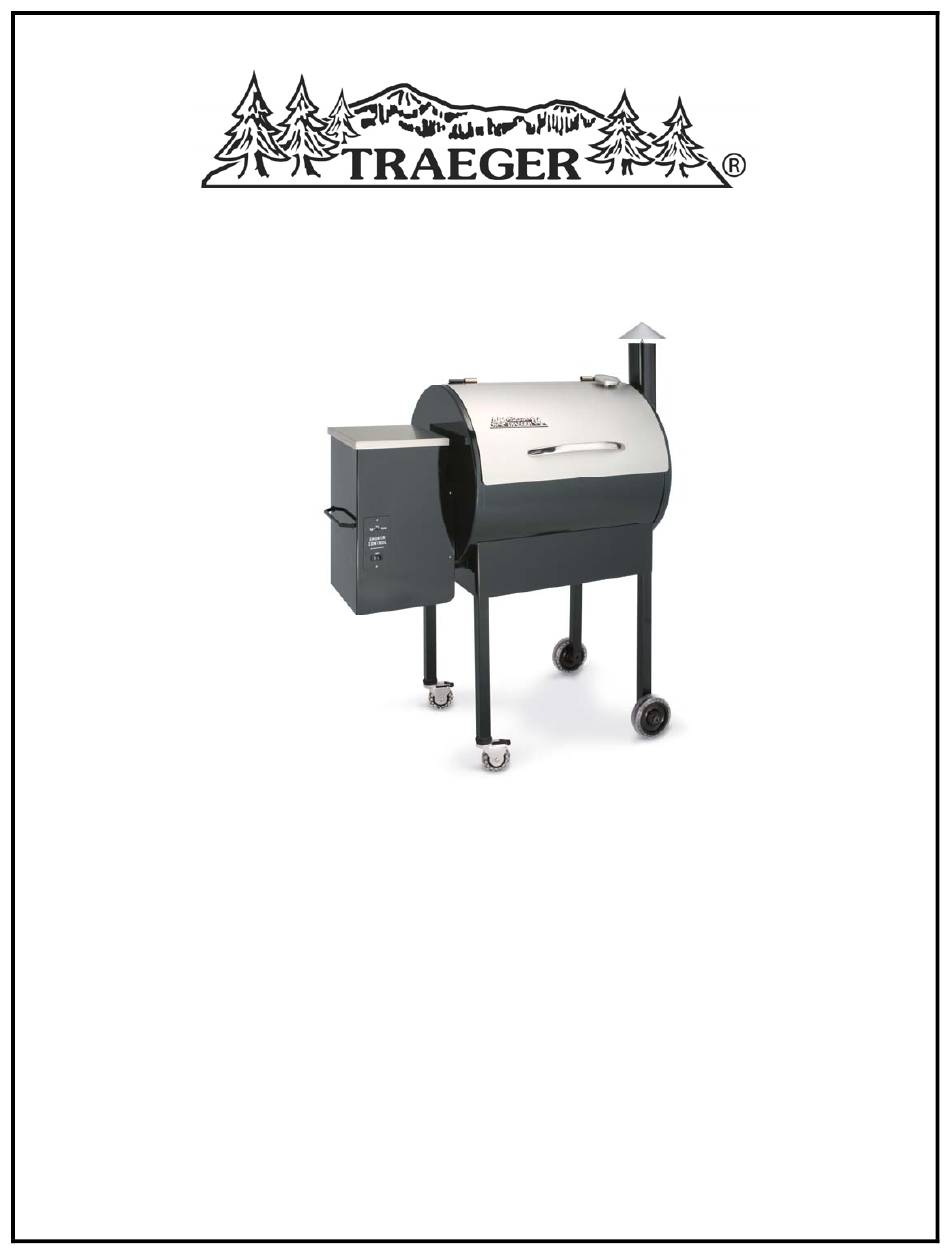

- Page 1 OWNER’S MANUAL BBQ07E RESIDENTIAL PELLET GRILL This Grill Protected Under Patent Number: 4,823,684 FOR OUTDOOR USE ONLY! WARNING! DO NOT STORE OR USE COMBUSTABLE MATERIALS NEAR THIS APPLIANCE! USE ONLY TRAEGER BRAND HARDWOOD BBQ PELLETS IN THE OPERATION OF THIS UNIT.
- Page 4 INTRODUCTION Congratulations on your purchase of this Traeger Wood Pellet Grill, Model BBQ07E. With proper set-up, operation and maintenance, the Grill will provide you with delicious food and years of cooking enjoyment. NOTE: NUMBERS FOLLOWING PART NAMES THROUGHOUT THIS MANUAL REFER TO THE COMPONENT DIAGRAM.
-
Page 5: Section One: Assembly Instructions
SECTION ONE: ASSEMBLY INSTRUCTIONS MOUNTING THE LEGS: 1) Carefully lay the Grill on its back on a non-abrasive surface. 2) Use the Black Bolts, Washers and Nuts (see Detail “A”) supplied in the Hardware Kit (150) to install the Caster Legs (124) on the left end of the Grill and the Wheel Legs (129) on the right end as shown in the diagram below. - Page 6 Note: The RTD Wires from the Grill may be connected to the RTD Wires from the Hopper / Burner Assembly (31) in any combination. ATTACHING THE CHROME DOOR HANDLE: 1) Insert the threaded studs on the Chrome Door Handle (168) through the slots in the Door (104).
- Page 7 Draft Inducer Fan. Look to see if the Hot Rod is getting hot. DO NOT TOUCH IT! Turn the Switch/Dial OFF. 4) Fill the Pellet Hopper with TRAEGER BBQ PELLETS. WARNING! USE ONLY TRAEGER BRAND BBQ PELLETS, which are specifically made to work in our Grills.
-
Page 8: Section Three: Subsequent Start-Up
Power Cord into an appropriate, grounded electrical outlet. 2) Open the Pellet Hopper and fill with TRAEGER BBQ PELLETS. WARNING! USE ONLY TRAEGER BRAND BBQ PELLETS, which are specifically made to work in our Grills. NEVER use heating fuel pellets in the Grill. -
Page 9: Section Four: Operating Tips
SMOKE setting can also be used to “hold” foods at approximately 180 to 200 degrees F. 2) Your TRAEGER PELLET GRILL should never be moved while it is hot. If you are transporting your Grill in a vehicle after cooking on it, make sure the fire is completely out and the Grill is COLD before placing it in any vehicle. -
Page 10: Section Six: Frequently Asked Questions
Pellet Hopper. Wood pellets, when wet, expand greatly and will jam your Auger. A TRAEGER GRILL COVER to protect the Grill is highly recommended! Covers are available from your Traeger Dealer, or log on to our Web Site –... - Page 11 While watching the fan blade, turn the Switch/Dial to ON. If the fan blade does not turn, turn the Switch/Dial to OFF. This indicates a defective Auger Drive Motor and it will need to be replaced. Contact your Traeger Dealer or the Traeger Parts Department (SECTION SEVEN) to place an order.
- Page 12 WHERE CAN I GET A NEW PART FOR MY GRILL? Check with your Traeger Dealer. They may have the part in stock or can order the part for you. Or you can contact the Traeger Parts Department (SECTION SEVEN) to place an order.
- Page 13 SECTION SEVEN: TRAEGER SUPPORT Parts are identified in the front of this manual on the COMPONENT DIAGRAM PAGE. To order parts: Call, E-mail or write to your Traeger Dealer or Traeger Pellet Grills. Please provide your name, phone number, address, Model and Serial Number of the Grill (located on a label inside the Hopper Lid), along with the part identification.
