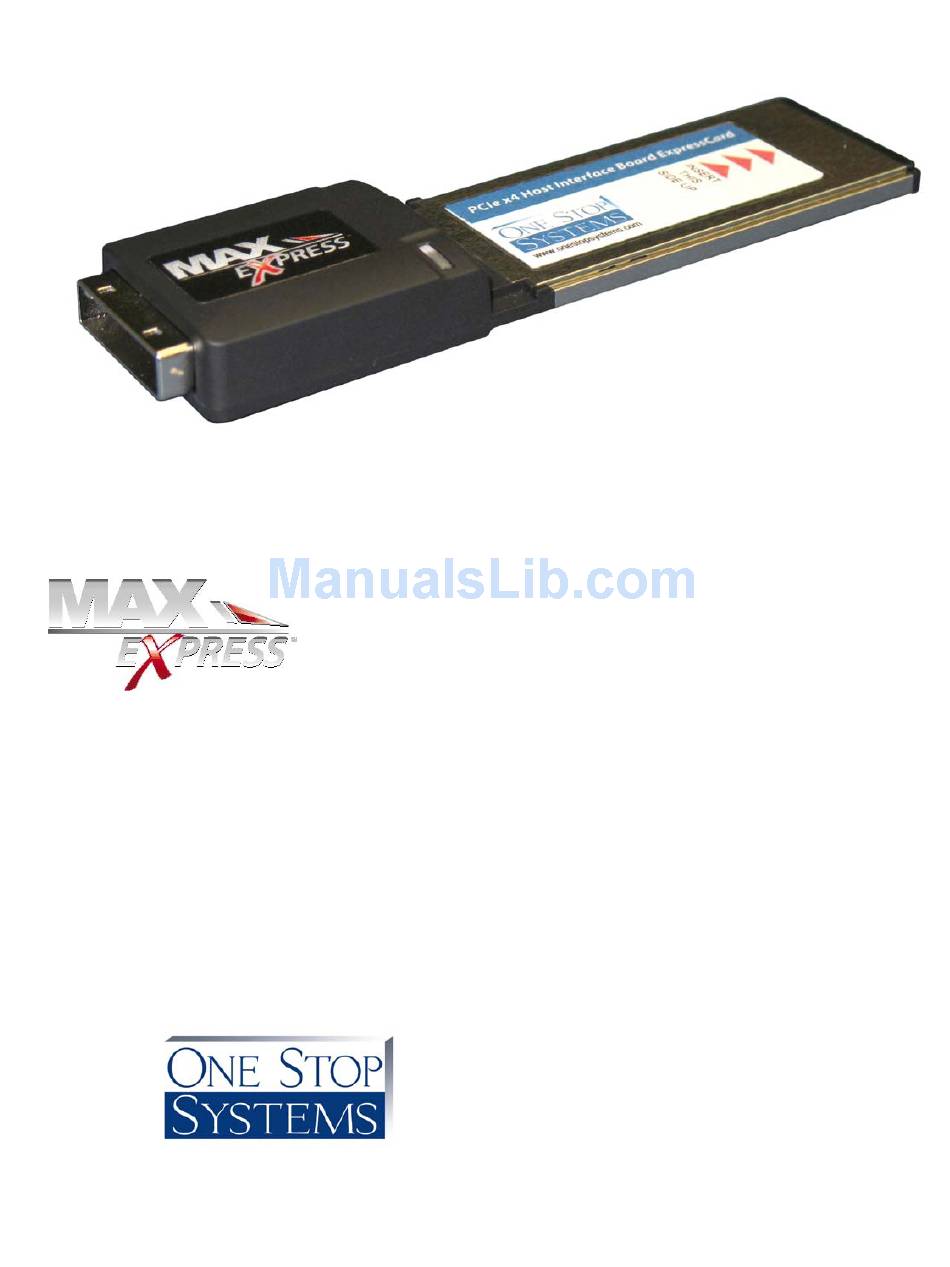

Page 1: User Manual
ExpressCard x4 Cable Adapter User Manual OSS-PCIe-HIB2-EC-x4 2235 Enterprise Street, Suite 110 Escondido, CA 92029 Phone: (760) 745-9883 Fax: (760) 745-9824 www.onestopsystems.com One Stop Systems, Inc. ExpressCard x4 Cable Adapter Manual Rev. A... -
Page 2: Initial Setup
Description The ExpressCard cable adapter (OSS-PCIe-HIB2-EC-x4) is a PCIe x1 ExpressCard/34 adapter that adds high-speed PCI Express (PCIe) expansion capabilities to laptops. The PCIe cable port provides PCIe x1 connectivity to PCIe x4 and x1 external devices or expansion chassis with standard add-in board capability. - Page 3 Pull back on the retractor ring to release the lockin g mechanism and remove the cable from the external cable connector on the ExpressCard cable adapter. Remove the adapter from the slot. One Stop Systems, Inc. ExpressCard x4 Cable Adapter Manual Rev. A...
-
Page 4: Specifications
Vibration: 5-17 Hz 0.5” double amplitude displacement; 7-2000Hz, 1.5g acceleration. Redriver Pericom PIEQX4401 Agency Compliance Designed to meet, but not tested UL60950, FCC Class B, CE safety and emissions One Stop Systems, Inc. ExpressCard x4 Cable Adapter Manual Rev. A... -
Page 5: Block Diagram
LED Color Description Amber Power Green Power + Cable The green LED indicates a complete connection to an active remote system i.e. power must be applied, and both ends connected. One Stop Systems, Inc. ExpressCard x4 Cable Adapter Manual Rev. A... - Page 6 ExpressCard Connector (P1) Pin Assignments Pin # Signal Name Direction WAKE# Output +3.3VAUX PERST# Input +3.3V +3.3V CLKREQ# Output REFCLK- Input REFCLK+ Input PER0- Input/Output PER0+ Input/Output PET0- Input/Output One Stop Systems, Inc. ExpressCard x4 Cable Adapter Manual Rev. A...
-
Page 7: Connector Pin Assignment
Row A, Pin 1 Row A Row B PCI Express x4 Connector Pin Assignment Signal Name Signal Name PET0+ PER0+ PET0- PER0- CREFCLK+ 3.3V CREFCLK- 3.3V CPRSNT# CWAKE# CPWRON CPERST# One Stop Systems, Inc. ExpressCard x4 Cable Adapter Manual Rev. A... -
Page 8: Limited Warranty
One Stop Systems will, at its option, repair or replace this product at no additional charge to the purchaser, if the defect is related to the One Stop Systems manufactured product, such as a power supply, backplane, other chassis components or CPUs. One Stop Systems is not liable for any defects in material or workmanship of any peripherals, products or parts, which One Stop Systems does not design or manufacture.
