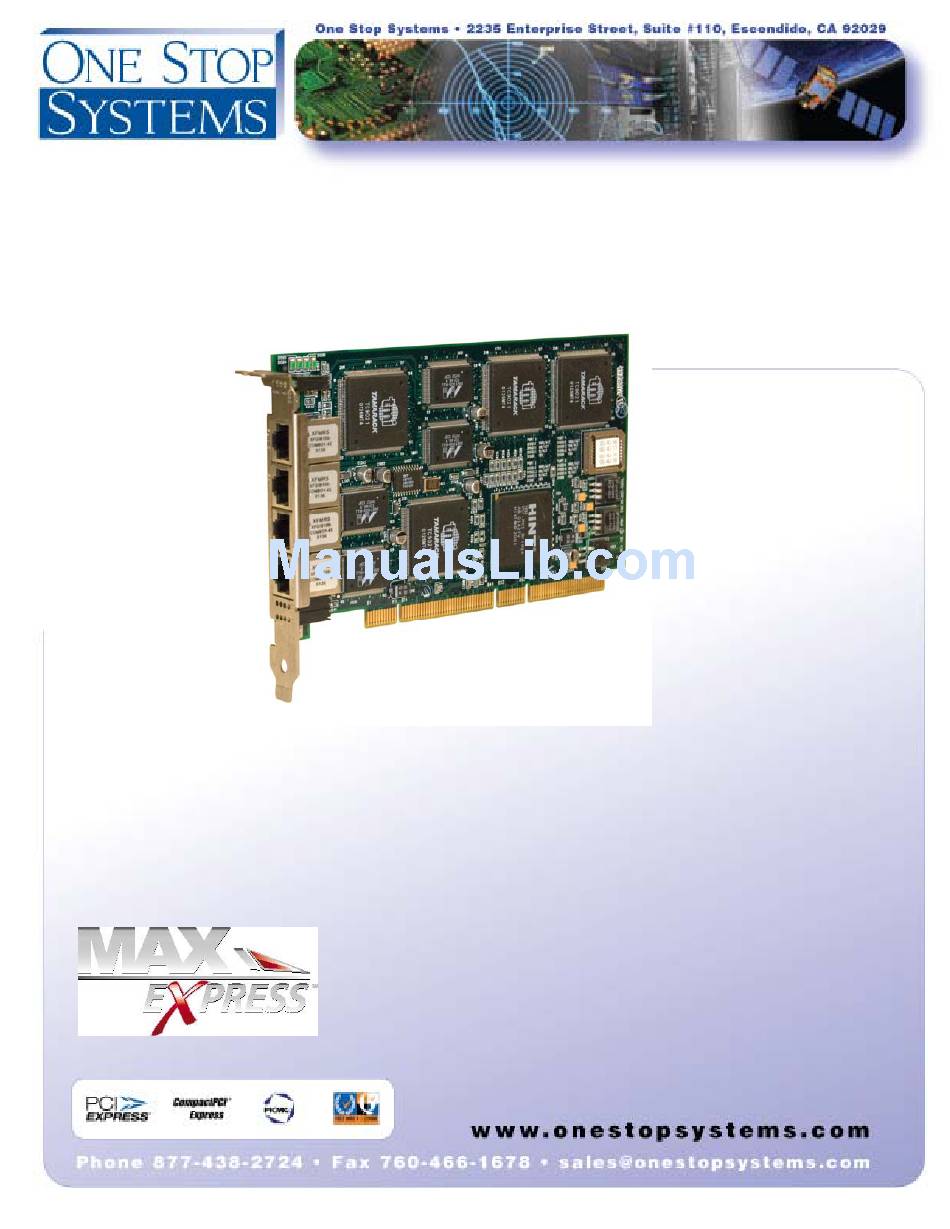

- Page 1 Four Port Gigabit PCI Adapter OSS-lanPCI-4GC One Stop Systems, Inc. OSS-lanPCI-4GC User Manual Rev. A...
- Page 2 Description The OSS-lanPCI-4GC four port Gigabit Ethernet controller is designed to be a high-performance, low cost, LAN connectivity solution for any system or networking device utilizing the PCI standard bus architecture. The adapter is ideal for servers and workstations that require quad Gigabit Ethernet connectivity.
- Page 3 Remove the OSS-lanPCI-4GC from the protective bag, observing proper ESD safety procedures. Installing the OSS-lanPCI-4GC: Insert the OSS-lanPCI-4GC an open 3.3V PCI slot. The adapter is a universal-keyed 64 bit board. Make sure that the adapter is well seated and tighten the screw. Close the chassis according to your system documentation Attach the ethernet cables.
- Page 4 Block Diagram LEDs Front panel LEDs display connection speed, link and full duplex. One Stop Systems, Inc. OSS-lanPCI-4GC User Manual Rev. A...
