connector of ACOM 600S. This will allow the amplifier to follow the changes of the frequency bands automatically
and without any transmission, while the operator is operating with the transceiver.
For control of the amplifier through the CAT/AUX interface you need a special cable between the transceiver and
CAT/AUX connector (type HD-15) on the rear panel of the amplifier – Fig. 2-1. Such a cable can be supplied as
an option along with the amplifier or you can buy it from your dealer additionally, but you can assemble it yourself
as well, using information from table 2-1 and your transceiver's manual.
Schematics of cables for connecting to many transceiver models are readily available in the Technical compact
disk (CD) – an option to the amplifier, as well as on the ACOM Internet page (S. 1-2).

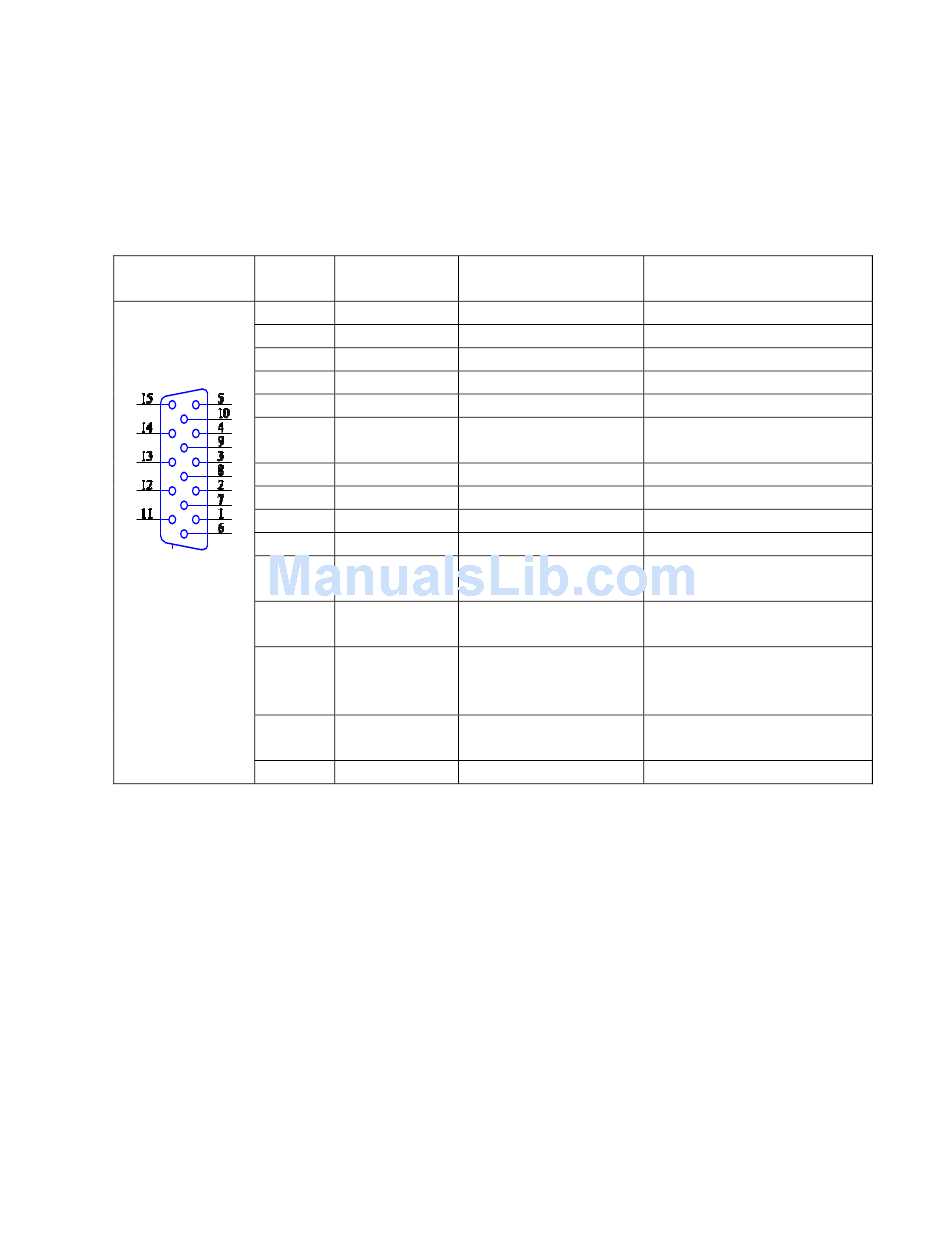

Table 2-1 shows the signals and the pin out of the CAT/AUX connector - rear panel of the amplifier.
CAT/AUX
interface
Rear panel
view
Due to the variety of existing CAT protocols for different transceivers, the
amplifier response may be different for some transceiver models, as
described below.
- Some older transceivers employ a rather slow protocol or send frequency data with a delay of several
seconds – then the amplifier response will be delayed respectively;
- In some cases, when the transceiver is powered on after the amplifier, you may need to press and hold
up for one second the button BAND of the amplifier, up or down (Fig. 3-2), to make the transceiver inform
the amplifier about its frequency; in other occasions, the transceiver transmits its frequency only on
changes and you may need to move slightly the main frequency dial knob or change it in another way in
order to announce it to the amplifier after an initial power turn on;
- in "split" operation, not all transceivers provide frequency data of VFO A and VFO B correctly; if your
receive and transmit frequencies fall in different frequency bands (Cross Band Operation) and the
amplifier unnecessarily switches between them at each transition receive/transmit (RX/TX), you may
deactivate the amplifier's CAT/AUX interface control while operating "split" (S. 5-3 and Fig. 5-3).
PIN PIN NAME
NO.
1 RxD
2 RxD
3 TxD
4 TxD
5 GND
6 BAND
voltage
7 B. data 0
8 B. data 1
9 B. data 2
10 B. data 3
11 ON RMT
12 Debug
mode
13 KEY-IN
14 KEY-OUT
15 GND
DESCRIPTION
Received Data
Received Data
Transmitted Data
Transmitted Data
Ground
Analogue input
Bit 0
Bit 1
Bit 2
Bit 3
Remote Pwr On
CPU only Power
Input
Transmit Request
Transmit Enable
Ground
N O T E
Table 2-1
SPECIFICATIONS
TTL input
RS232 input
RS232 output
TTL output
0 Volt
0 to +8V
TTL input
TTL input
TTL input
TTL input
+4.5 to +15V / 3mAmax
1 to 2 seconds pulse
+8 to + 15V / 0.4A
Rx/Tx control input
Less than +12.6V
Less than 6mA
O.C. output, 0 to +50V
20mA maximum
0 Volt
