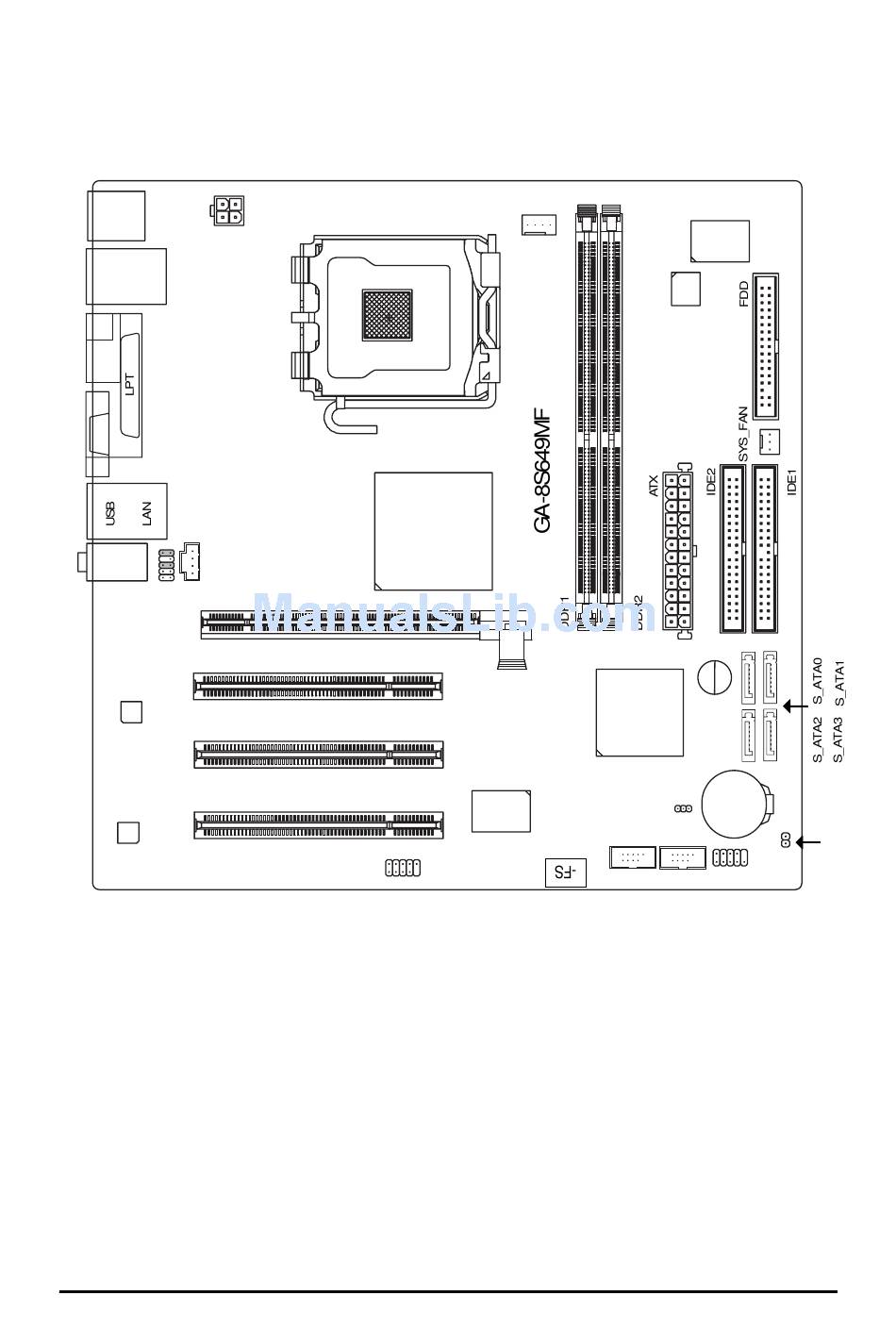

GA-8S649MF-FS Motherboard Layout
CPU_FAN
KB_MS
ATX_12V
IT8705
USB_1394
BIOS
SPDIF_O
LGA775
COMA
AUX_IN
SiS 649
AUDIO
F_AUDIO
PCIE_16
Buzzer
PCI1
RTL8201CL
SiS 965
PCI2
PCI3
BATTERY
SAFE MODE
VT6307
F_USB1
F_USB2
CLR_CMOS
CODEC
F_1394
F_PANEL
- 2 -
