I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Single Stud Short Throw Wall Mount
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PRJ-WALLKIT-11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for InFocus PRJ-WALLKIT-11
Summary of Contents for InFocus PRJ-WALLKIT-11

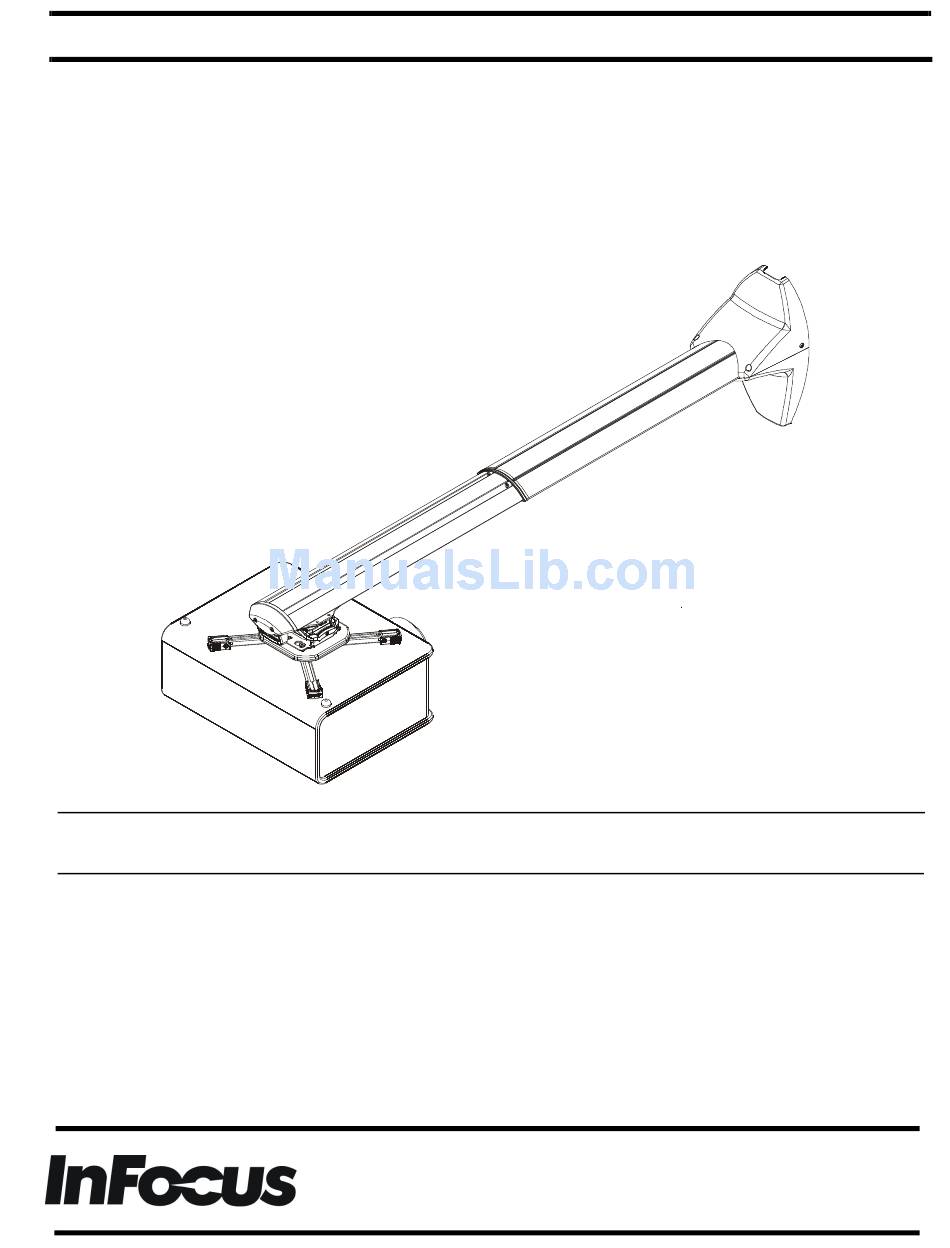

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Single Stud Short Throw Wall Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PRJ-WALLKIT-11...
-
Page 2: Important Safety Instructions
The information contained in this document is subject to change without notice or obligation of any kind. InFocus makes no WARNING: Failure to provide adequate structural strength representation of warranty, expressed or implied, regarding the for this component can result in serious personal injury or information contained herein. - Page 3 Hex-Head Wrench Security Wrench Llave de cabeza hexagonal Llave de seguridad Sechskantschlüssel Sicherheitsschlüssel Chave de cabeça sextavada Chave de segurança Chiave esagonale Chiave di sicurezza Zeskantsleutel Veiligheidssleutel Clé à tête hexagonale Clé de sécurité Visit the InFocus support site at www.infocus.com/support...
-
Page 4: Tools Required For Installation
1/4-20 x 3/8" [not used] [not used] Q (4) Z (2) Y (4) 5/16" X (4) W (4) 5/16" [Concrete anchor] 1/4-20 x 1-1/2" 10-24 x 1-3/8" (Including hardware [not used] and instructions) Visit the InFocus support site at www.infocus.com/support... -
Page 5: Site Requirements
Steel Stud (2 x 4 / 25ga minimum) Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural Members. [362, 125 18, C-Shape, S-Stud Section] Visit the InFocus support site at www.infocus.com/support... -
Page 6: Assembly And Installation
Figure 2) Install four 5/16 x 2-1/2" hex head lag screws (P) through four 5/16" washers (Q), outer holes of wall bracket (B) and into concrete anchors (Y). (See Figure 2) Figure 3 Visit the InFocus support site at www.infocus.com/support... - Page 7 (See Figure 8) Repeat Steps 5 through 8 for each mounting hole. (side view) Steel Stud Drywall Plastic Cap Plastic Straps Steel stud Anchor Metal Channel Figure 5 Figure 8 Visit the InFocus support site at www.infocus.com/support...
-
Page 8: Installation To Wall Bracket
Lift wall mount assembly (A) up to wall bracket (B) and hook upper plate over upper notches on bracket. (See Figure 10) Slide lower plate into lower notches on bracket. (See Figure 10) (Z) x 2 Figure 11 Visit the InFocus support site at www.infocus.com/support... -
Page 9: Installing Mount Covers
IMPORTANT ! : If projector mount is NOT installed in the same direction as shown, ROLL adjustment screws will be inaccessible! (See Figure 15) Mounting plate Roll adjustment screws (W) x 4 Figure 13 Figure 15 Visit the InFocus support site at www.infocus.com/support... - Page 10 PERSONAL INJURY OR DAMAGE TO EQUIPMENT. DO NOT substitute hardware. Use only the hardware provided by the manufacturer. Secure interface bracket (AA) to top of InFocus projector (not included) using hardware and instructions included with the interface bracket. Orient projector with attached interface bracket as shown.
-
Page 11: Pitch Adjustment
Remove two #8 x 1/2" Phillips pan tapping screws (U) and two #10 x 1" Phillips pan tapping screws (V) to free top cover (C) and expose pitch adjustment screw. (See Figure 21) Remove lower cover (D) from PRJ-WALLKIT-11. (See Figure 21) (V) x 2... -
Page 12: Cable Management (Optional)
NOTE: Remove mount covers from the mount following instructions in Removing Mount Covers section. Remove cable management covers (if necessary) from short throw projector arm. (See Figure 23) Visit the InFocus support site at www.infocus.com/support... -
Page 13: Security Screw Installation (Optional)
(See Figure 28) (V) x 2 (U) x 2 (M) x 2 (J) x 2 Figure 26 Return outer covers to the mount following instructions in Installing Mount Covers section. Figure 28 Visit the InFocus support site at www.infocus.com/support... - Page 14 Figure 32 steps. 10. Reinstall projector to mount. Refer to Projector Installation Remove one of four bolts from adapter plate. (See Figure 31) section for details. Visit the InFocus support site at www.infocus.com/support...
- Page 15 Installation Instructions PRJ-WALLKIT-11 Visit the InFocus support site at www.infocus.com/support...
- Page 16 PRJ-WALLKIT-11 Installation Instructions InFocus Corporation 13190 SW 68th Parkway, Ste 200 Portland, OR 97223 8800-002228 Rev00 ©2012 InFocus Corporation www.infocus.com 09/12...
