I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Single Stud Short Throw Wall Mount
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
SP-WALLKIT-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-WALLKIT-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for InFocus SP-WALLKIT-01

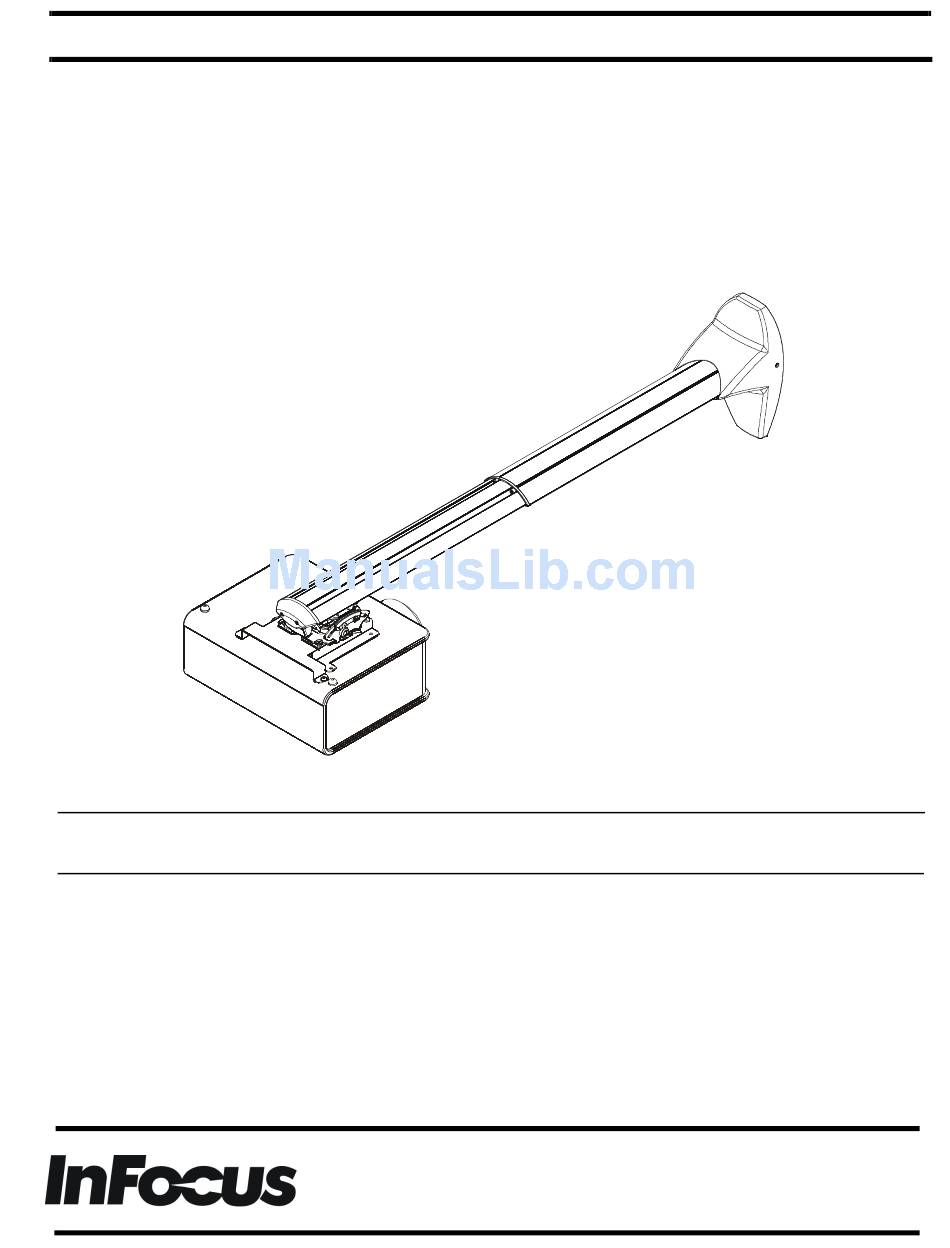

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Single Stud Short Throw Wall Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description SP-WALLKIT-01...
  • Page 2: Important Warnings And Cautions

    InFocus makes no representation of warranty, expressed or implied, regarding the information contained herein. InFocus assumes no...
  • Page 3 Hex-Head Wrench Security Wrench Llave de cabeza hexagonal Llave de seguridad Sechskantschlüssel Sicherheitsschlüssel Chave de cabeça sextavada Chave de segurança Chiave esagonale Chiave di sicurezza Zeskantsleutel Veiligheidssleutel Clé à tête hexagonale Clé de sécurité Visit the InFocus support site at www.infocus.com/support...
  • Page 4: Tools Required For Installation

    1/4-20 x 1 3/4" 1/4" 1/4-20 x 3/4" #10-24 x 3/8" (security) (security) W (3) X (3) M4 x 12mm T(1) S(2) U (1) 5/32 #8-32 x 3/4" V (1) [interface bracket] (security) (security) [projector mount] Visit the InFocus support site at www.infocus.com/support...
  • Page 5: Site Requirements

    Steel Stud (2 x 4 / 25ga minimum) Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural Members. [362, 125 18, C-Shape, S-Stud Section] Visit the InFocus support site at www.infocus.com/support...
  • Page 6 Install four 5/16 x 2 1/2" hex head lag screws (J) through (front view) wood stud four 5/16" washers (K), outer holes of mounting bracket (B) and into concrete anchors (H). (See Figure 2) Figure 3 Visit the InFocus support site at www.infocus.com/support...
  • Page 7 (See Figure Drill three 1/2" holes at marked locations in wall. (See Figure 5) Slide plastic cap on anchor (M) towards wall until flange of cap is flush with wall. (See Figure 7) Visit the InFocus support site at www.infocus.com/support...
  • Page 8: Side View

    13. Repeat steps 11 through 12 for remaining 2 mounting holes. Figure 10 WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Overtightening of mounting hardware can damage the steel studs. DO NOT overtighten mounting hardware! Visit the InFocus support site at www.infocus.com/support...
  • Page 9: Projector Mount Installation

    IMPORTANT ! : If projector mount is NOT installed in the same direction as shown in Figure 14, ROLL adjustment screws will be inaccessible! Figure 12 mounting plate roll adjustment screws (G) x 4 Figure 14 Visit the InFocus support site at www.infocus.com/support...
  • Page 10 Move locking lever to "locked" position. (See Figure 17) Secure interface bracket (U) to top of InFocus projector using three M4x12mm Phillips pan machine screws (W) and Insert key into lock and turn to secure projector to mount.
  • Page 11: Pitch Adjustment

    (See Figure 22) Tighten two bolts on either side of pitch adjustment screw. (See Figure 22) Tighten two 5/16-18 x 1/2" screws (C) on each side of mounting bracket. (See Figure 22) Figure 20 Visit the InFocus support site at www.infocus.com/support...
  • Page 12: Cable Management (Optional)

    (See Figure 24) Remove cable management covers (if necessary) from short throw projector arm. (See Figure 26) (F) x 2 (bottom view) small cable cover large cable cover projector Figure 26 Figure 24 Visit the InFocus support site at www.infocus.com/support...
  • Page 13 (not included). Route cables near front cover and wrap cable tie through slots on front cover and around cables. (See Figure 28) cable tie (not included) route through slots and Figure 29 around cables Figure 28 Visit the InFocus support site at www.infocus.com/support...
  • Page 14: Security Screw Installation (Optional)

    Remove two #8-32 x 3/4" Phillips pan machine screws (F). (See Figure 31) stop bracket Install two #8-32 x 3/4" button head security screws (S) into holes in mount cover. (See Figure 31) Figure 32 Visit the InFocus support site at www.infocus.com/support...
  • Page 15 It is important to replace adapter plate bolts ONE AT A TIME or adapter plate could fall from mount during installation! Figure 35 Reinstall projector to mount. Refer to Projector Installation Section for details. Visit the InFocus support site at www.infocus.com/support...
  • Page 16 SP-WALLKIT-01 Installation Instructions InFocus Corporation 13190 SW 68th Parkway, Ste 200 Portland, OR 97223 8802-002041 REV 00 2010 InFocus Corporation www.infocus.com 09/10...
