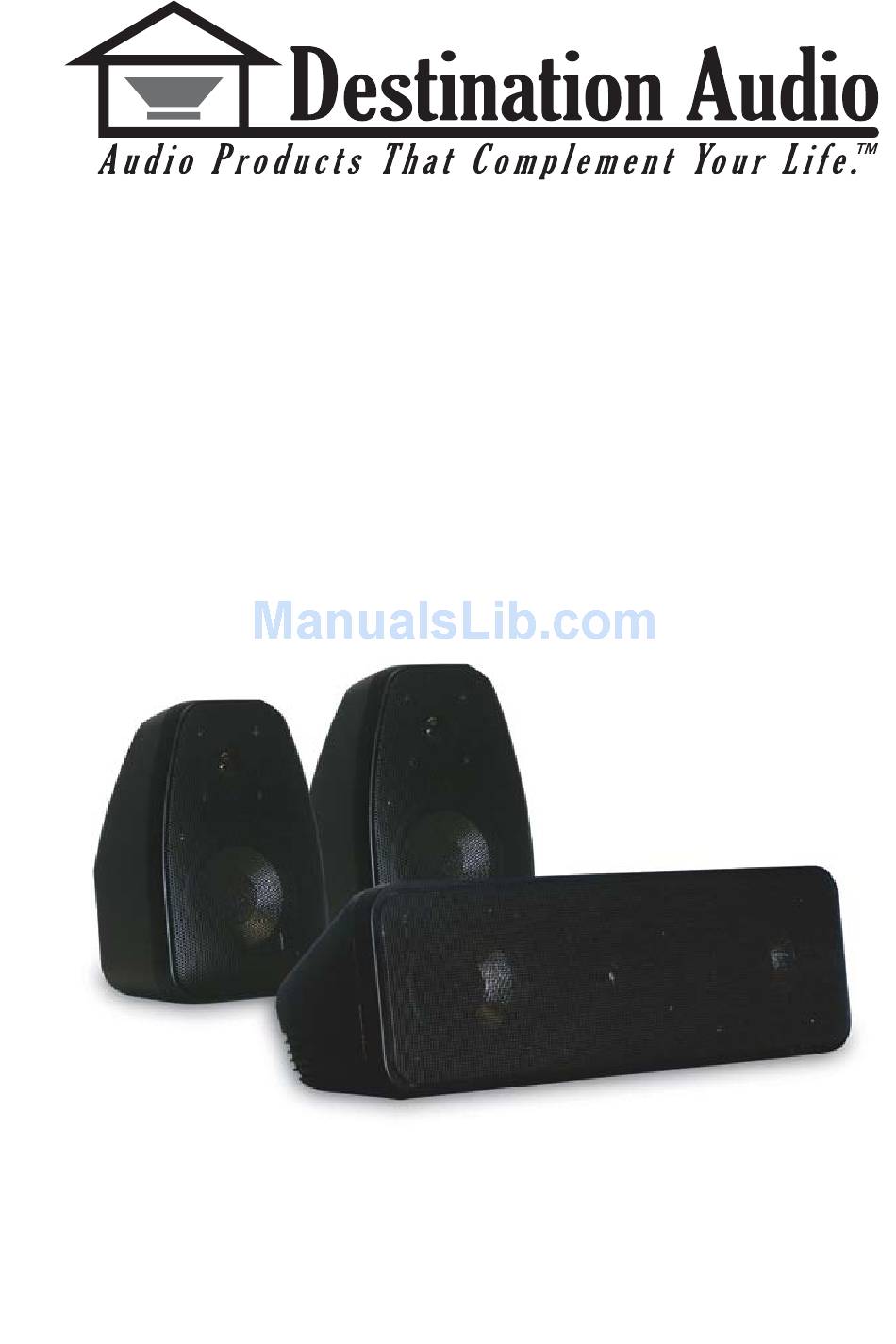

Destination Audio speaker design process. This manual contains setup recommendations and specifications for the CS100 & CS100C compact theater speakers. It is highly recommended you thoroughly read through the material contained in this manual before connecting your speakers.
Page 3
This device operates 900% faster than a fuse and self-resets when the volume level or amount of distortion is reduced. The CS100 & CS100C enclosures have a narrow profile to minimize the impact the cabinet has on the audio signal. The speakers virtually disappear, leaving only a wide, deep sound stage with pinpoint imaging typical of much higher priced speakers.
Attaching Mounting Bracket A mounting bracket and the necessary hardware are included with the CS100 to allow them to be mounted to a wall or speaker stand. Choose a suitable location for the speakers, and use four screws to mount each bracket to the surface of the chosen area.
Page 5
(i.e.: a triangle). The Destination Audio CS100 & CS100C compact theater speakers can also be hung on a wall or placed in bookshelves to better match your décor. If this is how your system will be arranged, keep in mind the spacing comments above for best performance.
Page 6
System Setup (continued) NOTE: There are several different surround formats available. Dolby Pro-Logic, Pro-Logic II, Dolby Digital and DTS generally have a 5-speaker plus subwoofer setup. Dolby Digital EX and DTS ES add an additional center rear speaker. Some newer receivers also offer the use of 7 or more effects channels. Please consult your audio/video professional to determine which surround format and system is best for you and how many speakers you will require.
Page 7
Attaching Speaker Wires The CS100 & CS100C use spring-loaded speaker wire terminals to firmly hold either a pin connector or bare speaker wire. To obtain a better connection, it is important to slightly tug on the wires after they have been secured in the terminals.
Warranty Your Destination Audio CS100 & CS100C speakers are covered by a limited warranty against defects in materials and workmanship for a period of five (5) years from the original date of purchase. This warranty is provided by the authorized Destination Audio dealer where the speaker was purchased. Warranty repair will be performed only when your purchase receipt is presented as proof of ownership and date of purchase.
