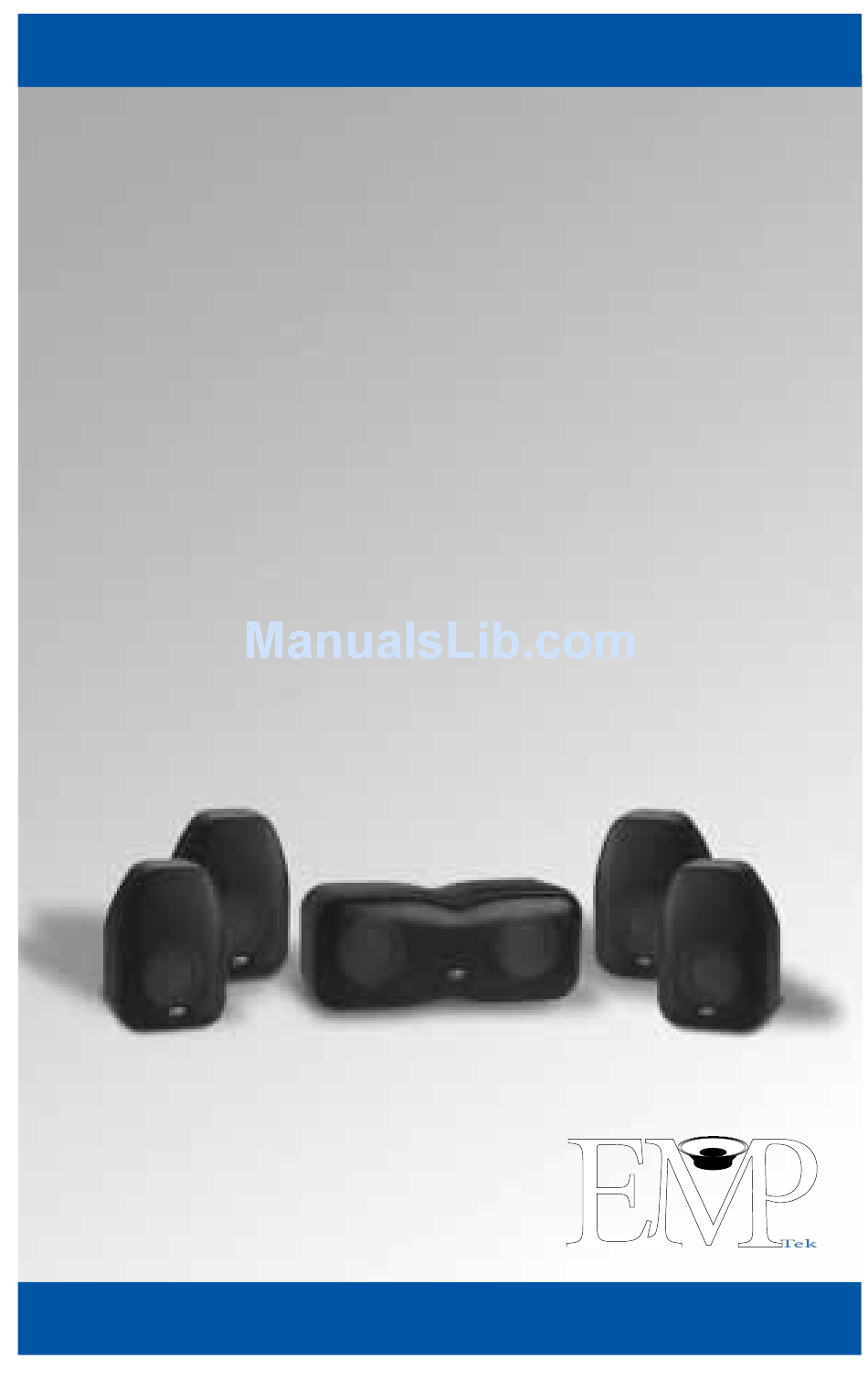

LOUDSPEAKERS
ECA4
Model
ECA44
Model
USER & INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECA4 and is the answer not in the manual?

Questions and answers

Related Manuals for EMP Tek ECA4

Summary of Contents for EMP Tek ECA4

  • Page 1 LOUDSPEAKERS ECA4 Model ECA44 Model USER & INSTALLATION MANUAL...

  • Page 2: Break-In Period

    Introduction Congratulations on your purchase of an EMP Tek ECA4 or ECA44 compact theater speaker! Your speaker is the result of many years of research and develop- ment dedicated to producing powerful, high-quality home audio systems. This manual contains setup recommendations and specifications for the ECA4 and ECA44 compact theater speakers.
  • Page 3 Features At the heart of the ECA4 and ECA44 compact theater loudspeakers are pro- prietary aluminum cone woofers and midrange drivers. The special material combines stiffness, low mass and self-damping properties in a manner that allows virtually uncolored presentation of program material. A powerful magnet, extended voice coil and bumped back plate give the bass/ midrange drivers high excursion capability.

  • Page 4: System Setup

    System Setup To extract the best possible sound from your speaker system, it is important to determine where the speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
  • Page 5 System Setup (continued) Front Main Speakers As a suggested starting point for the front left and right main speakers, try to place your speakers about 5 inches from the wall and 7 feet apart from each other. The distance from the listening position to each speaker should be close to the distance that separates the two main speakers (i.e.
  • Page 6 Attaching Speaker Wires When using a banana plug to attach speaker wires to the binding post terminals, remove the black and red plastic protective inserts from the terminals. To do this, loosen the binding nut from the terminal by turning the nut counter-clockwise until the nut is completely removed from the terminal.

  • Page 7: Specifications

    Specifications Model ECA44 ECA4 Frequency Response: 00Hz – 20Hz ±dB 00Hz – 20Hz ±dB Sensitivity: 88dB (2.8V@m) 85dB (2.8V@m) Recommended Power: 50-20 Watts 50-00 Watts Woofer: Dual 4" Aluminum Cone 4" Aluminum Cone Tweeter: " Fabric Dome " Fabric Dome Impedance:  Ohms 8 Ohms...

  • Page 8: Warranty

    If the product should prove defective within the warranty period, contact EMP Tek for a return authorization number prior to returning the product by prepaid delivery to EMP Tek, along with the original sales invoice or other proof of purchase, which establishes eligibility for warranty service. EMP Tek will, at its option, replace or repair the product free of charge and return the product by prepaid delivery.
  • Page 10 382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 991-1308 • Fax: (801) 543-3300 www.emptek.com It is EMP Tek policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2008 EMP Tek. All Rights Reserved.

This manual is also suitable for:

Eca44
