EMP Tek E41-B Owner's Manual

Bookshelf speakers
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
BOOKSHELF SPEAKERS
E41-B
Model
BOOKSHELF SPEAKERS
OW N ER'S M A N UA L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E41-B and is the answer not in the manual?

Questions and answers

Related Manuals for EMP Tek E41-B

Summary of Contents for EMP Tek E41-B

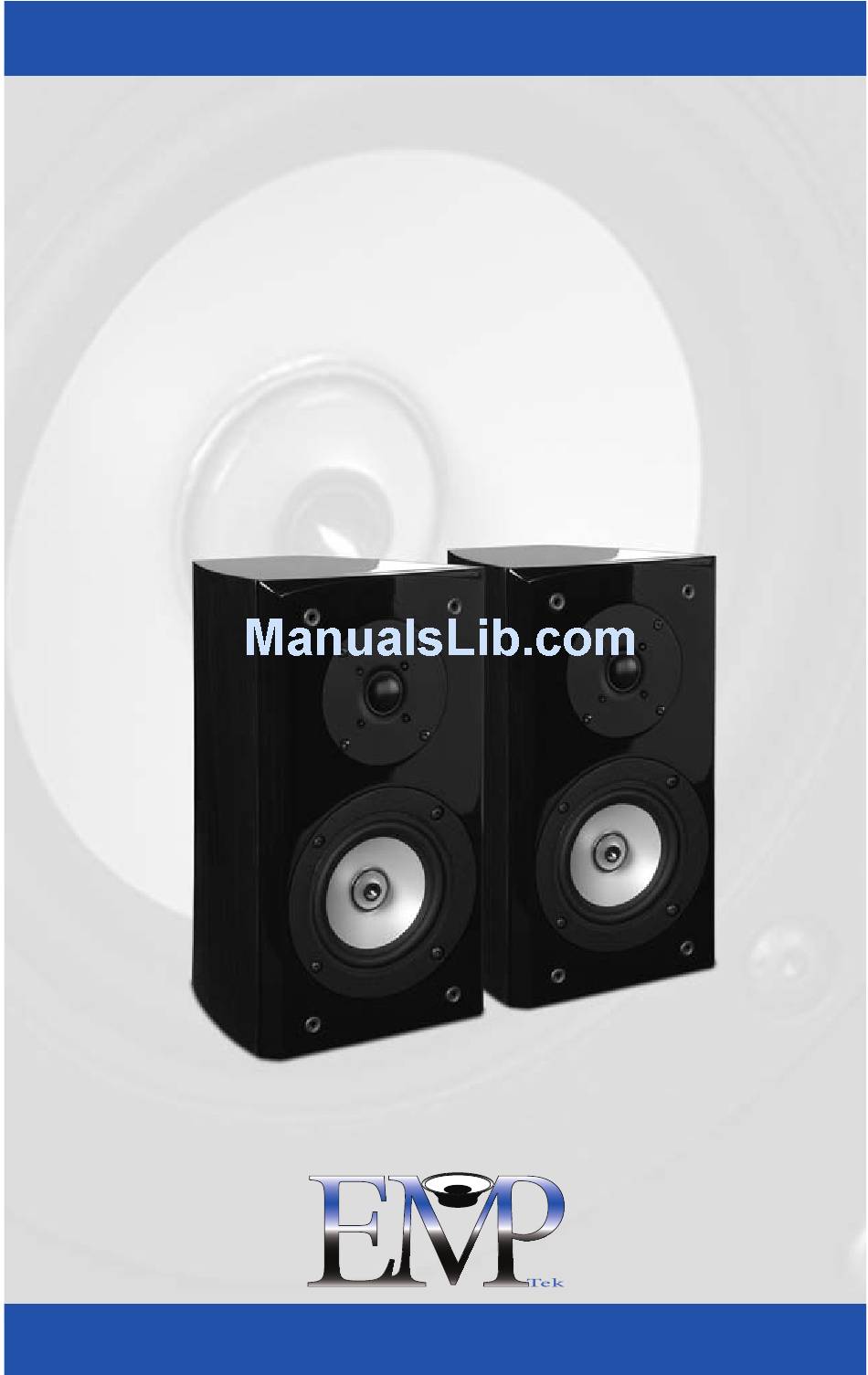

  • Page 1 BOOKSHELF SPEAKERS E41-B Model BOOKSHELF SPEAKERS OW N ER’S M A N UA L...

  • Page 3: Break-In Period

    Introduction Congratulations on your purchase of E41-B bookshelf speakers! Your speakers are the result of many years of research and development dedicated to producing high quality products for home audio and audio/video systems. This manual contains features, setup recommendations and specifications for the E41-B bookshelf speakers.
  • Page 4 Features The E41-B bookshelf speaker is the perfect speaker for delivering wide-range perfor- mance with outstanding detail and accuracy. This speaker features beryllium cone woofers and midrange drivers. The beryllium cone material combines stiffness, low mass and self damping properties in a manner that allows virtually uncolored presenta- tion of program material.
  • Page 5 Room Setup Suggestions In order to obtain the best possible sound from your speaker system, it is important to determine where the speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
  • Page 6 Room Setup Suggestions (continued) IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal being sent to the subwoofer be a non-boosted or “flat” signal. To be sure of this, check the settings on your receiver or processor to make sure any “bass boost”, “super bass” or “loudness”...

  • Page 7: Specifications

    Specifications Model E41-B System Type: Bookshelf Frequency Response: 70Hz-20kHz (±3dB) Sensitivity: 86dB (2.83V @ 1 Meter) Recommended Power: 30-100 Watts Drive Units: (1) 4” (102mm) Beryllium Cone Woofer (1) 1” (25mm) Silk Dome Tweeter Crossover Frequency: 3,000 Hz Crossover Slope: 12dB/Octave Impedance: 8 Ohms...

  • Page 8: Warranty

    382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 991-1308 • Fax: (801) 543-3300 www.emptek.com It is EMP Tek policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2010 EMP Tek, LLC. All Rights Reserved. 8/17/2010...
