Summary of Contents for EMP Tek IMPRESSION SERIES

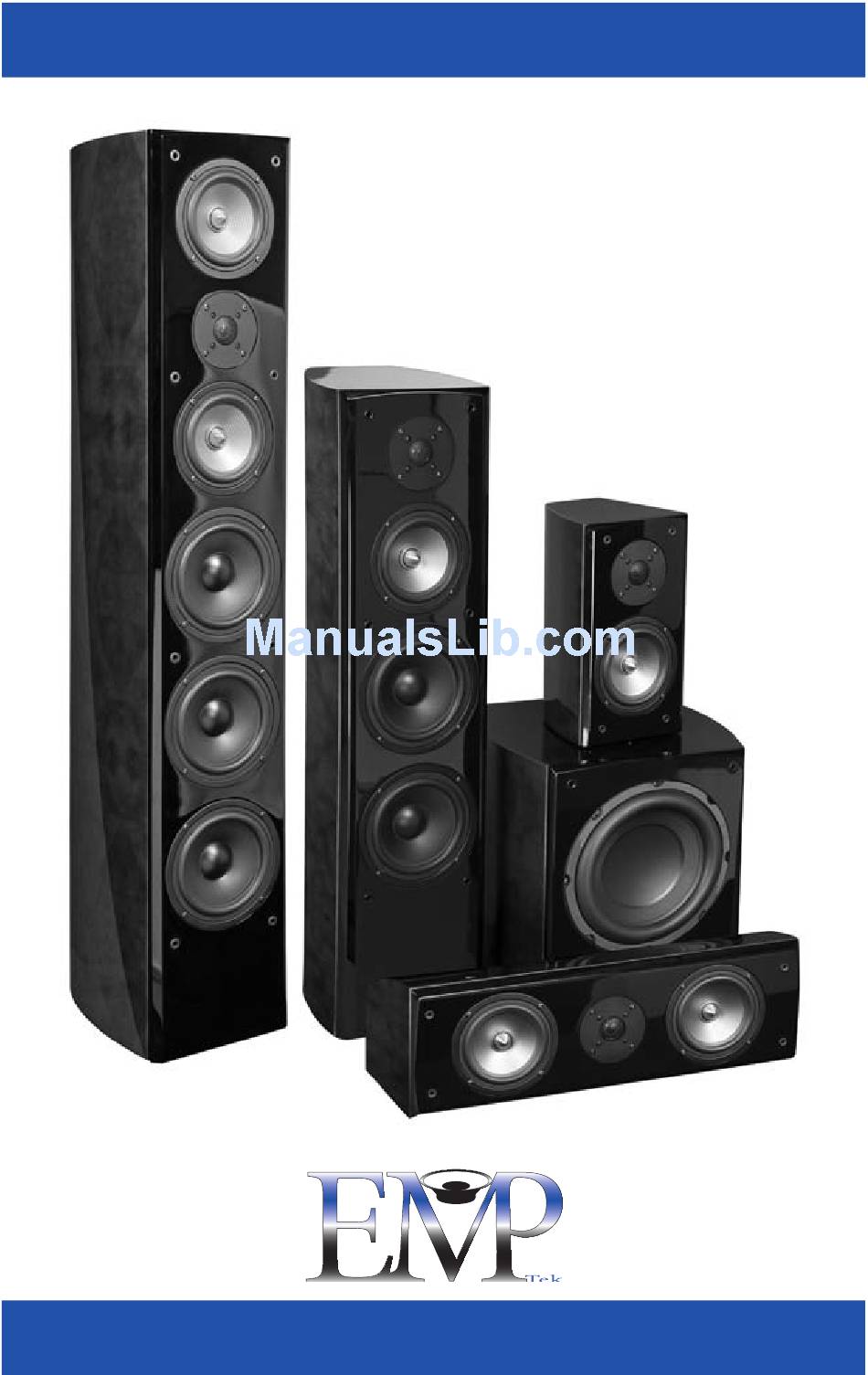

- Page 1 FR E E STA N DI NG SPE A K ER S IMPRESSION SERIES OW N ER’S M A N UA L...
-
Page 3: Break-In Period
Introduction Congratulations on your purchase of Impression Series freestanding speakers! Your speakers are the result of many years of research and development dedicated to producing high quality products for home audio and audio/video systems. This manual contains features, setup recommendations and specifications for the Impression Series freestanding speakers. -
Page 4: Care And Cleaning
Care and Cleaning To maintain speaker appearance, we recommend wiping them down with a clean damp soft cloth. To clean dust from the grille cloth, use a vacuum with a brush attachment. Features The Impression Series speakers feature poly-matrix cone bass drivers and aluminized poly-matrix cone midrange drivers. - Page 5 Room Setup Suggestions In order to obtain the best possible sound from your speaker system, it is important to determine where the speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
- Page 6 Room Setup Suggestions (continued) IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal being sent to the subwoofer be a non-boosted or “flat” signal. To be sure of this, check the settings on your receiver or processor to make sure any “bass boost”, “super bass” or “loudness”...
- Page 7 Subwoofer Safety Instructions The lightning flash with the arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product enclosure that may be of sufficient magnitude to constitute a risk of shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
- Page 8 Subwoofer Amplifier Controls and Setup (continued) 2. Volume/Gain Control: The volume/level control should be at the minimum setting (all the way counter-clockwise) before plugging the subwoofer into an AC wall socket. Once plugged in, turn the level control up one quarter of a turn (9 o’clock position) for an initial setting.
- Page 9 Subwoofer Amplifier Controls and Setup (continued) 10. Fuse Access: This is the power fuse access. WARNING! In the event the fuse must be replaced, the replacement fuse must match exactly the original fuse value. If the replacement fuse is not of the same value, damage to the Subwoofer Amplifier may result.
- Page 10 Tower Speaker Outrigger Installation Use these attractive, tower speaker outriggers for the Impression Series tower speakers to create a wider support base for the cabinet. This attachment makes your speakers more stable, ideal when placing them on a thickly carpeted floor. Package contents include: 1 each small outriggers for back of cabinet 1 each large outriggers for front of cabinet...
-
Page 11: Specifications
Specifications E55Ti E5Ti E5Ci Model Tower Tower Center Channel Frequency Response: 40Hz – 20kHz 50Hz – 20kHz 60Hz – 20kHz Sensitivity: 88dB 87dB 87dB Recommended Power: 50-200 Watts 50-150 Watts 50-120 Watts Woofer: (3) 6½” (165mm) (2) 6½” (165mm) (2) 5¼” (133mm) Polypropylene Polypropylene Aluminized Poly-matrix... - Page 12 Specifications (continued) E5Bi ES10i Model Bookshelf Subwoofer Frequency Response: 60Hz – 20kHz 40Hz – 180Hz Sensitivity: 85dB Recommended Power: 50-100 Watts 100 Watts (110/220V RMS (Amplifier Power) Woofer: (1) 5¼” (133mm) (1) 10” (254mm) Aluminized Poly-matrix Poly-matrix Cone Tweeter: (1) 1” (25mm) Fabric Dome Impedance: 8 Ohms...
- Page 13 Make certain there is an audio signal signal from receiver or processor. from receiver or processor. Amplifier fuse might be blown. Replace fuse (if fuse is not readily accessible, consult with EMP Tek for more information. Performance Crossover frequency is not Adjust the crossover frequency by is less than adjusted correctly.
-
Page 14: Warranty
EMP Tek any other liability in connection with the sale of the product. EMP Tek expressly disclaims liability for any incidental and consequential damages caused by the product or the result of failure of this product. - Page 16 382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 991-1308 • Fax: (801) 543-3300 www.emptek.com It is EMP Tek policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2010 EMP Tek, LLC. All Rights Reserved.
