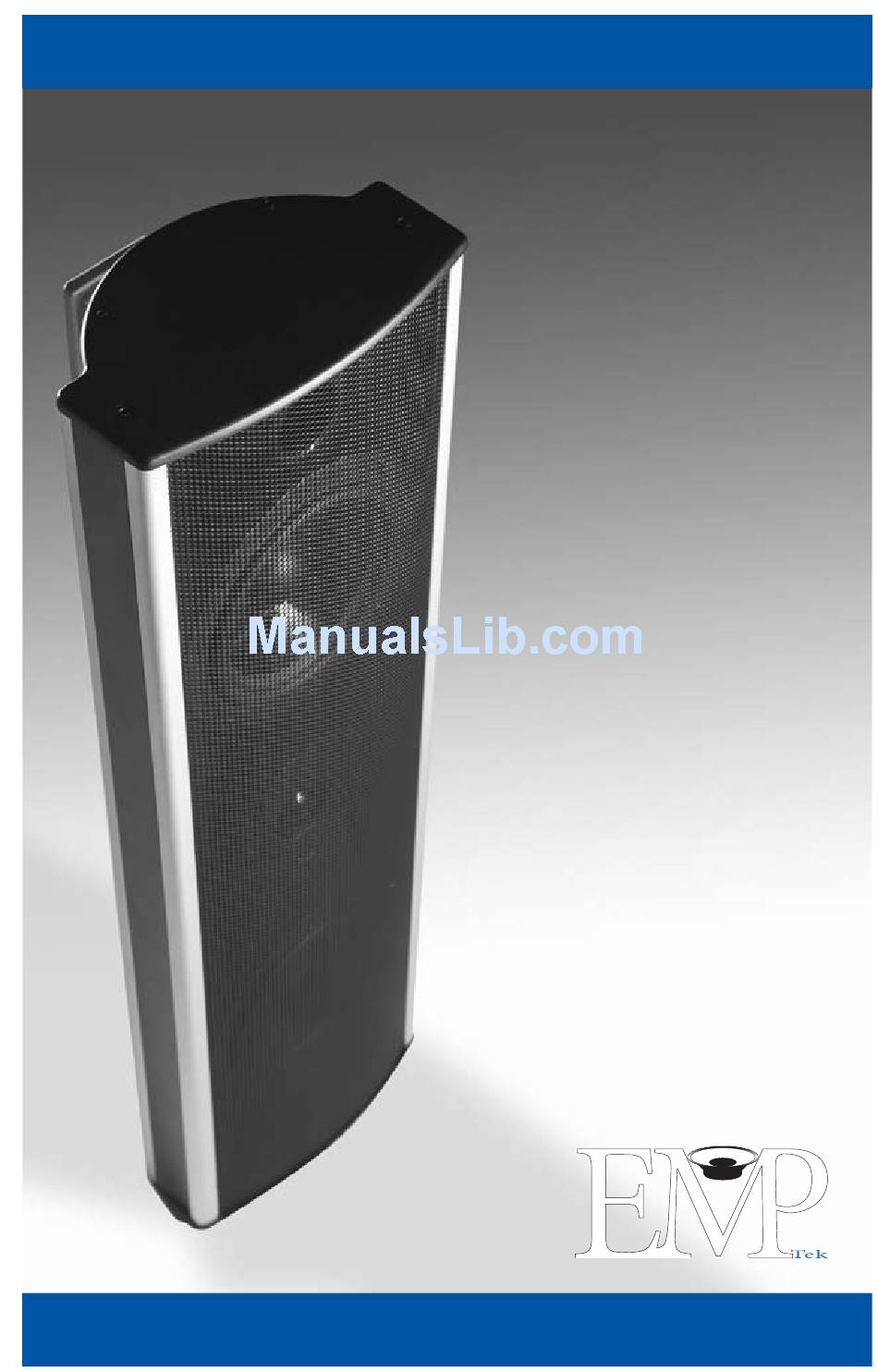

- Page 1 ON-WALL SPEAKERS EW25 Model EW30 Model EW35 Model USER & INSTALLATION MANUAL...
-
Page 2: Break-In Period
Introduction Congratulations on your purchase of an EMP Tek EW25, 30 or 35 on-wall Speaker! Your speaker is the result of many years of research and development dedicated to producing powerful, high-quality home audio systems. This manual contains setup recommendations and specifications for the EW25, EW30 and EW35 on-wall speakers. -
Page 3: Care And Cleaning
Care and Cleaning To maintain the speaker’s high quality appearance, it is recommended to regularly use a dry or slightly-damp soft cloth to keep the exterior free from dust or dirt. To clean dust from the grille, use a vacuum with a brush attachment. Features The EW series was designed to be mounted directly onto a wall, and coordinate with flat panel displays. - Page 4 System Setup The EW series speaker is designed to sound best when placed with its back against a wall, using the supplied mounting brackets. These brackets allow the speaker to pivot or be angled towards the listening position, which may provide a more spacious and realistic sound stage.
- Page 5 Installation – Mounting Brackets upper bracket located at the other end of the DMT. Again, pay close attention to mark the correct mounting holes for the model you’re installing. NOTE: Ultimately, the wall location where you’ll be installing your EW series speaker will have a stud or other framing member very close by.
-
Page 6: Mounting Speakers
Attaching Speaker Wires Remove the round terminal nuts from the terminal posts on the back of the speaker. Remove /4” to 3/8” of the insulation from the end of each speaker wire. Insert the ends of the speaker wires into each terminal making sure to observe proper polarity (typically, the positive wire is red, and the negative wire is black). - Page 7 Changing The Grille Your EW series on-wall speaker comes with a black grille, but an optional silver grille is included. Select the grille which best matches your décor. If you wish to change the grille, follow these steps: To remove the grille: .) Use the smaller hex key tool to remove the four hex bolts from both end caps of the speaker;...
-
Page 8: Specifications
Specifications Model EW25 EW30 EW35 Frequency 48Hz – 20kHz ±3dB 45Hz – 20kHz ±3dB 42Hz – 20kHz ±3dB Response: Sensitivity: 86dB (2.83V@m) 86dB (2.83V@m) 86dB (2.83V@m) Power 50-200 Watts 50-200 Watts 50-200 Watts Handling: Woofer: (2) 5½” Pulp Mica (2) 5½” Pulp Mica (2) 5½”... -
Page 9: Warranty
5 years from the original date of purchase. This warranty is provided by the authorized EMP Tek dealer where the speaker was purchased. Warranty repair will be performed only when your purchase receipt is presented as proof of ownership and date of purchase. - Page 10 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.emptek.net It is EMP Tek policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2007 EMP Tek. All Rights Reserved.
