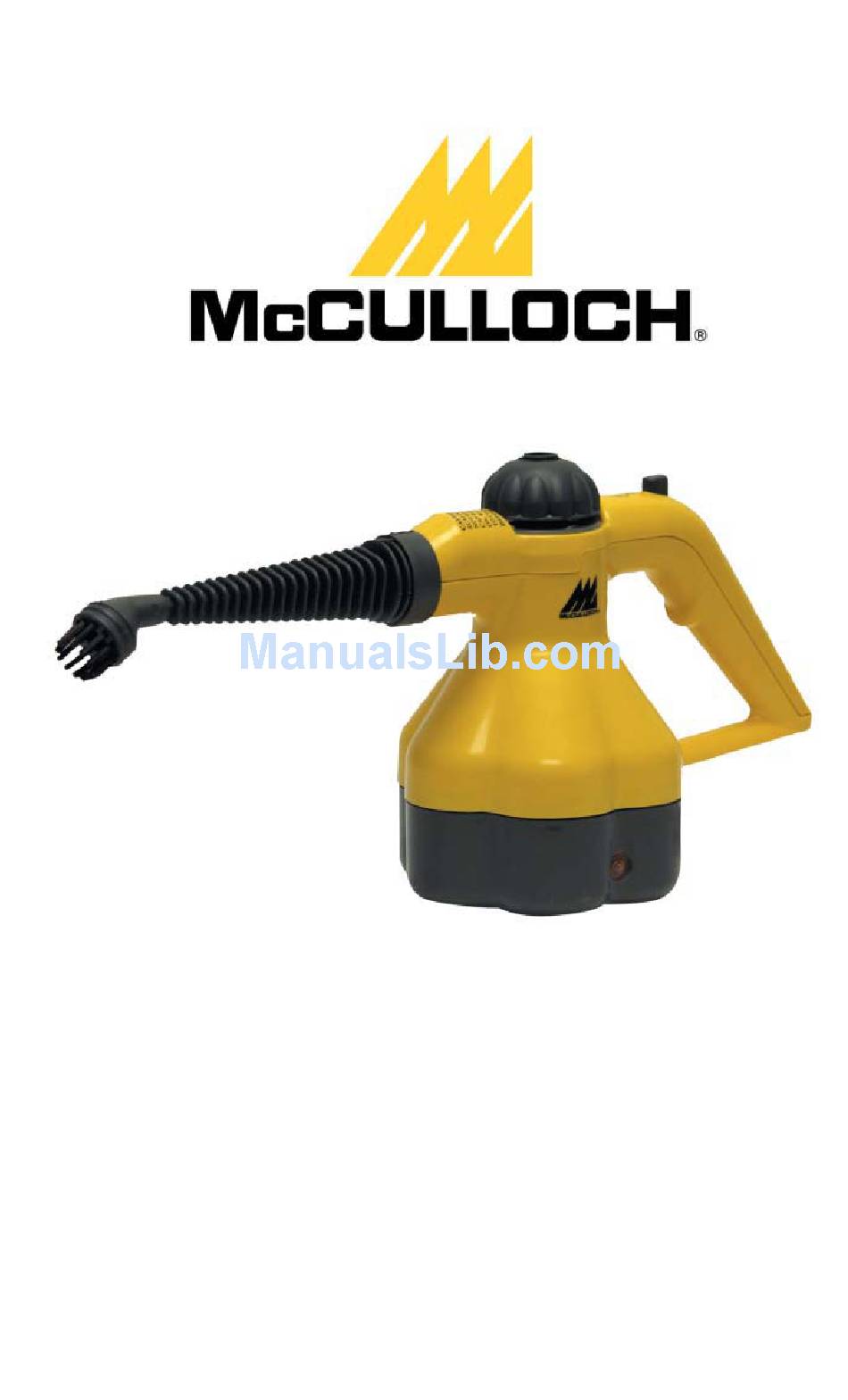

- Page 1 Handheld Steam Cleaner Instruction Manual Model MC1220...
-
Page 2: Dear Customer
Thank you for purchasing the McCulloch Handheld Steam Cleaner. This product, like all the products in the McCulloch line, is designed to save you cleaning time. It will also save you money because you will eliminate the need to use harsh chemicals in the cleaning process. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read this instruction manual before using the appliance. Always follow basic safety precautions, including the following: 1. Only use accessories recommended by the manufacturer. 2. To protect against risk of electrical shock, do not immerse the appli- ance in water or other liquid. - Page 4 Getting to Know Your MC1220 The following features and accessories should have come with your Handheld Steam Cleaner . If any accessories are missing please see the Service Call section of this manual. Figure 1 Safety Cap Steam Button Carrying Handle...
- Page 5 Learning About Your Steamer The Safety Cap (1) provides access to the Boiler for water filling. It also contains a pressure relief mechanism for safety. The Steam Button (2) operates a valve which controls the release of steam. The Carrying Handle (3) allows for one-handed operation. The Steam Ready Light (4) is illuminated when the Boiler is heating and goes out when the steam is ready.
-
Page 6: Assembly Instructions
Assembly Instructions Attaching the Steam Jet Nozzle or Large Steam Nozzle To use your Handheld Steam Cleaner you need to attach the Steam Jet Nozzle or Large Steam Nozzle to the main unit. The following proce- dure works for both. (Refer to Figure 3). Rotate the attachment so that the tabs (B) align with the slots on the main unit. - Page 7 Assembly Instructions (cont) Attaching the Utility Brushes, BBQ Grill Brush and Angled Nozzle The Utility Brushes, BBQ Grill Brush and Angled Nozzle all attach to the Steam Jet Nozzle. Use the following procedure for these attachments. (Refer to Figure 5). Grasp the handle in such a way so you can not accidentally push the Steam Button.
- Page 8 Assembly Instructions (cont.) Attaching the Squeegee and Large Utility Brush The Squeegee and Large Utility Brush both attach to the Large Steam Nozzle. Use the fol- lowing procedure for these attachments. (Refer to Figure 6). Keeping the top of the Squeegee (or Large Utility Brush) at an angle, slide the Attachment Fittings (A) on the Large Steam Nozzle over the Attachment Hooks...
- Page 9 Water Filling Instructions Place the unit on a level surface. Unplug the Power Cord. If the steam cleaner might still be hot from a previous use, complete steps 3-5 be- low. Otherwise proceed to step 6. Press the Steam Button continuously until all steam is removed from the unit. Continue to press the Steam Button while cautiously unscrewing the Safety Cap.
-
Page 10: Service Calls
Operating the Handheld Steam Cleaner Plug the power cord into a convenient receptacle. The Steam Ready Light will immediately illuminate. (Note: The Steam Ready Light is illuminated when the Boiler is heating. The unit has no power switch.) Warning: This appliance has a grounded (3 prong) plug. Use only in prop- erly installed 3 pronged outlets. -
Page 11: Specifications
Specifications Input Voltage 120 VAC Input Frequency 60 Hz Output Power 900 W Water Capacity 6 oz 180 ml Troubleshooting Guide PROBLEM CAUSE SOLUTION Unit fails to heat Steamer not plugged in Plug into electrical outlet. Reset the circuit breaker Household Circuit or replace the fuse. - Page 12 Top Innovations, Inc. 400 NW Platte Valley Drive Riverside, Missouri 64150 www.topinnovations.com Toll Free: 1-800-711-6617 Printed in China...
